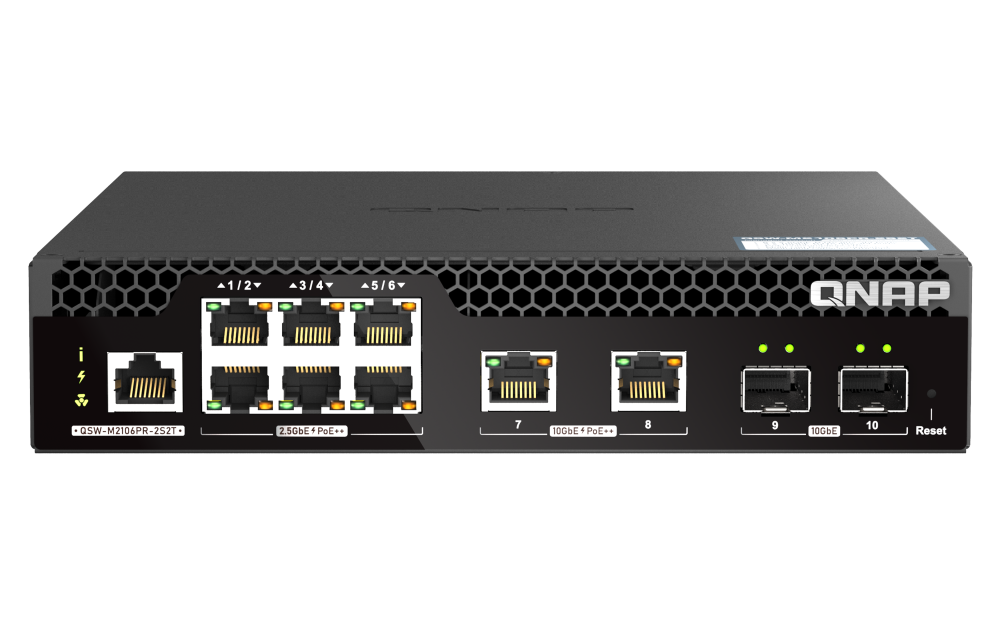

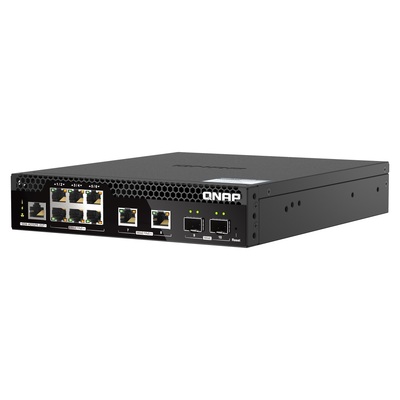

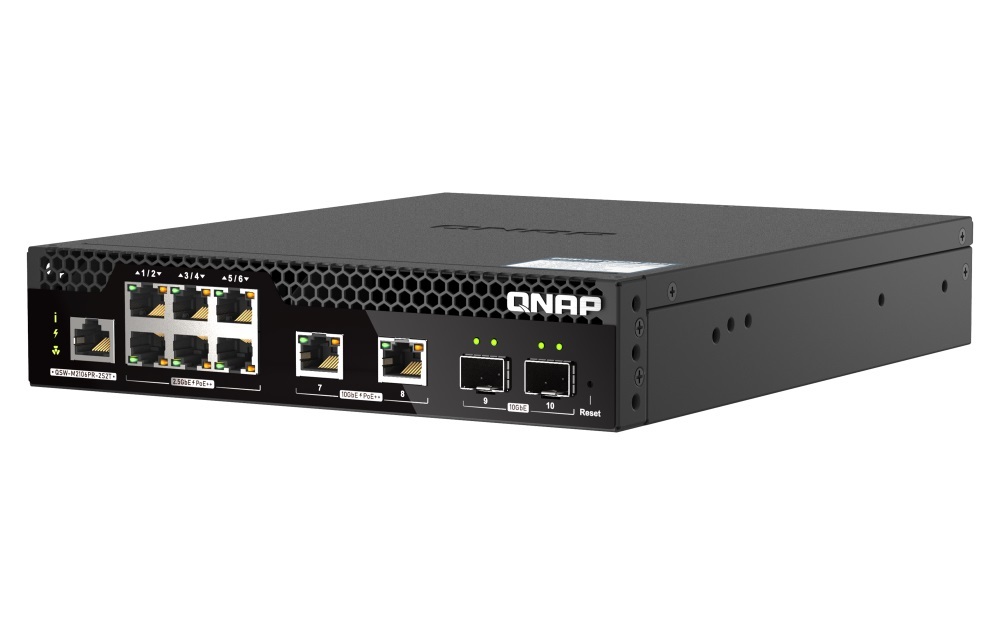

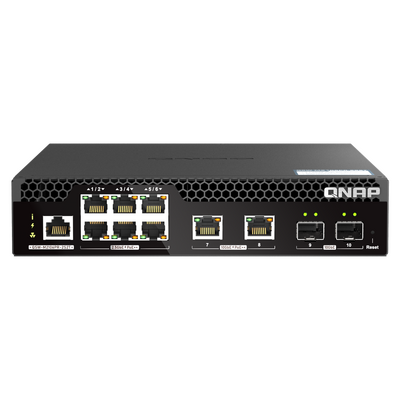

QNAP QSW-M2106PR-2S2T 10-Port 10GbE and 2.5GbE PoE++ Managed Switch

A half-width rackmount Layer 2 switch with eight up-to-90W PoE++ RJ45 ports, two 10GbE SFP+ ports and a 310W total PoE power budget.

Network ports10

PoE++ ports8 × up to 90W

PoE budget310W total

Switching capacity110Gbps

High-speed data and PoE++ power delivery

The port layout includes six 2.5GbE RJ45 ports, two multi-speed 10GbE RJ45 ports and two 10GbE SFP+ ports. Ports 18 support IEEE 802.3bt PoE++ with up to 90W per port, subject to the 310W total PoE budget.

Management, performance and deployment

The two 10GbE RJ45 ports support 10G, 5G, 2.5G, 1G and 100M.
The two SFP+ ports are backward compatible with 1GbE SFP.
Layer 2 functions include LACP, VLAN, ACL and LLDP, with QSS web management.
A half-width chassis supports side-by-side 1U installation when the optional SP-EAR-QSW2FOR1-01 rackmount kit is used.

PoE and rack planning

Up to 90W is a per-port maximum, while the total available PoE power is 310W across all connected devices. The optional SP-EAR-QSW2FOR1-01 kit is required for side-by-side installation of two compatible half-width switches.

Frequently asked questions

Answers below are based only on the supplied product information for QSW-M2106PR-2S2T.

How many ports does the QSW-M2106PR-2S2T provide?

It provides 10 network ports: six 2.5GbE RJ45 ports, two 10GbE RJ45 ports and two 10GbE SFP+ ports.

How many ports support PoE++?

Eight RJ45 ports support IEEE 802.3bt PoE++ with up to 90W per port.

Can all eight PoE++ ports deliver 90W at the same time?

Each supported port has an up-to-90W rating, but the combined PoE load must remain within the switchs 310W total PoE power budget.

Which speeds do the two 10GbE RJ45 ports support?

The supplied specifications list 10G, 5G, 2.5G, 1G and 100M support on the two 10GbE BASE-T ports.

What is required to mount two half-width switches side by side?

The supplied description states that the optional SP-EAR-QSW2FOR1-01 rackmount kit is required for side-by-side installation in one 1U rack space.

What warranty applies to the QSW-M2106PR-2S2T?

The supplied specifications state a 2-year QNAP manufacturer warranty.

(QSW-M2106PR-2S2T)

Features and highlights

QNAP QSW-M2106PR-2S2T 10-Port 10GbE and 2.5GbE PoE++ Managed Switch

Eight PoE++ RJ45 ports

Six 2.5GbE and two 10GbE RJ45 ports support up to 90W per port.

310W PoE power budget

Plan the combined power demand of all connected powered devices within the total budget.

Dual 10GbE SFP+ uplinks

Supports 10GbE fibre or DAC connectivity and backward compatibility with 1GbE SFP.

Half-width rackmount design

Two compatible half-width switches can share 1U with the optional rack kit.

Additional supplied highlights

110Gbps switching capacity and 55Gbps total non-blocking throughput.
16K MAC address table and support for 9K jumbo frames.
QSS web management with Layer 2 controls and PoE status information.
Two-year QNAP manufacturer warranty.

Technical specifications

Specifications below are organised from the supplied product information for QSW-M2106PR-2S2T.

Specification	Details
Product and Management
Model	QSW-M2106PR-2S2T
Management Type	Web Managed
Management Interface	Web
Console	RJ45
Number of Ports	10
Network Interfaces
10GbE SFP+	2 ports Backward compatible with 1GbE SFP.
10GbE BASE-T (RJ45)	2 ports Supports 10G, 5G, 2.5G, 1G and 100M speeds.
2.5GbE (RJ45)	6 ports
PoE
Total PoE Ports	8
PoE++ PSE	Ports 18, IEEE 802.3bt, up to 90W per port
PoE Power Output	Ports 18, up to 90W per port
Total PoE Power Budget	310W
Switching Performance
MAC Address Table	16K
Total Non-Blocking Throughput	55Gbps
Switching Capacity	110Gbps
Jumbo Frames	9K
Layer 2 and Management Features
Layer 2 Functions	LACP, VLAN, ACL and LLDP
QSS Functions	Overview dashboard, port management, settings guide, status chart referencing, online firmware check and update
Supported Standards
Ethernet and Networking	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G fibre IEEE 802.3x full-duplex flow control
Layer 2 Standards	IEEE 802.1Q VLAN tagging IEEE 802.3ad LACP IEEE 802.1AB LLDP
Power over Ethernet	IEEE 802.3af/at/bt PoE
Power and Cooling
Power Supply	Internal power supply unit
Input Power Type	AC
Input Voltage Range	100240VAC, 50/60Hz
Maximum Power Consumption	350W
Fan	2 × PWM VAPO-bearing fans
Physical Specifications
Form Factor	Half-width rackmount
Dimensions (H × W × D)	43.3 × 207 × 248.8mm
Net Weight	1.77kg
Gross Weight	2.54kg
LED Indicators	Per port: speed, link and activity Per system: status, PoE and fan
Buttons	Reset button
Operating Environment
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	595%, non-condensing
Compliance and Warranty
Certifications	CE, FCC, VCCI and BSMI
Electromagnetic Compliance	Class A
Warranty	2 years

Note: Up to 90W is specified per PoE++ port, subject to the 310W total PoE power budget.

Note: The optional SP-EAR-QSW2FOR1-01 kit is required to mount two compatible half-width switches side by side.
