Two 10GbE SFP+ ports
Supports fibre or DAC connections and backward compatibility with 1GbE SFP.

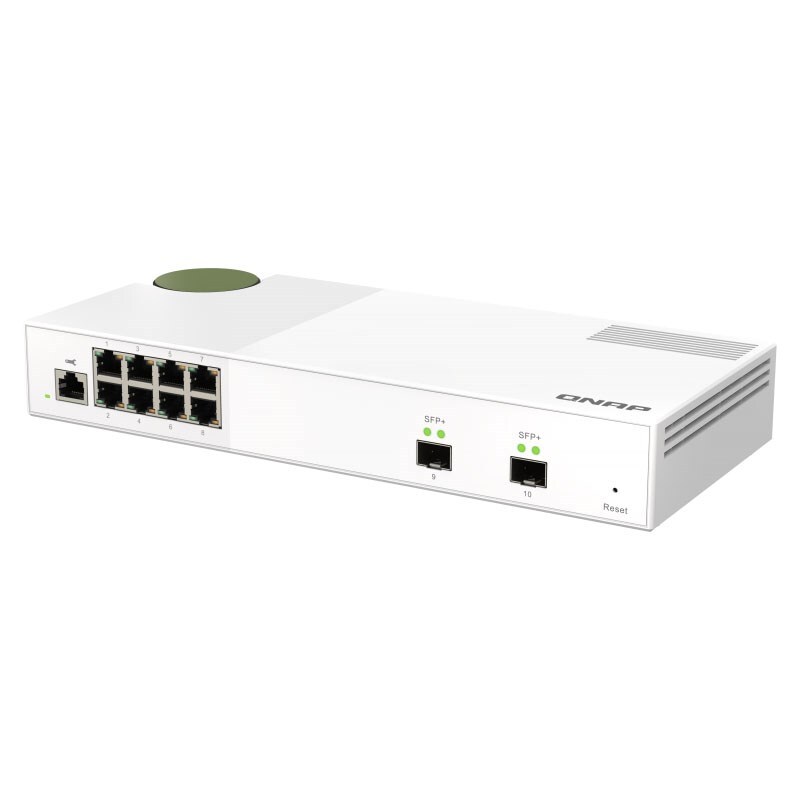

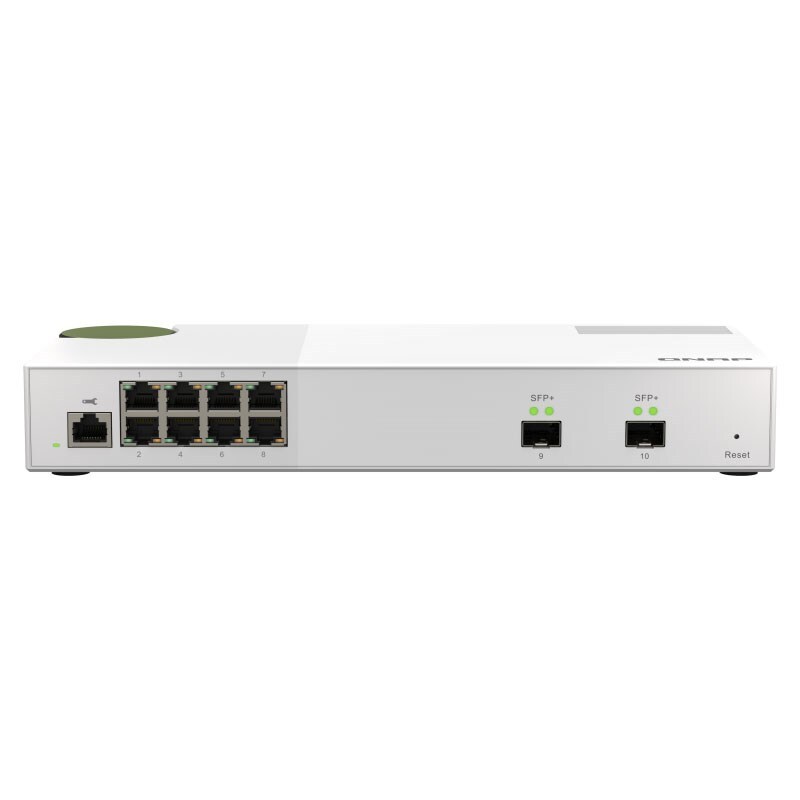

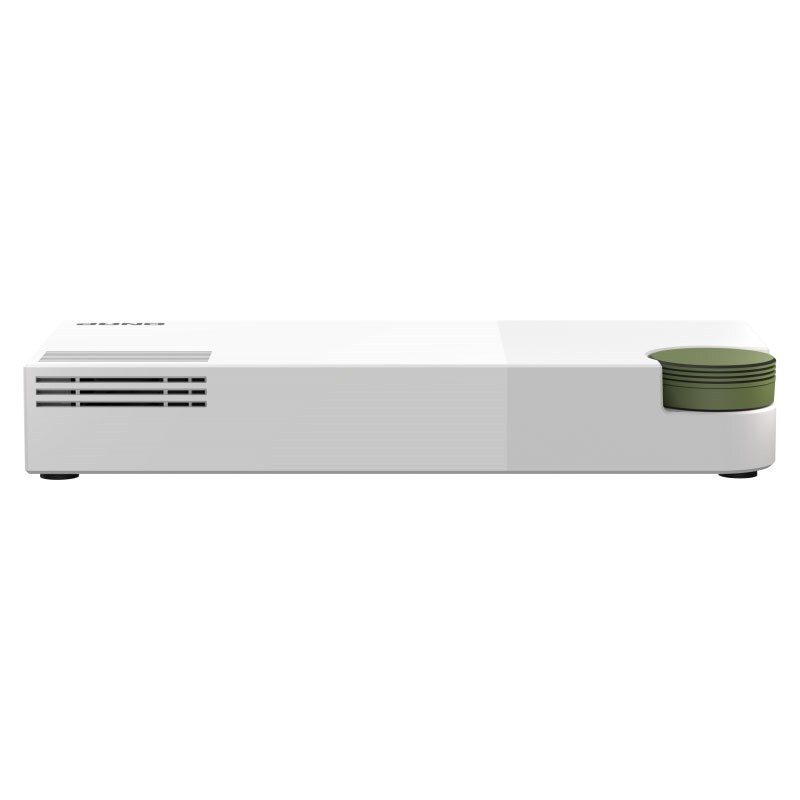

QNAP QSW-M2108-2S 8-Port 2.5GbE & 2-Port 10GbE SFP+ Managed Desktop Switch
Model # QSW-M2108-2S
-
SKU: QSW-M2108-2S
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP Layer 2 web managed switch
QNAP QSW-M2108-2S 10-Port 10GbE SFP+ and 2.5GbE Managed Switch
A desktop managed switch with two 10GbE SFP+ ports, eight 2.5GbE RJ45 ports and QNAP Switch System controls for traffic, segmentation and monitoring.
Network ports10
10GbE SFP+2 ports
2.5GbE RJ458 ports
Switching capacity80Gbps
Hybrid 10GbE and 2.5GbE network connectivity
The two SFP+ ports provide 10GbE fibre or DAC connectivity and are backward compatible with 1GbE SFP. Eight 2.5GbE RJ45 ports support Multi-Gigabit access for connected devices.
Management, performance and deployment
- QSS provides a web dashboard, graphical port management, guided configuration and online updates.
- The supplied management functions include LACP, VLAN, ACL, LLDP, QoS, IGMP Snooping and RSTP.
- The supplied performance values are 80Gbps switching capacity and 40Gbps total non-blocking throughput.
- Maximum power consumption is listed as 23W, with one PWM double ball bearing fan.
SFP+ deployment
The supplied information identifies the port interfaces but does not list SFP/SFP+ modules, DAC cables or Ethernet cables as included. Confirm the required optics or cabling for the intended connections.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M2108-2S.
What is the QNAP QSW-M2108-2S?
It is a 10-port Layer 2 web managed desktop switch with two 10GbE SFP+ ports and eight 2.5GbE RJ45 ports.
Are the SFP+ ports backward compatible with 1GbE?
Yes. The supplied description states that the 10GbE SFP+ ports are backward compatible with 1GbE SFP connections.
How many 2.5GbE access ports are provided?
The switch provides eight 2.5GbE RJ45 ports.
Which management functions are supplied?
The supplied description lists QSS management with LACP, VLAN, ACL, LLDP, QoS, IGMP Snooping and Rapid Spanning Tree Protocol.
What switching performance is specified?
The supplied specifications list 80Gbps switching capacity and 40Gbps total non-blocking throughput.
What warranty applies to the QSW-M2108-2S?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M2108-2S)
Features and highlights
QNAP QSW-M2108-2S 10-Port 10GbE SFP+ and 2.5GbE Managed Switch
Eight 2.5GbE RJ45 ports
Provides Multi-Gigabit access connectivity for compatible devices.
QSS web interface
Graphical management supports setup, monitoring and firmware maintenance.
Layer 2 traffic controls
Supplied functions include LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP and RSTP.
Additional supplied highlights
- 80Gbps switching capacity and 40Gbps non-blocking throughput.
- 16K MAC address table and support for 9K jumbo frames.
- Desktop form factor with an RJ45 console and reset button.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M2108-2S.
| Specification | Details |
|---|---|
| Product Details | |
| Model | QSW-M2108-2S |
| Management Type | Web Managed |
| Form Factor | Desktop |
| Number of Ports | 10 |
| Network Interfaces | |
| 10GbE SFP+ | 2 |
| 2.5GbE RJ45 | 8 |
| Console | RJ45 |
| Management Interface | Web |
| Switching Performance | |
| Switching Capacity | 80Gbps |
| Total Non-Blocking Throughput | 40Gbps |
| MAC Address Table | 16K |
| Jumbo Frames | 9K |
| Supported Standards | |
| Ethernet Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fibre |
| Flow Control | IEEE 802.3x Full-Duplex Flow Control |
| VLAN | IEEE 802.1Q VLAN Tagging |
| Rapid Spanning Tree | IEEE 802.1w RSTP |
| Link Aggregation | IEEE 802.3ad LACP |
| Link Layer Discovery | IEEE 802.1AB LLDP |
| Class of Service | IEEE 802.1p |
| Power and Cooling | |
| Power Supply | Adapter |
| Input Power Type | DC |
| Input Voltage | 12V |
| Maximum Power Consumption | 23W |
| Fan | PWM double ball bearing fan × 1 |
| Sound Level | <21 dB(A) |
| Physical Specifications | |
| Dimensions (H × W × D) | 42.5 × 290 × 127mm |
| Net Weight | 1.12kg |
| Gross Weight | 1.52kg |
| LED Indicators | Per port: Speed, link and activity Per system: Power and status |
| Buttons | Reset button |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595%, non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Warranty | 2 years |
| SKU | QSW-M2108-2S |
| Model # | QSW-M2108-2S |
| Barcode # | 885022020393 |
| Brand | QNAP |
| Shipping Weight | 2.9400kg |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M2108-2S is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
