QNAP Layer 2 web managed switch

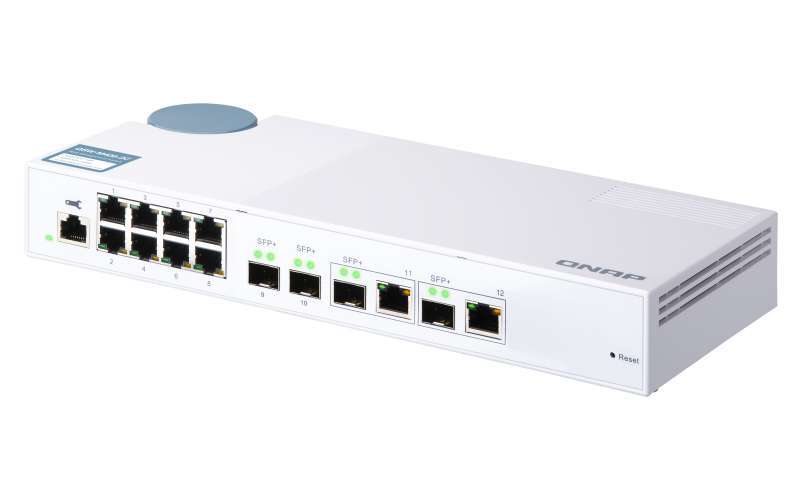

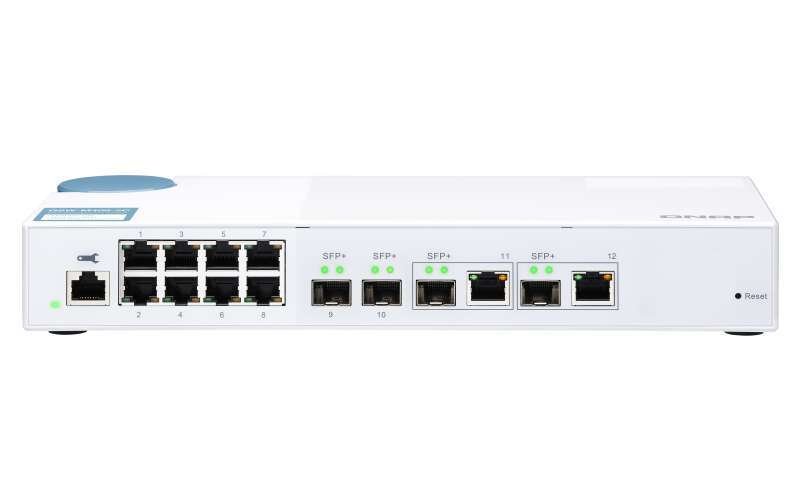

QNAP QSW-M408-2C 12-Port 10GbE Combo and Gigabit Managed Switch

A desktop managed switch with two dedicated 10GbE SFP+ ports, two selectable 10GbE SFP+/RJ45 combo ports and eight Gigabit RJ45 ports.

Network ports12

Dedicated SFP+2 × 10GbE

10GbE combo2 × SFP+ or RJ45

Switching capacity96Gbps

Hybrid 10GbE fibre, copper and Gigabit connectivity

The switch combines two dedicated SFP+ ports, two selectable SFP+/RJ45 combo positions and eight 1GbE RJ45 ports. The copper side of each combo position supports 10G, 5G, 2.5G, 1G and 100M.

Management, performance and deployment

QSS provides web-based setup, monitoring, graphical port management and firmware updates.
Layer 2 functions supplied include LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP, RSTP and flow control.
The switch provides 96Gbps switching capacity and 48Gbps total non-blocking throughput.
The desktop chassis has maximum power consumption listed as 22.04W and a supplied sound level below 21dB(A).

Combo ports and cable-distance conflict

Each combo position uses either SFP+ or RJ45. The supplied description contains both a less-than-45-metre Cat 6 reference and a separate 55-metre 10G reference, so no single exact 10G copper-distance claim is presented here.

Frequently asked questions

Answers below are based only on the supplied product information for QSW-M408-2C.

How many ports does the QSW-M408-2C provide?

It provides 12 network ports: two dedicated 10GbE SFP+ ports, two 10GbE SFP+/RJ45 combo ports and eight 1GbE RJ45 ports.

Which speeds do the copper combo interfaces support?

The supplied specifications list 10G, 5G, 2.5G, 1G and 100M support.

How do the two combo ports operate?

Each combo position can use either its SFP+ interface or its RJ45 interface, not both as separate simultaneous ports.

What switching performance is specified?

The supplied specifications list 96Gbps switching capacity and 48Gbps total non-blocking throughput.

Is an exact 10G copper cable distance confirmed?

No single distance is used because the supplied description contains a less-than-45-metre Cat 6 reference and a separate 55-metre 10G reference.

What warranty applies to the QSW-M408-2C?

The supplied specifications state a 2-year QNAP manufacturer warranty.

(QSW-M408-2C)

Features and highlights

QNAP QSW-M408-2C 12-Port 10GbE Combo and Gigabit Managed Switch

Two dedicated 10GbE SFP+ ports

Supports 10G and 1G SFP connections.

Two selectable 10GbE combo ports

Choose SFP+ or multi-speed RJ45 at each combo position.

Eight Gigabit RJ45 ports

Provides standard 1GbE access connectivity for connected devices.

Layer 2 web management

QSS supports bandwidth, segmentation, multicast, security and resilience functions.

Additional supplied highlights

96Gbps switching capacity and 48Gbps total non-blocking throughput.
16K MAC address table and support for 9K jumbo frames.
Desktop form factor with web management and an RJ45 console.
Two-year QNAP manufacturer warranty.

Technical specifications

Specifications below are organised from the supplied product information for QSW-M408-2C.

Specification	Details
Product and Management
Model	QSW-M408-2C
Management Type	Web Managed
Management Interface	Web
Console	RJ45
Network Interfaces
Total Number of Ports	12
10GbE SFP+	2 ports, supporting 10G/1G The 10GbE SFP+ ports are backward compatible with 1GbE SFP.
10GbE SFP+/RJ45 Combo Ports	2 The RJ45 copper combo ports support 10G/5G/2.5G/1G/100M.
1GbE RJ45 Ports	8
Network Performance
Switching Capacity	96Gbps
Total Non-Blocking Throughput	48Gbps
MAC Address Table	16K
Jumbo Frames	9K
Supported Standards
Ethernet Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber
Management Standards	IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Power and Cooling
Power Supply	Adapter
Input Power Type	AC
Input Voltage Range	100240VAC, 50/60Hz
Maximum Power Consumption	22.04W
Fan	1 × PWM double ball bearing fan
Sound Level	<21 dB(A)
Physical Specifications
Form Factor	Desktop
Dimensions	42.5 × 290 × 127mm
Net Weight	1.15kg
Gross Weight	1.57kg
LED Indicators	Per port: Speed/Link/Activity Per system: Power/Status
Buttons	Reset button
Operating Environment
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	595%, non-condensing
Compliance and Warranty
Certifications	CE, FCC, VCCI, BSMI
Electromagnetic Compliance	Class A
Warranty	2 years

Note: Each combo position can operate as SFP+ or RJ45; it does not provide two simultaneous data ports.

Note: The supplied description contains conflicting 10G copper-distance references, so no exact distance is confirmed.
