Four 10GbE combo ports
Choose SFP+ fibre/DAC or multi-speed RJ45 copper at each position.
QNAP QSW-M408-4C, 8 port 1Gbps, 4 port 10G SFP+/ NBASE-T Combo, web management switch
Model # QSW-M408-4C
-
SKU: QSW-M408-4C
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP Layer 2 web managed switch

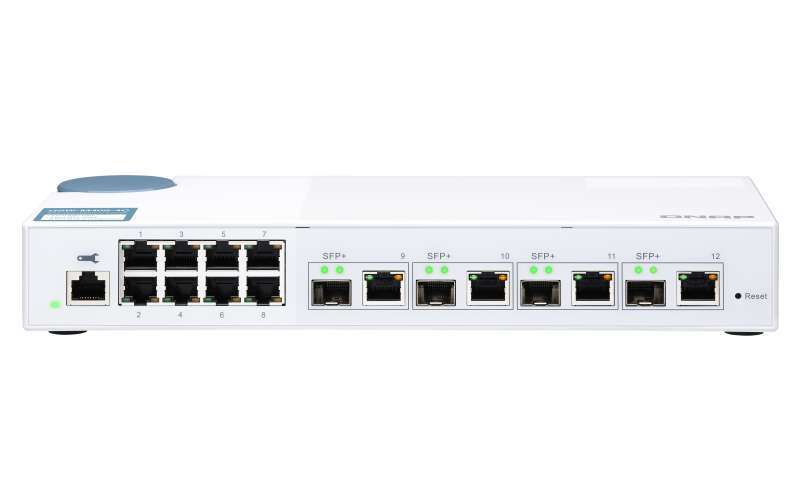

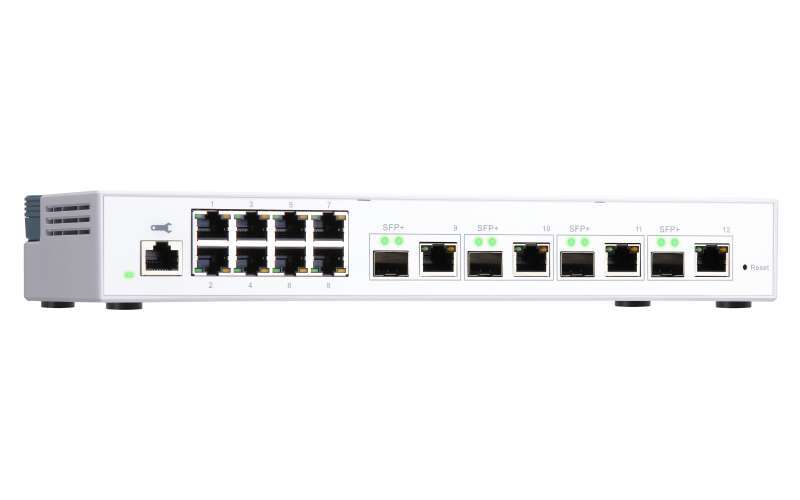

QNAP QSW-M408-4C 12-Port 10GbE Combo and Gigabit Managed Switch
A desktop managed switch with four selectable 10GbE SFP+/RJ45 combo ports, eight Gigabit RJ45 ports and QNAP Switch System controls.
Network ports12
10GbE combo4 × SFP+ or RJ45
1GbE RJ458 ports
Switching capacity96Gbps
Flexible 10GbE combo connectivity with Gigabit access
Each of the four combo positions can operate as SFP+ or multi-speed RJ45, while eight fixed Gigabit RJ45 ports connect standard Ethernet devices. The copper combo interfaces support 10G, 5G, 2.5G, 1G and 100M.
Management, performance and deployment
- QSS provides web-based setup, monitoring, visual port management and firmware updates.
- The supplied Layer 2 functions include LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP, RSTP and flow control.
- The switch provides 96Gbps switching capacity and 48Gbps total non-blocking throughput.
- Maximum power consumption is listed as 31.46W, with a supplied sound level below 21dB(A).
Combo-port planning
Each combo position represents one selectable SFP+ or RJ45 interface. The supplied information does not list transceivers, DAC cables or Ethernet cables as included, and available copper speed depends on the connected equipment and cabling.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M408-4C.
How many ports does the QSW-M408-4C provide?
It provides 12 network ports: four 10GbE SFP+/RJ45 combo ports and eight 1GbE RJ45 ports.
How do the four combo ports operate?
Each combo position can use either its SFP+ interface or its RJ45 interface, not both as separate simultaneous ports.
Which speeds do the copper combo interfaces support?
The supplied specifications list 10G, 5G, 2.5G, 1G and 100M support.
Which Layer 2 functions are supplied?
The supplied description lists LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP, RSTP and flow control.
What switching performance is specified?
The supplied specifications list 96Gbps switching capacity and 48Gbps total non-blocking throughput.
What warranty applies to the QSW-M408-4C?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M408-4C)
Features and highlights
QNAP QSW-M408-4C 12-Port 10GbE Combo and Gigabit Managed Switch
Eight Gigabit RJ45 ports
Provides standard 1GbE connectivity for connected devices.
QSS Layer 2 management
Use traffic, segmentation, multicast, security and resilience functions.
96Gbps switching capacity
The supplied total non-blocking throughput is 48Gbps.
Additional supplied highlights
- RJ45 combo interfaces support 10G, 5G, 2.5G, 1G and 100M.
- SFP+ interfaces are backward compatible with 1GbE SFP.
- 16K MAC address table and support for 9K jumbo frames.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M408-4C.
| Specification | Details |
|---|---|
| Product and Management | |
| Model | QSW-M408-4C |
| Management Type | Web Managed |
| Management Interface | Web |
| Console | RJ45 |
| Network Interfaces | |
| Number of Ports | 12 |
| 10GbE SFP+/RJ45 Combo Ports | 4 The 10GbE SFP+ ports are backward compatible with 1GbE SFP. The RJ45 copper combo port supports 10G, 5G, 2.5G, 1G and 100M. |
| 1GbE RJ45 Ports | 8 |
| Switching Performance | |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 48Gbps |
| Switching Capacity | 96Gbps |
| Jumbo Frames | 9K |
| Supported Standards | |
| IEEE Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Power and Cooling | |
| Power Supply Description | Adapter |
| Maximum Power Consumption | 31.46W |
| Input Power Type | AC |
| Input Voltage Range | 100240VAC, 50/60Hz |
| Fan | 1 × PWM double ball bearing fan |
| Sound Level | <21dB(A) |
| Physical Specifications | |
| Form Factor | Desktop |
| LED Indicators | Per port: Speed, Link and Activity Per system: Power and Status |
| Buttons | Reset button |
| Dimensions (H × W × D) | 42.5 × 290 × 127mm |
| Net Weight | 1.15kg |
| Gross Weight | 1.57kg |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595% non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Warranty | 2 years |
Note: Each combo position can operate as SFP+ or RJ45; it does not provide two simultaneous data ports.
| SKU | QSW-M408-4C |
| Model # | QSW-M408-4C |
| Barcode # | 885022018734 |
| Brand | QNAP |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.130m |
| Shipping Height | 0.290m |
| Shipping Length | 0.040m |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M408-4C is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
