View PDF Brochure
Four 10GbE SFP+ ports
Supports 10G and 1G SFP connections for fibre, DAC or compatible transceiver deployment.

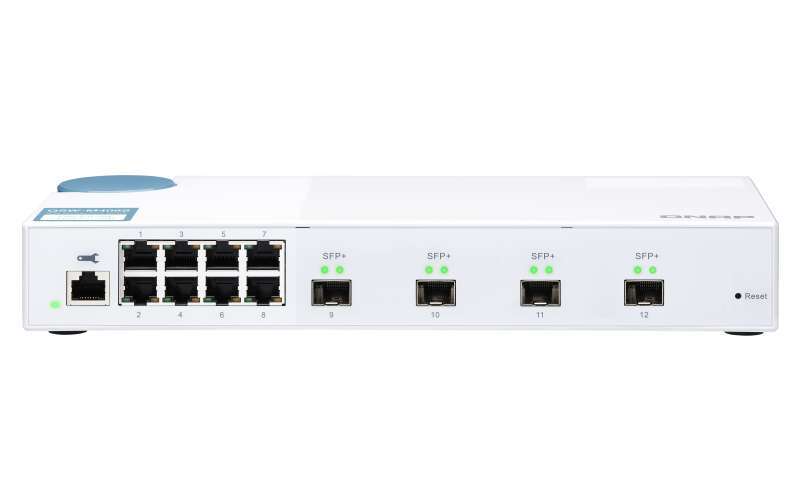

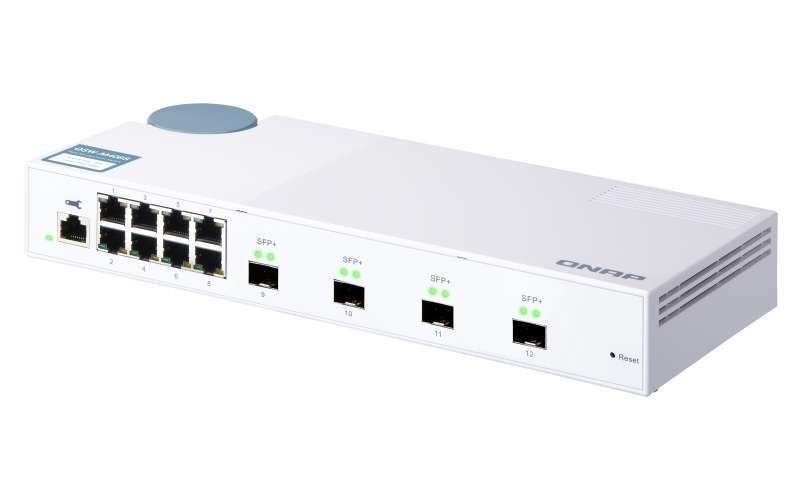

QNAP QSW-M408S, 8 port 1Gbps, 4 port 10GbE SFP+, web management switch
Model # QSW-M408S
-
SKU: QSW-M408S
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP Layer 2 web managed switch
QNAP QSW-M408S 12-Port 10GbE SFP+ and Gigabit Managed Switch
A desktop managed switch with four 10GbE SFP+ ports, eight Gigabit RJ45 ports and QNAP Switch System controls for hybrid high-speed networks.
Network ports12
10GbE SFP+4 ports
1GbE RJ458 ports
Switching capacity96Gbps
10GbE SFP+ uplinks with Gigabit access
Four SFP+ interfaces support 10GbE and 1GbE connections, while eight fixed Gigabit RJ45 ports connect standard Ethernet devices. The supplied description also references compatible 10G-SFP-T copper transceiver use for copper connections.
Management, performance and deployment
- QSS provides web-based setup, graphical port management, monitoring and online firmware updates.
- The supplied management functions include LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP, RSTP and flow control.
- The switch provides 96Gbps switching capacity and 48Gbps total non-blocking throughput.
- Maximum power consumption is listed as 12.17W, with a supplied sound level below 21dB(A).
Optics and transceiver planning
The supplied information does not list SFP/SFP+ modules, DAC cables or a 10G-SFP-T copper transceiver as included. Source the required modules and cabling for the intended connections.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M408S.
How many ports does the QSW-M408S provide?
It provides 12 network ports: four 10GbE SFP+ ports and eight 1GbE RJ45 ports.
Are the SFP+ ports compatible with 1GbE?
Yes. The supplied specifications list the four SFP+ ports as supporting 10G and 1G.
Which Layer 2 functions are supplied?
The supplied description lists LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP, RSTP and flow control.
What switching performance is specified?
The supplied specifications list 96Gbps switching capacity and 48Gbps total non-blocking throughput.
Is a 10G-SFP-T copper transceiver included?
The supplied description references compatible 10G-SFP-T use, but does not list the transceiver as included.
What warranty applies to the QSW-M408S?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M408S)
Features and highlights
QNAP QSW-M408S 12-Port 10GbE SFP+ and Gigabit Managed Switch
Eight Gigabit RJ45 ports
Provides standard 1GbE connectivity for connected devices.
QSS Layer 2 management
Use supplied traffic, segmentation, multicast, security and resilience functions.
96Gbps switching capacity
The supplied total non-blocking throughput is 48Gbps.
Additional supplied highlights
- 16K MAC address table and support for 9K jumbo frames.
- Desktop form factor with web management and an RJ45 console.
- Maximum power consumption is supplied as 12.17W.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M408S.
| Specification | Details |
|---|---|
| Product Details | |
| Model | QSW-M408S |
| Management Type | Web Managed |
| Number of Ports | 12 |
| Form Factor | Desktop |
| Network Interfaces | |
| 10GbE SFP+ | 4 × SFP+ ports, 10G/1G |
| 1GbE RJ45 | 8 × Gigabit Ethernet ports |
| Console | RJ45 |
| Switching Performance | |
| Switching Capacity | 96Gbps |
| Total Non-Blocking Throughput | 48Gbps |
| MAC Address Table | 16K |
| Jumbo Frames | 9K |
| Management and Standards | |
| Management Interface | Web |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fiber IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Power and Cooling | |
| Power Supply Description | Adapter |
| Input Power Type | AC |
| Input Voltage Range | 100240VAC, 50/60Hz |
| Maximum Power Consumption | 12.17W |
| Fan | 1 × PWM double ball bearing fan |
| Sound Level | <21dB(A) |
| Indicators and Controls | |
| LED Indicators | Per port: Speed, Link and Activity Per system: Power and Status |
| Buttons | Reset button |
| Physical Specifications | |
| Dimensions (H × W × D) | 42.5 × 290 × 127mm |
| Net Weight | 1.145kg |
| Gross Weight | 1.565kg |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595%, non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | Class A |
| Warranty | 2 years |
| SKU | QSW-M408S |
| Model # | QSW-M408S |
| Barcode # | 885022018710 |
| Brand | QNAP |
| Shipping Weight | 2.9400kg |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M408S is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
