Sixteen 25GbE SFP28 ports
High-density fibre connectivity for compatible servers, NAS and switches.
QNAP QSW-M5216-1T 16 ports GbE SFP28,1 port 10GbE RJ45 rackmount web managed switch
Model # QSW-M5216-1T
-
SKU: QSW-M5216-1T
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP 25GbE web managed switch
QNAP QSW-M5216-1T 17-Port 25GbE Web Managed Switch
A rackmount Layer 2 web managed switch with sixteen 25GbE SFP28 ports, one multi-speed 10GbE RJ45 port and 820Gbps switching capacity.
25GbE SFP2816 ports
10GbE RJ451 multi-speed port
Switching capacity820Gbps
ManagementLayer 2 web managed
High-density 25GbE backbone connectivity

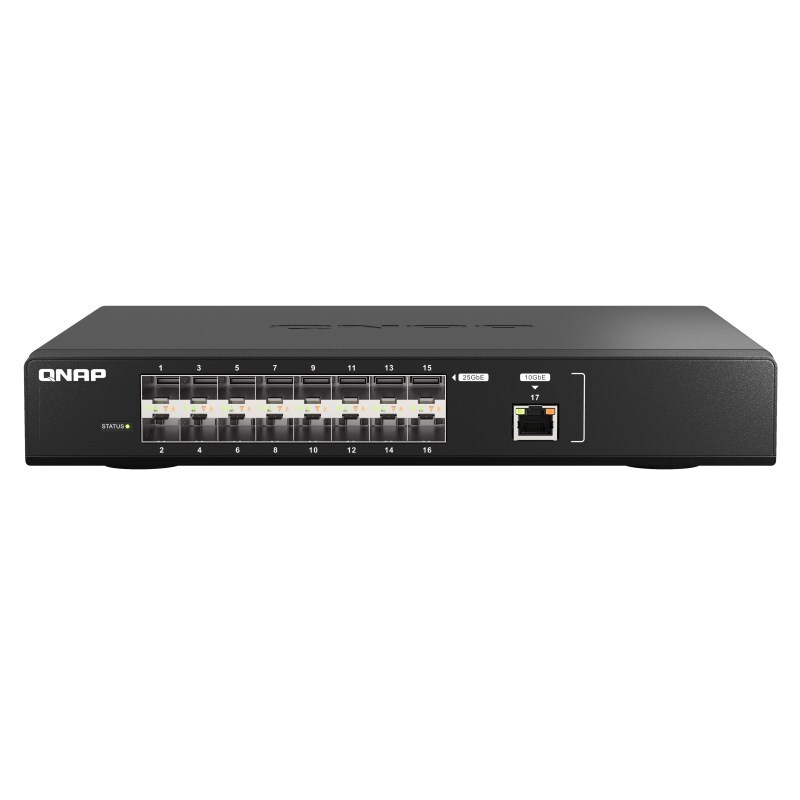

Sixteen SFP28 ports support suitable 25GbE DAC cables or transceivers and are stated as backward compatible with 10GbE SFP+ and 1GbE SFP connections. The separate NBASE-T RJ45 port supports 10G, 5G, 2.5G and 1G.
Layer 2 control and QSS management
- LACP, VLAN, ACL, LLDP and RSTP are listed for bandwidth control, segmentation, discovery and resilient network design.
- IEEE 802.3x full-duplex flow control and 9K jumbo frames are supported.
- The QNAP Switch System web interface provides an overview dashboard, visual port management, guided settings and online firmware updates.

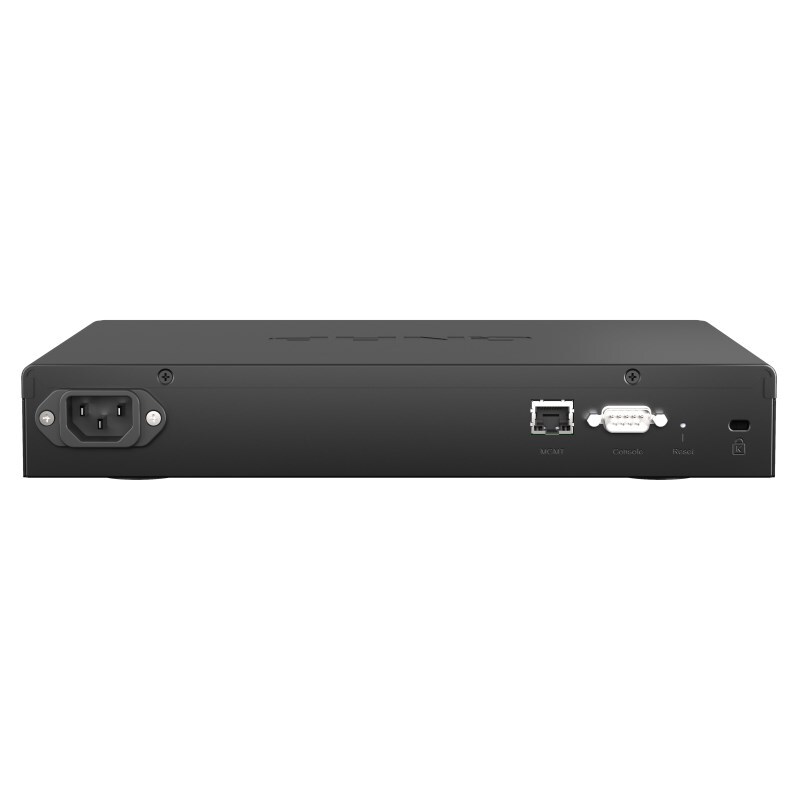

- A dedicated 1GbE RJ45 management port and RS232 console are listed.
Rackmount deployment
The switch uses an internal 100240VAC power supply, has maximum power consumption listed as 32.602W and a specified sound level below 34dB(A). Suitable fibre modules, DAC cables and Cat 6a cabling are selected separately for the intended links.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-M5216-1T.
How many network ports does the QSW-M5216-1T have?
It has 17 data ports: sixteen 25GbE SFP28 ports and one multi-speed 10GbE RJ45 port. A separate 1GbE RJ45 management port is also listed.
What switching performance is specified?
The supplied specifications list 820Gbps switching capacity and 410Gbps total non-blocking throughput.
Are the SFP28 ports backward compatible?
Yes. The supplied description states that the SFP28 ports are backward compatible with 10GbE SFP+ and 1GbE SFP connections.
Which speeds does the RJ45 data port support?
The NBASE-T RJ45 port supports 10G, 5G, 2.5G and 1G network speeds.
Which management features are listed?
The supplied information includes LACP, VLAN, ACL, LLDP, RSTP, flow control, Class of Service and QSS web management.
What warranty applies to the QSW-M5216-1T?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-M5216-1T)
Features and highlights
QNAP QSW-M5216-1T 17-Port 25GbE Web Managed Switch
Multi-speed 10GbE copper port
One RJ45 port supports 10G, 5G, 2.5G and 1G.
820Gbps switching capacity
The supplied specifications also list 410Gbps non-blocking throughput.
Layer 2 web management
QSS, LACP, VLAN, ACL, LLDP and RSTP are listed.
Additional supplied highlights
- 32K MAC address table and 9K jumbo-frame support.
- Dedicated 1GbE management port and RS232 console.
- Interop Tokyo 2022 Best of Show Award runner-up, as stated in the supplied description.
- Two-year QNAP manufacturer warranty.
Technical specifications
Specifications below are organised from the supplied product information for QSW-M5216-1T.
| Specification | Details |
|---|---|
| Product and Management | |
| Model | QSW-M5216-1T |
| Management Type | Web Managed |
| Management Interface | Web |
| Console | RS232 |
| Network Interfaces | |
| Number of Data Ports | 17 |
| 25GbE SFP28 Ports | 16 |
| 10GbE BASE-T Port | 1 × RJ45 |
| Management Port | 1 × 1GbE RJ45 |
| Switching Performance | |
| Switching Capacity | 820Gbps |
| Total Non-Blocking Throughput | 410Gbps |
| MAC Address Table | 32K |
| Jumbo Frames | 9K |
| Supported Standards | |
| Ethernet and Network Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T, out-of-band port for management only IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G fibre IEEE 802.3x full-duplex flow control IEEE 802.3by 25 Gigabit Ethernet IEEE 802.1Q VLAN tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service |
| Power and Cooling | |
| Power Supply | Internal power supply unit |
| Input Power Type | AC |
| Input Voltage Range | 100240VAC, 50/60Hz |
| Maximum Power Consumption | 32.602W |
| Fan | Yes |
| Sound Level | <34dB(A) |
| Physical Specifications | |
| Form Factor | Rackmount |
| Dimensions | 43.5 × 285 × 237.7mm |
| Net Weight | 2.15kg |
| Gross Weight | 2.85kg |
| LED Indicators | Per port: speed, link and activity Per system: power and status |
| Buttons | Reset button |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595%, non-condensing |
| Compliance and Warranty | |
| Certifications | CE, FCC, VCCI and BSMI |
| Electromagnetic Compliance | Class A |
| Warranty | 2 years |
| SKU | QSW-M5216-1T |
| Model # | QSW-M5216-1T |
| Barcode # | 885022021338 |
| Brand | QNAP |
| Shipping Weight | 2.5000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.250m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.037500000m3 |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-M5216-1T is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, duration, eligibility and claim assessment are subject to QNAP terms for the exact product. Please retain your DeviceDeal tax invoice as proof of purchase.
