8-Port 10GbE Layer 2 Web Managed Switch

QNAP QSW-M804-4C

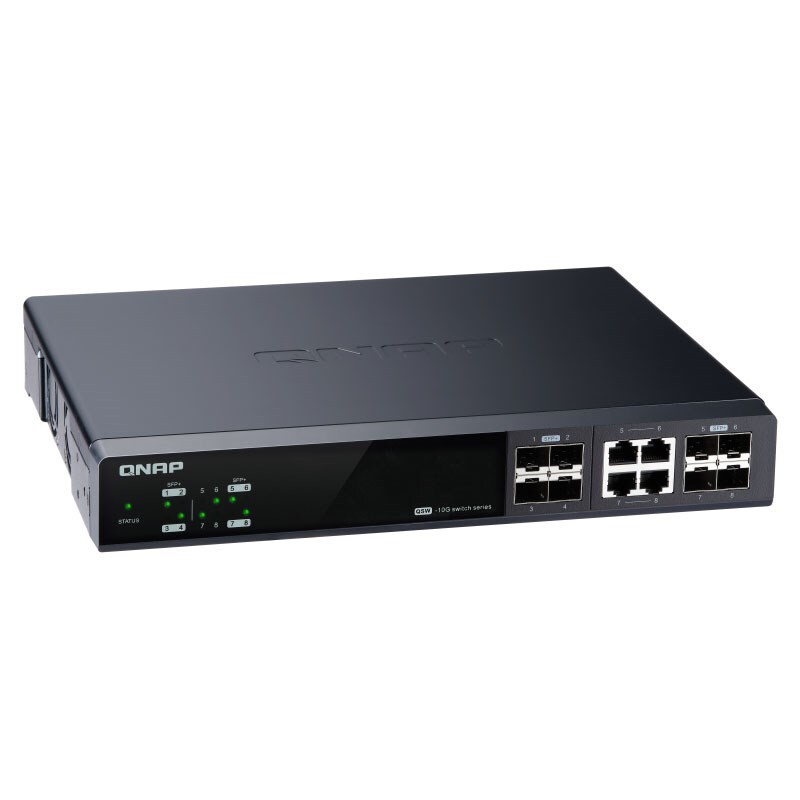

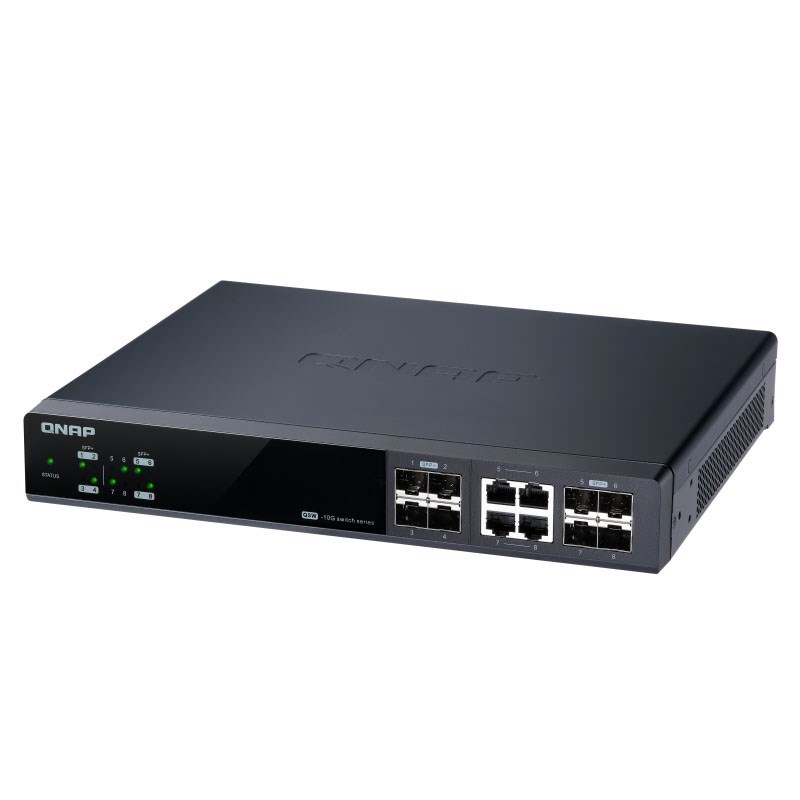

The QSW-M804-4C combines four dedicated 10GbE SFP+ ports with four 10GbE SFP+/RJ45 combo ports, providing flexible fibre and copper connectivity for businesses and organisations upgrading to a managed 10GbE network.

What is the QNAP QSW-M804-4C?

The QSW-M804-4C is an eight-port Layer 2 Web Managed Switch designed for high-speed file transfers, simultaneous access to large files, video and multimedia workflows, and bandwidth-demanding virtualisation tasks. Its QNAP Switch System web interface provides entry-level network management through an overview dashboard, port controls and guided settings.

8 Ports Four 10GbE SFP+ ports and four SFP+/RJ45 combo ports

10GbE High-speed fibre and copper network connectivity

5 Speeds RJ45 combo ports support 10G, 5G, 2.5G, 1G and 100M

Layer 2 LACP, VLAN, QoS, ACL, LLDP, RSTP and IGMP Snooping

Flexible 10GbE Fibre and Copper Deployment

Connect servers, storage and other network devices through SFP+ or multi-speed RJ45 interfaces.

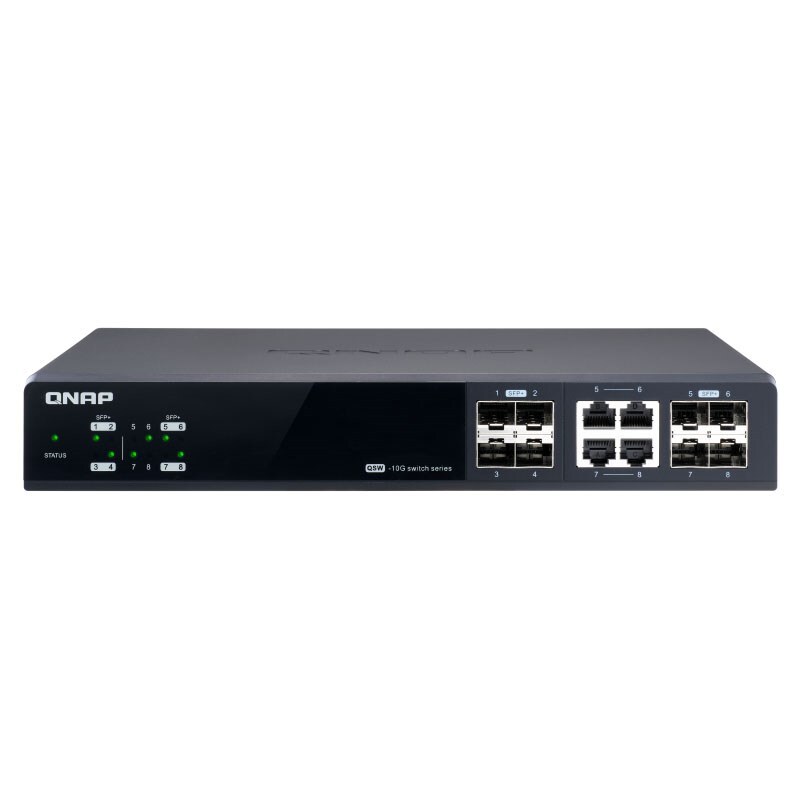

The QSW-M804-4C includes four dedicated SFP+ fibre ports and four SFP+/RJ45 copper combo ports. Direct Attach Copper cables can be used with the SFP+ interfaces when connecting servers inside a rack, while the RJ45 interfaces support 10GbE through Cat 6a or higher-category cabling.

The RJ45 combo interfaces are compatible with 10GbE and NBASE-T technologies and support five network speeds: 10G, 5G, 2.5G, 1G and 100M. The achievable connection speed depends on the cable type and cable length.

Cabling note: When the distance between the switch and connected device is less than 45 metres (148 feet), Cat 6 cable can be used to achieve 10Gb/s speeds.

QSS: Intuitive Network Management

The QNAP Switch System provides a visual, web-based interface for configuring and monitoring the switch.

Overview Dashboard

View real-time system information, port connection status and port traffic from a central dashboard.

Visual Port Management

The graphical interface reflects the switch’s physical ports to make configuration and monitoring easier.

Guided Configuration

Settings guidance, status charts and flat control layers help simplify network setup and ongoing management.

One-Click Updates

QSS supports one-click online firmware updates to help IT administrators keep the switch software current.

Bandwidth and Packet Management

Layer 2 controls help administrators manage traffic, organise connected devices and allocate network resources.

Link Aggregation

LACP combines multiple network connections to increase throughput and provide protection against a connection failure.

VLAN

Virtual LAN functionality allows selected devices from different physical network segments to be organised into a logical network.

Quality of Service

QoS helps prioritise bandwidth usage and optimise the allocation of available network resources.

IGMP Snooping

IGMP Snooping assists in reducing unnecessary multicast traffic, minimising bandwidth loss and limiting network information leakage.

Network Reliability and Security Functions

Access controls, device discovery and loop-prevention features help administrators maintain a stable Layer 2 network.

Access Control Lists

ACL functionality provides access controls that can help administrators strengthen network security.

LLDP

Link Layer Discovery Protocol supports device discovery and assists with network troubleshooting.

Rapid Spanning Tree Protocol

RSTP supports loop prevention, redundant network paths and expandable small-to-medium network deployments.

IEEE 802.3x Flow Control

Full-duplex flow control helps balance data transmission and avoid packet loss during periods of unequal bandwidth.

High-Speed Network Applications

Flexible 10GbE connectivity supports storage, multimedia and other bandwidth-demanding environments.

The QSW-M804-4C can be used with NAS devices featuring built-in 10GbE SFP+ or 10GBASE-T ports, as well as NAS models equipped with compatible 10GbE network adapters. The supplied product information also identifies QNAP Thunderbolt 3 to 10GbE and USB 3.2 Gen 1 to 5GbE network adapters as parts of QNAP’s wider high-speed networking range.

These connection options can support photo and video editing, virtualisation, large-file transfers and simultaneous multi-workstation access to shared files.

Rackmount or Desktop Installation

A modern enclosure and included rackmount kit provide flexible placement options.

The QSW-M804-4C features a compact rackmount design suitable for business networks, server rooms and modern office environments. A rackmount kit is included to provide additional installation flexibility.

The QSW-M804-4C is made in Taiwan and is presented as a reliable managed networking solution for organisations adopting 10GbE connectivity.

Frequently Asked Questions

Quick answers about the QNAP QSW-M804-4C.

How many network ports does the QSW-M804-4C have?

It has eight 10GbE ports: four dedicated SFP+ ports and four SFP+/RJ45 combo ports.

What speeds do the RJ45 combo ports support?

The RJ45 combo ports support 10G, 5G, 2.5G, 1G and 100M connection speeds.

Can the switch use both fibre and copper connections?

Yes. It provides dedicated SFP+ fibre ports and SFP+/RJ45 combo ports that can accept either an SFP+ connection or an RJ45 copper connection.

Does the QSW-M804-4C support Layer 2 management?

Yes. Supported Layer 2 functions include LACP, VLAN, QoS, IGMP Snooping, ACL, LLDP, RSTP and Flow Control.

How is the QSW-M804-4C managed?

It is managed through the web-based QNAP Switch System, which provides an overview dashboard, port management, guided settings and online firmware updates.

Does the switch include a rackmount kit?

Yes. The supplied product information states that a rackmount kit is included.

What warranty is listed for the QSW-M804-4C?

The supplied hardware datasheet lists a two-year warranty.

Combo-port note: Each SFP+/RJ45 combo port uses either its SFP+ interface or its RJ45 interface as one network port.

Product images are for illustrative purposes only and may differ from the actual product. Designs and specifications are subject to change without notice.

(QSW-M804-4C)

QNAP QSW-M804-4C Specifications

Review the network interfaces, management, performance, power, physical and environmental specifications.

Specification	Details
Product Details
Model	QSW-M804-4C
Management Type	Web Managed
Number of Ports	8
Form Factor	Rackmount
Network Interfaces
10GbE SFP+ Ports	4 The 10GbE SFP+ ports are backward compatible with 1GbE SFP.
10GbE SFP+/RJ45 Combo Ports	4 The RJ45 copper combo ports support 10G/5G/2.5G/1G/100M.

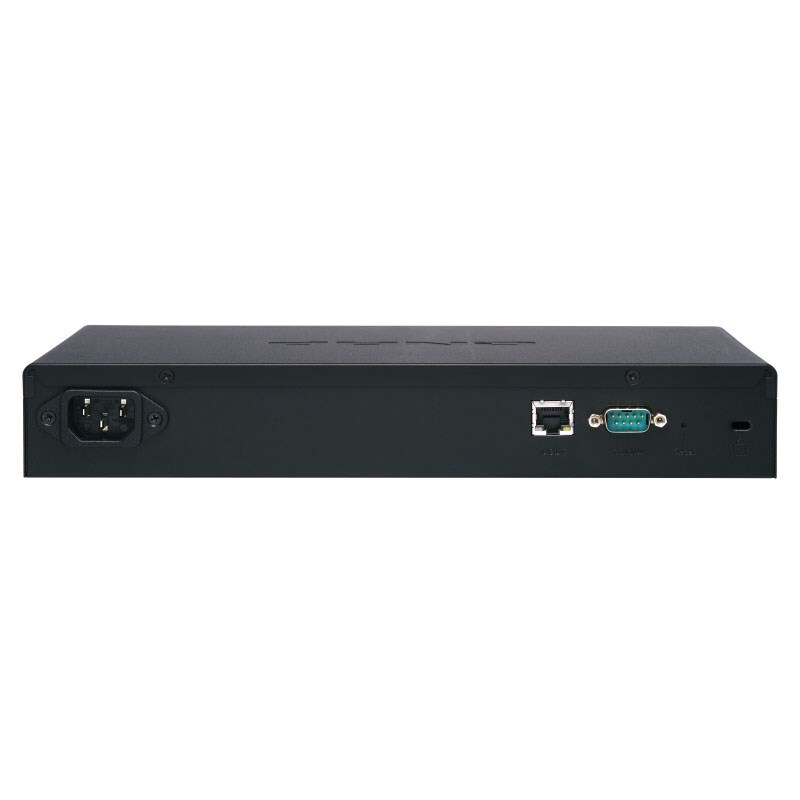

Management Port	1 × 1GbE RJ45
Console	RS232
Switching Performance
Total Non-Blocking Throughput	80Gbps
Switching Capacity	160Gbps
MAC Address Table	32K
Jumbo Frames	9K
Management and Network Standards
Management Interface	Web
Supported Standards	IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3an 10GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ae 10G Fibre IEEE 802.3x Full-Duplex Flow Control IEEE 802.1Q VLAN Tagging IEEE 802.1w RSTP IEEE 802.3ad LACP IEEE 802.1AB LLDP IEEE 802.1p Class of Service
Power and Cooling
Power Supply	Internal power supply unit
Input Power Type	AC
Input Voltage Range	100–240VAC, 50/60Hz
Maximum Power Consumption	70W
Fan	System: 4 × 4cm, 12V
Sound Level	<31dB(A)
Physical Specifications
Dimensions (H × W × D)	46.65 × 285 × 236.6mm
Net Weight	2.12kg
LED Indicators	Per port: Speed, link and activity Per system: Power and status
Buttons	Reset button
Operating Environment
Operating Temperature	0°C to 40°C (32°F to 104°F)
Relative Humidity	5%–95%, non-condensing
Compliance and Warranty
Certifications	FCC, CE, VCCI, BSMI, RCM and WEEE
Electromagnetic Compliance	Class A
Warranty	2 years

QNAP reserves the right to replace parts or accessories when the original is no longer available from its manufacturer or supplier. Replacement components are tested and verified for compatibility and stability.

Product images are for illustrative purposes only and may differ from the actual product. Product colours may appear differently depending on the display. Designs and specifications are subject to change without notice.
