StarTech 1 Port Low Profile PCI Parallel Adapter - PCI1P_LP
Model # PCI1P_LP
-
SKU: PCI1P_LP
- Pick Up Available
- Australian Warranty
- Checkout Securely
The PCI1P_LP 1 Port Low Profile PCI Parallel Adapter Card adds one IEEE 1284 port to your small form factor PC, with data transfer speeds of up to 1.5 Mbps – up to 3 times faster than on-board parallel ports. The adapter card features a low profile design that is suited to small form factor computer cases, while including a full height bracket to adapt to any installation.
Installation is a breeze with plug and play support and drivers for Windows® 7, Vista, XP, ME, 2000, 98, 95, NT4, DOS® and Linux®. IRQ sharing and hot swapping capabilities guarantee convenient, hassle-free connections to any parallel peripheral.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Applications
- Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers
The StarTech.com Advantage
- Standard and low profile bracket included allowing install into almost any system
- Up to 3 times faster than legacy ISA or on-board parallel ports providing fast and reliable parallel communication
- Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals
(PCI1P_LP)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |
| Card Type | Low Profile (SP bracket incl.) | |
| Chipset ID | ASIX - MCS9805CV | |
| Industry Standards | BPP | |
| ECP | ||
| EPP | ||
| PCI 2.1 | ||
| SPP | ||
| Interface | Parallel | |
| Port Style | Integrated on Card | |
| Ports | 1 | |
| Performance | ||
| Maximum Data Transfer Rate | 1.5 Mbps | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male | |

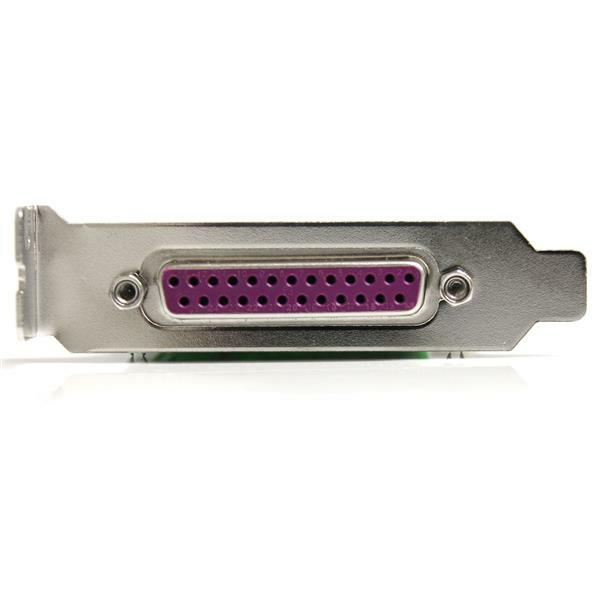

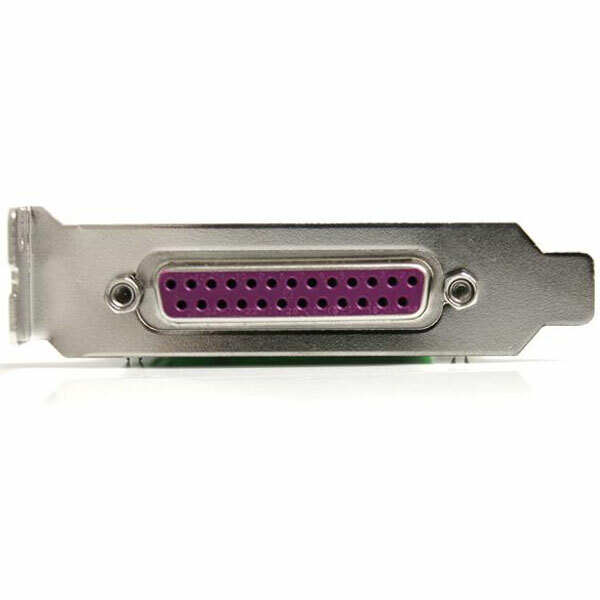

| External Ports | 1 - DB-25 (25 pin, D-Sub) Female | |
| Software | ||
| OS Compatibility | Windows® DOS, 95, 98SE, ME, XP, Vista, 7, 8, 8.1, 10 Linux 3.5.x to 4.11.x LTS Versions only | |
| Special Notes / Requirements | ||
| System and Cable Requirements | Unused PCI slot | |
| Physical Characteristics | ||
| Product Height | 2.2 in [5.5 cm] | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 0.8 in [20 mm] | |
| Weight of Product | 1.7 oz [49 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [31 mm] | |
| Package Length | 5.7 in [14.5 cm] | |
| Package Width | 6.9 in [17.5 cm] | |
| Shipping (Package) Weight | 4.7 oz [132 g] | |
| What's in the Box | ||
| Included in Package | 1 - Low Profile PCI Parallel Card | |
| 1 - Standard profile bracket | ||
| 1 - Driver CD | ||
| 1 - Manual | ||
| SKU | PCI1P_LP |
| Barcode # | 65030788755 |
| Brand | Startech |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000350000m3 |
