StarTech.com · LX-ST

StarTech LX-ST Palo Alto Compatible 1000BASE-LX SFP Module

Palo Alto Compatible 1000BASE-LX SFP Module designed for professional IT, electronics, security or workstation use.

Quick answer: LX-ST adds 1GbE 1000BASE-LX connectivity over LC single-mode fibre for links up to 10km.

Best forReplacing or adding an SFP in compatible Palo Alto Networks switches and routers requiring PAN-SFP-LX coding.

Check before orderingThe host must provide an MSA or compatible Palo Alto Networks SFP port, and the link must use suitable LC single-mode fibre.

Answers before you buy

Frequently asked questions

What is StarTech LX-ST?

It is a Palo Alto Networks-compatible single-mode fibre SFP transceiver that adds 1GbE 1000BASE-LX connectivity over LC single-mode fibre for links up to 10km.

Which connections or mounting method are provided?

One duplex LC fibre interface in a hot-swappable SFP form factor

What performance is specified?

1Gbps; 1310nm; single mode; 10km; DDM; full duplex

How is the product constructed?

Compact steel SFP module programmed and tested for Palo Alto Networks compatibility

What link distance is supported?

The specified maximum distance is 10km over compatible single-mode fibre.

Which Palo Alto part is it designed to replace?

It is designed as a compatible alternative to the Palo Alto Networks PAN-SFP-LX.

What should be checked before ordering?

The host must provide an MSA or compatible Palo Alto Networks SFP port, and the link must use suitable LC single-mode fibre.

What warranty applies?

LX-ST carries a StarTech.com limited lifetime manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(LX-ST)

Features & highlights

Why choose LX-ST?

?Purpose-built designOne duplex LC fibre interface in a hot-swappable SFP form factor

?Specified performance1Gbps; 1310nm; single mode; 10km; DDM; full duplex

?Professional constructionCompact steel SFP module programmed and tested for Palo Alto Networks compatibility

?Key capabilityDigital Diagnostics Monitoring reports operational status to supported management tools.

?Deployment advantageHot-swappable design minimises disruption during installation or replacement.

?Order with confidenceThe host must provide an MSA or compatible Palo Alto Networks SFP port, and the link must use suitable LC single-mode fibre.

Compatibility reminder: The host must provide an MSA or compatible Palo Alto Networks SFP port, and the link must use suitable LC single-mode fibre.

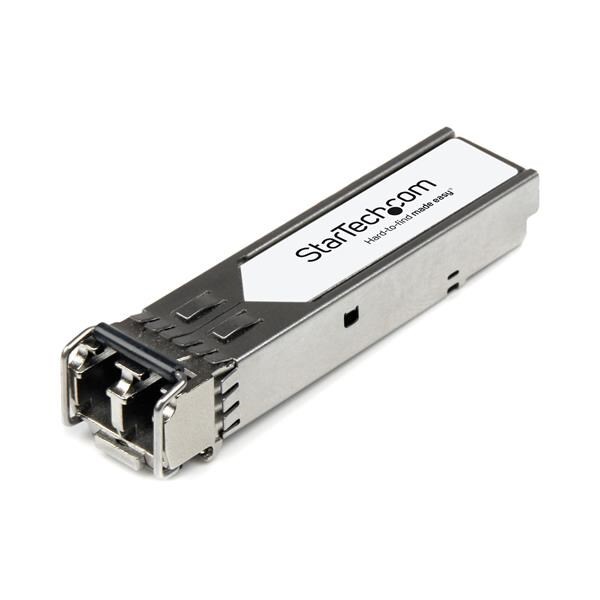

StarTech LX-ST Palo Alto Compatible 1000BASE-LX SFP Module product image

Technical specifications

LX-ST specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	Lifetime
Compatibility
Compatible Brand	Palo Alto Networks
Industry Standard	IEEE 802.3z 1000BASE-LX
Performance
Maximum Data Rate	1Gbps
Fibre Type	Single mode, full duplex
Wavelength	1310nm
Maximum Distance	10km
DDM	Yes
MTBF	634,210,013 hours
Power Consumption	Less than 1.3W
Connector
Local Connector	1 × duplex LC female
Physical Characteristics
Material	Steel
Dimensions	56.6 × 13.7 × 12.5mm
Product Weight	18g
What's in the Box
Included	SFP transceiver
