StarTech 1 Port PCI Parallel Adapter Card - PCI1PECP
Model # PCI1PECP
-
SKU: PCI1PECP
- Pick Up Available
- Australian Warranty
- Checkout Securely

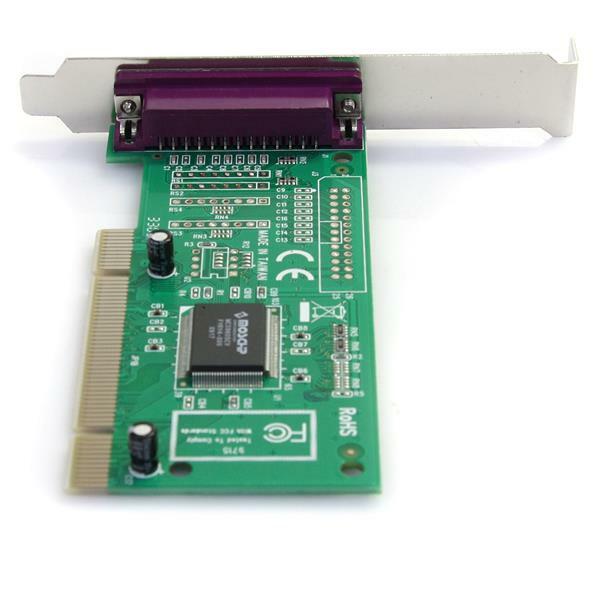

This high performance PCI based EPP/ECP parallel adapter card can be installed in a computer PCI slot to add one IEEE 1284 parallel port to your PC. A cost-effective way to connect parallel devices to the computer, with data transfer speeds of up to 1.5 Mbps (up to 3 times faster than on-board parallel ports).
The adapter card supports EPP, ECP, SPP and BPP parallel communications, and is simple to install in virtually any PC. The card supports Windows® and Linux®, plus IRQ sharing and plug and play capabilities guarantee convenient, hassle-free connections to any parallel peripheral.
A complete dual profile solution, the PCI parallel adapter card provides both standard bracket and low profile/half-height brackets for adapting to slimline or small form factor system applications.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Applications
- Connects any parallel peripheral including printers, scanners, CD-R/RWs, Zip® drives, and memory card readers
The StarTech.com Advantage
- Standard and low profile bracket included allowing install into almost any system
- Up to 3 times faster than legacy ISA or on-board parallel ports providing fast and reliable parallel communication
- Supports SPP, EPP, ECP and BPP communication modes for maximum compatibility with your parallel peripherals
(PCI1PECP)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | ASIX - MCS9805CV | |
| Industry Standards | BPP | |
| ECP | ||
| EPP | ||
| PCI 2.2 | ||
| SPP | ||
| Interface | Parallel | |
| Port Style | Integrated on Card | |
| Ports | 1 | |
| Performance | ||
| Maximum Data Transfer Rate | 1.5 Mbps | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male | |

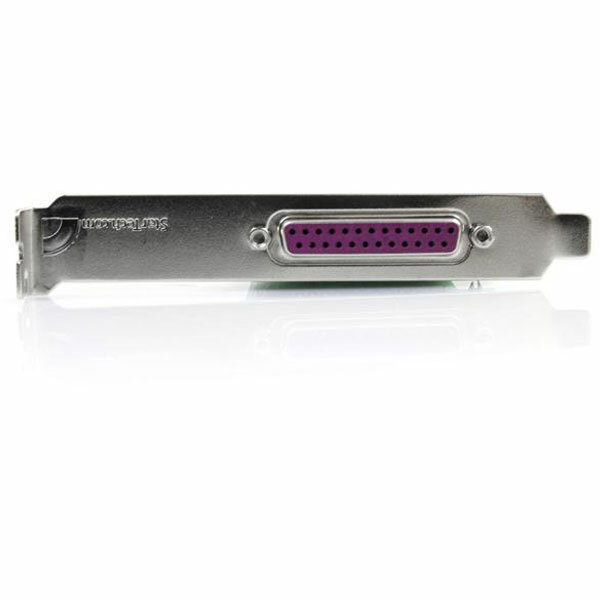

| External Ports | 1 - DB-25 (25 pin, D-Sub) Female | |
| Software | ||
| Microsoft WHQL Certified | Yes | |
| OS Compatibility | Windows® DOS, 95, 98SE, ME, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2012, 2012 R2, 2016, 2019 Linux 3.5.x to 4.11.x LTS Versions only | |
| Physical Characteristics | ||
| Product Height | 4.7 in [12 cm] | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 0.8 in [20 mm] | |
| Weight of Product | 1.9 oz [54 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [31 mm] | |
| Package Length | 5.6 in [14.3 cm] | |
| Package Width | 6.8 in [17.2 cm] | |
| Shipping (Package) Weight | 4.7 oz [132 g] | |
| What's in the Box | ||
| Included in Package | 1 - 1 Port PCI Parallel Card | |
| 1 - Low-Profile PCI bracket | ||
| 1 - Driver CD | ||
| 1 - Instruction manual | ||
| SKU | PCI1PECP |
| Barcode # | 65030782005 |
| Brand | Startech |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
