StarTech 2 Port PCIe Serial Adapter Card w/ 16550 - PEX2S553
Model # PEX2S553
-
SKU: PEX2S553
- Pick Up Available
- Australian Warranty
- Checkout Securely

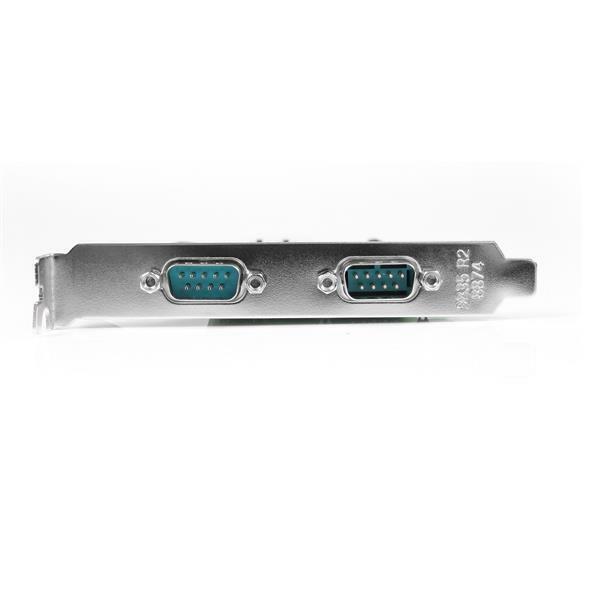

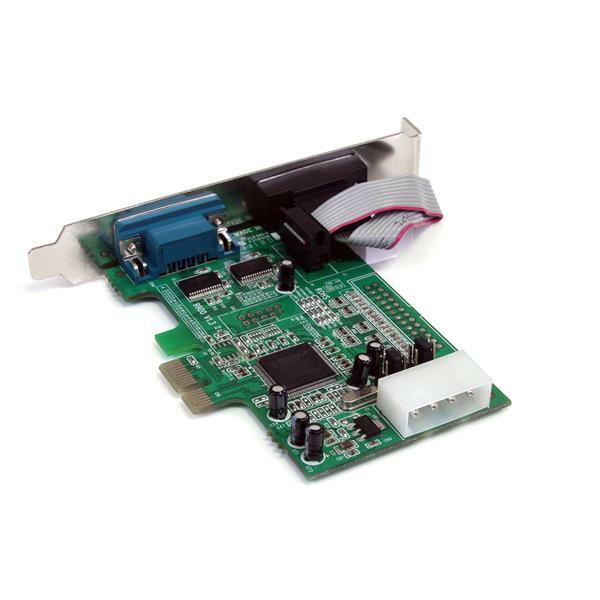

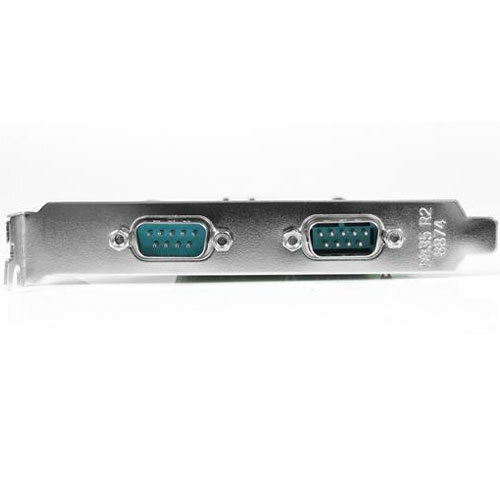

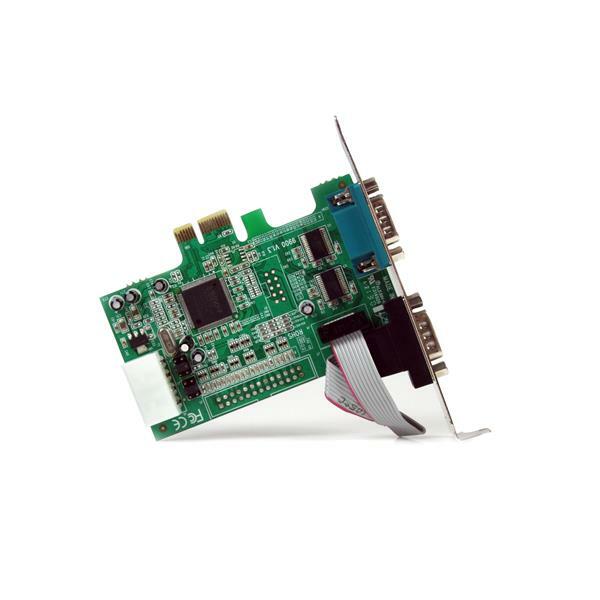

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® and Linux Kernel 2.6.11 to 4.11.x, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(PEX2S553)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | ASIX - MCS9922CV-AA | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 2 | |
| Performance | ||
| FIFO | 128 Bytes | |
| Max Baud Rate | 460.8 Kbps | |
| Serial Protocol | RS-232 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 2 - DB-9 (9 pin, D-Sub) Male | |
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) Male | |
| Software | ||
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.4 to 10.10 Linux kernel 2.6.x to 4.11.x LTS Versions only | |
| Special Notes / Requirements | ||
| Note | Selectable power output on pin 9 of the serial port | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Physical Characteristics | ||
| Color | Green | |
| Product Height | 0.8 in [2 cm] | |
| Product Length | 4.1 in [10.5 cm] | |
| Product Width | 4.7 in [12 cm] | |
| Weight of Product | 2.2 oz [61 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [32 mm] | |
| Package Length | 6.9 in [17.5 cm] | |
| Package Width | 5.7 in [14.5 cm] | |
| Shipping (Package) Weight | 5.3 oz [151 g] | |
| What's in the Box | ||
| Included in Package | 1 - 2 Port PCI-Express Serial Card | |
| 2 - Low Profile Brackets | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX2S553 |
| Barcode # | 65030841740 |
| Brand | Startech |
| Shipping Weight | 0.1500kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
