StarTech 2S1P PCIe Parallel Serial Combo Card - PEX2S5531P
Model # PEX2S5531P
-
SKU: PEX2S5531P
- Pick Up Available
- Australian Warranty
- Checkout Securely

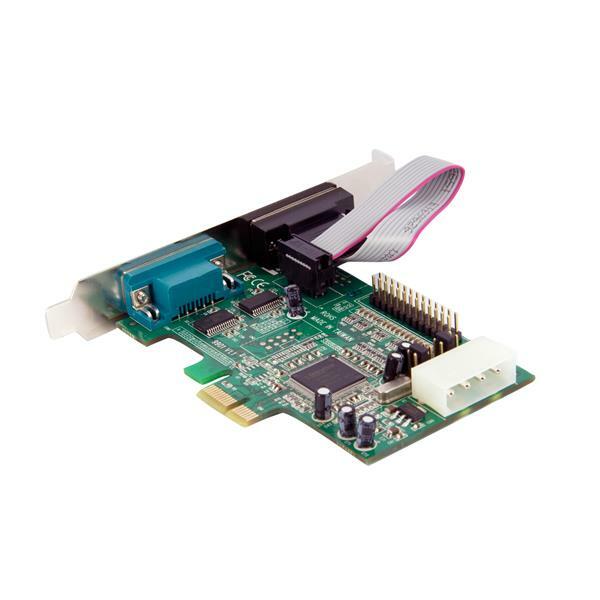

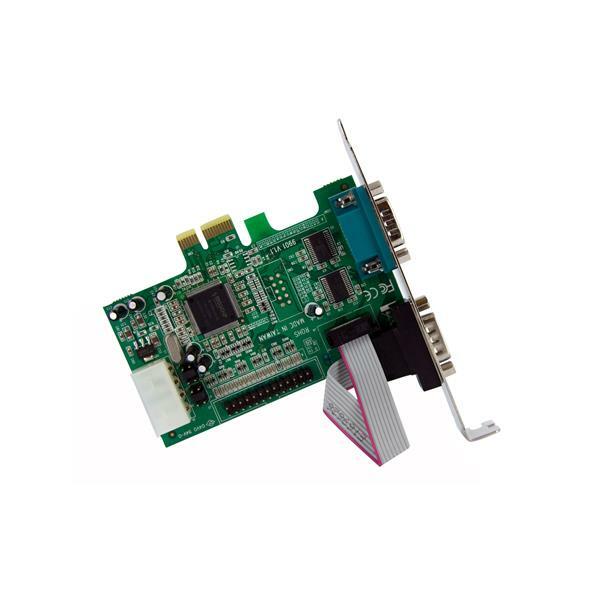

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
(PEX2S5531P)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Standard Profile (LP bracket incl.) | |
| Chipset ID | ASIX - MCS9901CV-CC | |
| Industry Standards | IEEE 1284 | |
| PCI Express base specifications revision 1.0a | ||
| Interface | Parallel | |
| Serial | ||
| Port Style | Integrated on Card | |
| Ports | 2 | |
| Performance | ||
| FIFO | 128 Bytes | |
| Max Baud Rate | 460.8 Kbps | |
| Maximum Data Transfer Rate | RS-232 - 460.8Kbps Parallel - 1.5Mbps | |
| Serial Protocol | RS-232 | |
| Supported Protocols | EPP, ECP, SPP, PS/2 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 1 - DB-25 (25 pin, D-Sub) Female | |
| 2 - DB-9 (9 pin, D-Sub) Male | ||
| Internal Ports | 1 - LP4 (4 pin; Large Drive Power) Male | |
| Software | ||
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, XP Embedded, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 Mac OS X® 10.4 to 10.9 Linux 3.5.x to 4.11.x LTS Versions only | |
| Special Notes / Requirements | ||
| Note | Selectable power output on pin 9 of the serial port | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) | |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) | |
| Physical Characteristics | ||
| Product Height | 0.8 in [2 cm] | |
| Product Length | 4.1 in [10.5 cm] | |
| Product Width | 4.7 in [12 cm] | |
| Weight of Product | 4 oz [112 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [31 mm] | |
| Package Length | 6.9 in [17.4 cm] | |
| Package Width | 5.7 in [14.5 cm] | |
| Shipping (Package) Weight | 7.3 oz [208 g] | |
| What's in the Box | ||
| Included in Package | 1 - 2 Port PCI-Express Serial Card | |
| 1 - Parallel port (with ribbon cable) | ||
| 3 - Low Profile Brackets | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX2S5531P |
| Barcode # | 65030841764 |
| Brand | Startech |
| Shipping Weight | 0.2100kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.070m |
| Shipping Cubic | 0.000350000m3 |
