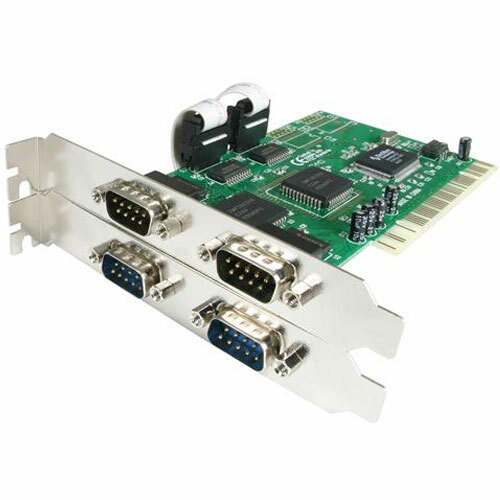

StarTech 4 Port PCI Serial Adapter Card - PCI4S550N
Model # PCI4S550N
-
SKU: PCI4S550N
- Pick Up Available
- Australian Warranty
- Checkout Securely
The PCI4S550N 4-port PCI Serial card turns an available PCI slot into four RS232 serial ports - a cost-effective solution for connecting any new or old serial peripheral, with support for data transfer rates of up to 115Kbps.
The PCI Serial card is a perfect solution for connecting serial modems, POS devices, PDAs, digital cameras, printers, ISDN terminal adapters and more, to your system without having to upgrade your peripheral devices for compatibility with newer standards (e.g. USB).
Saving time and hassle, the Serial PCI card is plug-and-play ready, and can be installed in minutes, supporting Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95, NT4, 3.1, DOS® and Linux® operating systems. Plus, the serial card offers IRQ sharing to help ensure stability and consistent performance, guaranteeing convenient, hassle-free connections.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Applications
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
The StarTech.com Advantage
- Guaranteed compatibility with any PC running Windows®, DOS® or Linux® for simple integration into your application
- Data transfer rates of up to 115.2 Kbps for efficient serial device performance
- Easy to install and use with full step-by-step instruction providing a hassle free serial solution
(PCI4S550N)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI / PCI-X (5 / 3.3V) | |
| Card Type | Standard Profile | |
| Chipset ID | ASIX - MCS9845CV | |
| Industry Standards | PCI 2.1 | |
| Interface | Serial | |
| Port Style | Integrated on Card | |
| Ports | 4 | |
| Performance | ||
| FIFO | 32 Bytes | |
| Max Baud Rate | 115.2 Kbps | |
| Serial Protocol | RS-232 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male | |
| External Ports | 4 - DB-9 (9 pin, D-Sub) Male | |
| Software | ||
| OS Compatibility | Windows® DOS, 95, 98SE, 2000, CE 5.0/6.0, XP Embedded, POS Ready 2009, Embedded System 2009, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Linux 3.5.x to 4.4.x LTS Versions only | |
| Environmental | ||
| Humidity | 5~85% RH | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
| Physical Characteristics | ||
| Product Height | 4.7 in [12 cm] | |
| Product Length | 4.7 in [12 cm] | |
| Product Width | 0.8 in [20 mm] | |
| Weight of Product | 2.6 oz [74 g] | |
| Packaging Information | ||
| Package Height | 1.2 in [31 mm] | |
| Package Length | 5.6 in [14.3 cm] | |
| Package Width | 6.8 in [17.3 cm] | |
| Shipping (Package) Weight | 6.8 oz [193 g] | |
| What's in the Box | ||
| Included in Package | 1 - 2 Port PCI 16550 Serial Card | |
| 1 - Bracket with 2 DB9 Ports | ||
| 1 - Driver CD | ||
| 1 - User Manual | ||
| SKU | PCI4S550N |
| Barcode # | 65030795531 |
| Brand | Startech |
| Shipping Weight | 0.1900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
