This TAA compliant 7-port industrial USB 2.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.  Perfect for Harsh Environments  This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.  Perfect for more extreme environments, the rugged hub also supports a wide operating temperature range (-40°C to 85°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.  Connect More USB Devices  Designed for a high volume of connections, this robust USB 2.0 hub offers seven connection ports, for connecting more USB devices and peripherals.  Locate the Hub Where You Need It Most  With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets, included DIN mount rails, and an included 2-meter USB host cable, you can securely mount the USB 2.0 hub to most surfaces such as a wall, under a desk or rack.  Works with Older USB Devices  The rugged USB hub supports the full 480 Mbps bandwidth of USB 2.0 and is backward compatible with previous USB devices.   The HB20A7AME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Extended Temperature| 15kV Air | 8kV Contact?| Metal | Mountable | DIN Rail | 480 Mbps - 7-Port USB 2.0 Hub - Industrial - ESD Protection

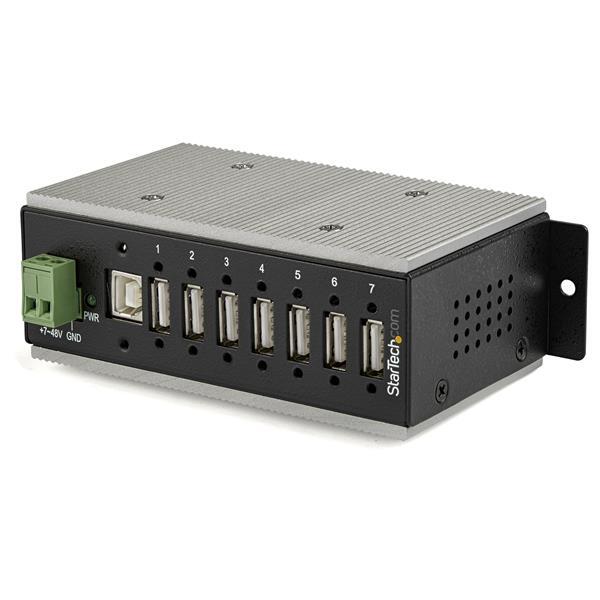

7-Port Industrial USB 2.0 Hub with ESD Protection & 350W Surge Protection

(HB20A7AME)

Indicators
LED IndicatorsPower
Packaging Information
Package Height55 mm [2.2 in]
Package Length24.2 cm [9.5 in]
Package Width16.6 cm [6.5 in]
Shipping (Package) Weight628 g [22.2 oz]
Performance
Device Power Consumption (In Watts)21 Watts
ESD Protection+/-15kV (Air)
+/-8kV (Contact)
Maximum Data Transfer Rate480 Mbps
Surge Protection350W on the DFP and UFP
Total Available Power Output (In Watts) 17.5 Watts
Type and RateUSB 2.0 - 480 Mbit/s
Physical Characteristics
Enclosure TypeMetal
Form FactorIndustrial
Product Height4.2 cm [1.7 in]
Product Length13.2 cm [5.2 in]
Product Width63 mm [2.5 in]
Weight of Product404 g [14.3 oz]
Power
Input Current4A
Input Voltage7 ~ 48 DC
Power Consumption (In Watts)28 W
Power SourceTerminal Block
Prominence
Description CDW 75 - 1st LineStarTech.com 7-Port Industrial USB 2.0 Hub with ESD & 350W Surge Protection
Software
OS CompatibilityOS independent; No software or drivers required
Special Notes / Requirements
System and Cable RequirementsAny computer with a USB 2.0 port
What's in the Box
Included in Package2 m [6.6 ft] USB-A to USB-B cable
DIN rail kit
instruction manual
USB 2.0 hub
Hardware
USB-C Host ConnectionNo
Ports7
InterfaceUSB 2.0
Industry StandardsUSB 2.0
Chipset IDGenesys Logic - GL852GT
Bus TypeUSB 2.0
Environmental
Storage Temperature-40°C to 85°C (-40°F to 185°F)
Operating Temperature-40°C to 85°C (-40°F to 185°F)
Humidity5 ~ 95% RH
Connector(s)
External PortsUSB Type-A (4 pin) USB 2.0 Female
USB B (4 pin) Female
Terminal Block (3 Wire)
SKU HB20A7AME
Barcode # 65030878616
Brand StarTech
Shipping Weight 628.0000kg
Shipping Width 0.166m
Shipping Height 0.055m
Shipping Length 0.242m
