USB and Gigabit Ethernet
Adds three USB-A ports and 10/100/1000Mbps wired networking through one USB-C host connection.
StarTech 3 Port USB C Hub w/ GbE & PD 2.0, C to 3x A, USB 3.0 Hub - HB30C3AGEPD
Model # HB30C3AGEPD
-
SKU: HB30C3AGEPD
- Pick Up Available
- Australian Warranty
- Checkout Securely
StarTech.com · HB30C3AGEPD

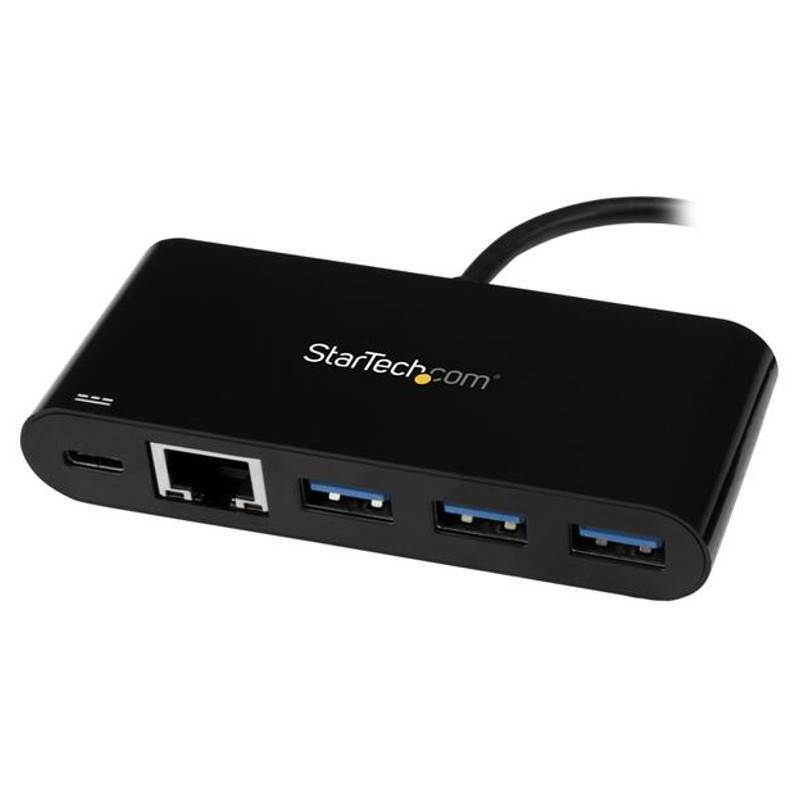

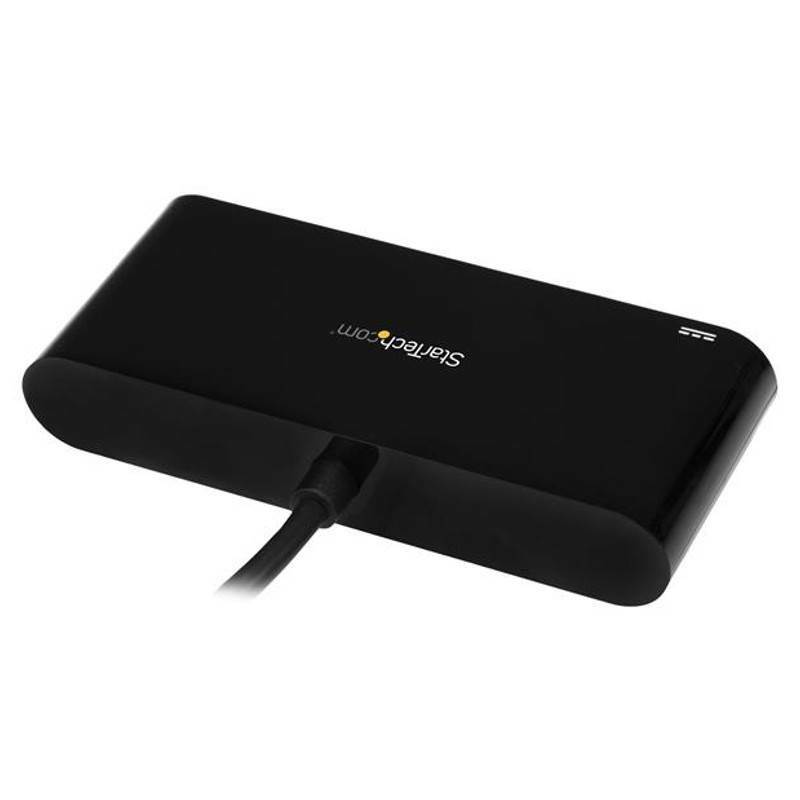

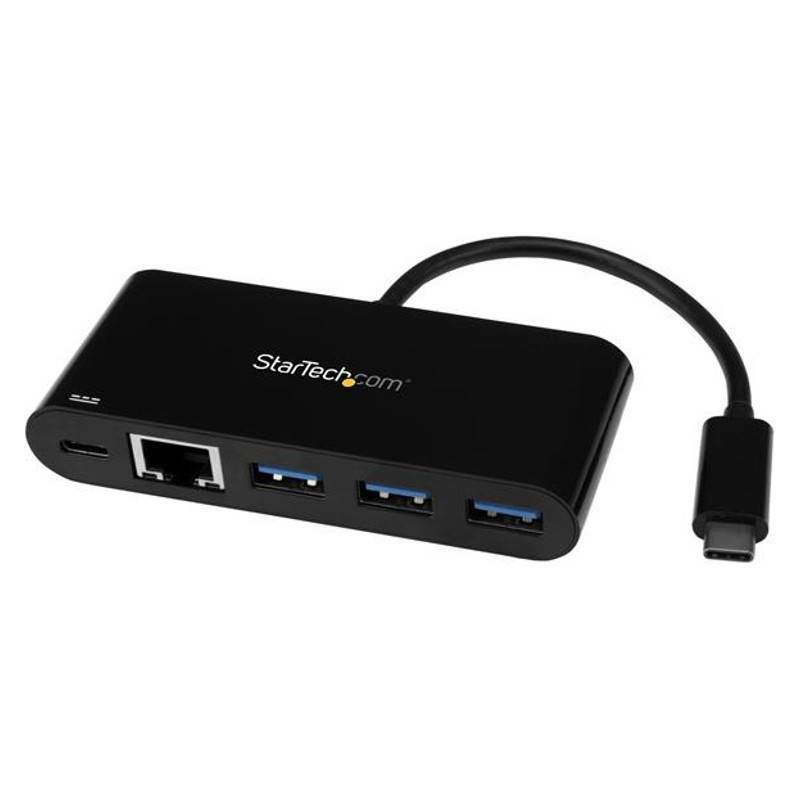

USB-C Hub with Gigabit Ethernet and 60W Power Delivery
Add three USB-A 5Gbps ports, Gigabit Ethernet and up to 60W USB-C Power Delivery pass-through to a compatible laptop.
3 × USB-AGigabit Ethernet60W PD pass-throughUSB 5Gbps
Built for dependable connectivity
60W PD pass-through
Accepts a compatible USB-C laptop power adapter and passes up to 60W to a Power Delivery 2.0 host.
Portable integrated design

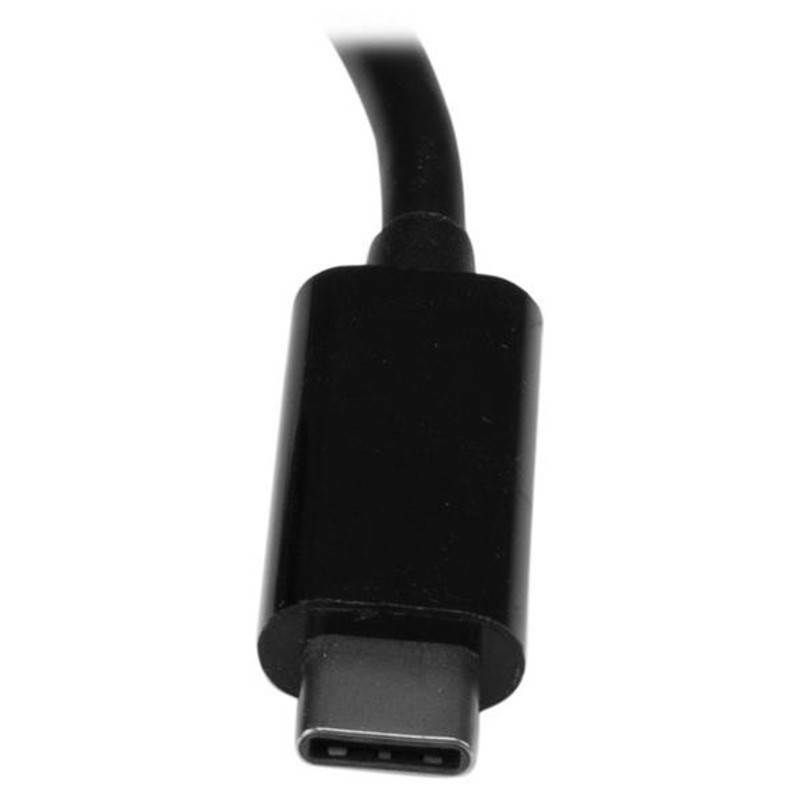

Compact black housing with an attached 15cm USB-C host cable.
Business network support
Supports Wake-on-LAN, Auto-MDIX, full-duplex flow control, VLAN tagging and 9K jumbo frames.
What to know before you connect
- The host USB-C port must support USB Power Delivery 2.0 for laptop charging.
- A USB-C power adapter is optional and is not included.
- The hubs USB-C input is power-only and does not carry data or DisplayPort Alt Mode video.
- Up to 7.4W is reserved for hub and downstream-port operation.
?
Australian version with official warranty
Supplied by DeviceDeal and covered by the official StarTech.com 2-year manufacturer warranty in Australia. Keep your DeviceDeal tax invoice as proof of purchase; coverage is subject to StarTech.com terms, eligibility and product assessment.
Frequently asked questions
What does the StarTech HB30C3AGEPD do?
It combines three USB-A ports, Gigabit Ethernet and 60W Power Delivery pass-through for a USB-C laptop.
What ports does the HB30C3AGEPD provide?
It provides three USB-A 5Gbps ports, one RJ45 port, a USB-C host cable and a dedicated USB-C Power Delivery input.
What is the maximum USB data speed?
It supports USB 3.2 Gen 1 speeds up to 5Gbps, shared across active devices.
How is the HB30C3AGEPD powered?
It can pass up to 60W from a compatible USB-C power adapter to a host that supports USB Power Delivery 2.0; the adapter is not included.
What systems and hosts are supported?
It supports the Windows, macOS and Linux versions listed by StarTech and works with compatible USB-C or Thunderbolt data hosts.
Can the Power Delivery port transfer data or video?
No. The hubs USB-C Power Delivery input is for power only and does not support data transfer or DisplayPort Alt Mode.
What is included in the package?
The package includes the USB hub and a quick-start guide; a USB-C power adapter is optional and not included.
What warranty applies in Australia?
The Australian-version HB30C3AGEPD supplied by DeviceDeal is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com terms and assessment.
(HB30C3AGEPD)
Features and highlights
USB and Gigabit Ethernet
Adds three USB-A ports and 10/100/1000Mbps wired networking through one USB-C host connection.
60W PD pass-through
Accepts a compatible USB-C laptop power adapter and passes up to 60W to a Power Delivery 2.0 host.
Portable integrated design
Compact black housing with an attached 15cm USB-C host cable.
Business network support
Supports Wake-on-LAN, Auto-MDIX, full-duplex flow control, VLAN tagging and 9K jumbo frames.
Driverless USB hub operation
Supports major operating systems and older USB 2.0 peripherals.
Key highlights
- Up to 5Gbps shared USB data
- 7.4W reserved for hub and downstream operation
- PD input port dedicated to power only
- UASP support
Official StarTech.com 2-year manufacturer warranty in Australia.
Technical specifications
StarTech HB30C3AGEPD · USB-C Hub with Gigabit Ethernet and 60W Power Delivery
Warranty Information
Warranty
2 Years
Hardware
Bus Type
USB 3.0
Chipset ID
VIA/VLI - VL103 | VIA/VLI - VL817S | Realtek - RTL8153B
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Additional detail
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Additional detail
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
Interface
USB 3.0
Additional detail
RJ45 (Gigabit Ethernet)
Ports
3
USB-C Device Port(s)
USB Power Delivery
USB-C Host Connection
Yes
Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Flow Control
Full duplex flow control
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Maximum Data Transfer Rate
5 Gbps (USB 3.0) | 2 Gbps (Ethernet; Full-Duplex)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connectors
Connector Type(s)
1 - USB-C (24 pin) USB Power Delivery only Female
Additional connector
3 - USB Type-A (9 pin) USB 3.0 Female
Additional connector
1 - RJ-45 Female
Additional connector
1 - USB Type-C (24 pin) USB 3.0 (5Gbps) Male
Software
OS Compatibility
Windows® XP, Vista, 7, 8, 8.1, 10 | Windows Server® 2003, 2008 R2, 2012, 2016, 2019 | Mac OS X® 10.7 to 10.14 VLAN tagging is currently not supported in Mac OS | Linux Kernel 2.6.25 to 4.11.x LTS Versions only
System Requirements and Notes
Note
The hub's USB-C port is for USB Power Delivery only. It does not support DisplayPort alt mode, or data transfers.
Additional note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host laptop's USB-C port supports USB Power Delivery 2.0
Additional note
The hub can connect to a host laptops USB-C port that doesnt support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the hub, it will not pass power through to your host laptop.
Additional note
USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements
Available USB Type-C port - USB 3.0 (5Gbps) (to ensure the hub powers and charges your laptop, your host laptop's USB-C port must support USB Power Delivery 2.0)
Additional note
Optional: USB-C power adapter (for example, your laptops USB-C based power adapter)
Power
Power Delivery
60W
Power Source
USB-Powered
Environmental
Humidity
10~90% RH (Non-condensing)
Operating Temperature
0°C to 45°C (32°F to 113°F)
Storage Temperature
-10°C to 70°C (14°F to 158°F)
Physical Characteristics
Cable Length
5.9 in [15 cm]
Color
Black
Enclosure Type
Plastic
Form Factor
Compact
Product Height
0.6 in [1.6 cm]
Product Length
3.7 in [95 mm]
Product Width
1.6 in [41 mm]
Weight of Product
1.6 oz [46 g]
Packaging Information
Package Height
1.3 in [3.3 cm]
Package Length
6.8 in [17.2 cm]
Package Width
5.7 in [14.5 cm]
Shipping (Package) Weight
4.3 oz [122 g]
What's in the Box
Included in Package
1 - USB hub
Additional item
1 - quick-start guide
Auto-Negotiation
Yes
| SKU | HB30C3AGEPD |
| Barcode # | 65030867917 |
| Brand | Startech |
| Shipping Weight | 0.1200kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
