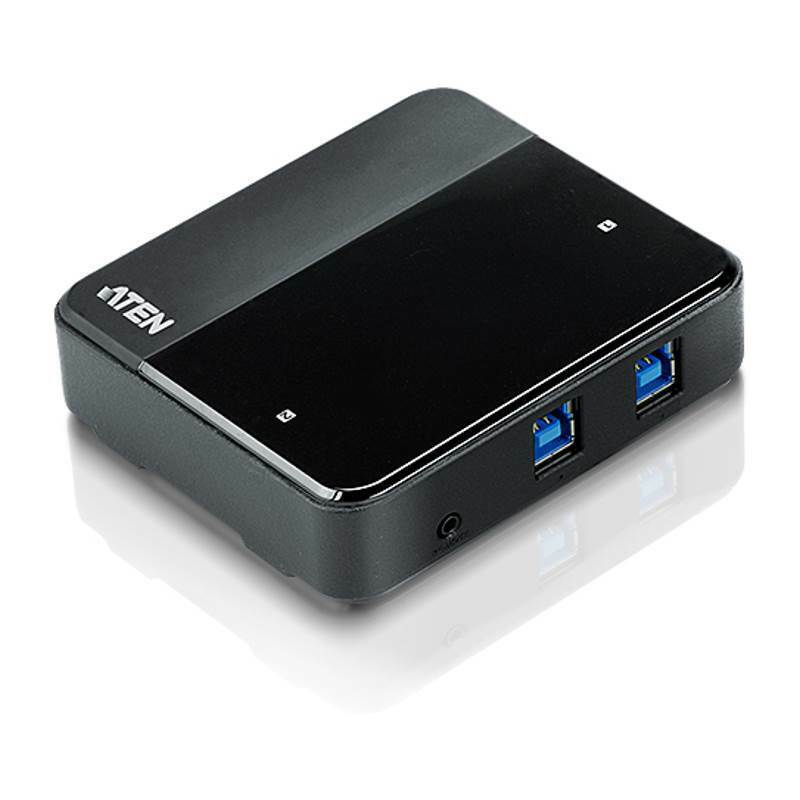

ATEN US234 is a 2-port USB 3.1 Gen1 peripheral sharing device that allows users to share four USB devices between 2 different computers. US234 is USB 3.1 Gen1 compliant, which can support data transfer rate up to 5Gbps and backwards compatible with USB 2.0 and USB1.1. It is perfect for high-bandwidth devices, such as USB docking stations or HD cameras.

In addition, US234 also features an external remote port selector that can simplify desktop layout, and select which computer needs to use the USB devices. With its compact and all-in-one design, you can create a space saving, convenient and productive work environment.

Package Contents

1x US234 2 x 4 USB 3.1 Gen1 Peripheral Sharing Switch
2x USB 3.1 Gen1 Type-B to Type-A Cables
1x Remote Port Selector
1x User Instructions

Enables 2 computers to share 4 USB 3.1 Gen1 devices
Simple port selection via remote port selector for convenient switch placement
USB 3.1 Gen1 compliant, supporting data transfer rates of up to 5 Gbps
LEDs indicates which computer is active
Over-current protection
Multiplatform support – Windows, Linux and Mac
Bus-powered
Micro USB power jack for additional power supply
Hot pluggable, no driver or software required

2-port USB 3.0 Peripheral Sharing Device

Computer Connections	2
Port Selection	Remote port selector
Connectors

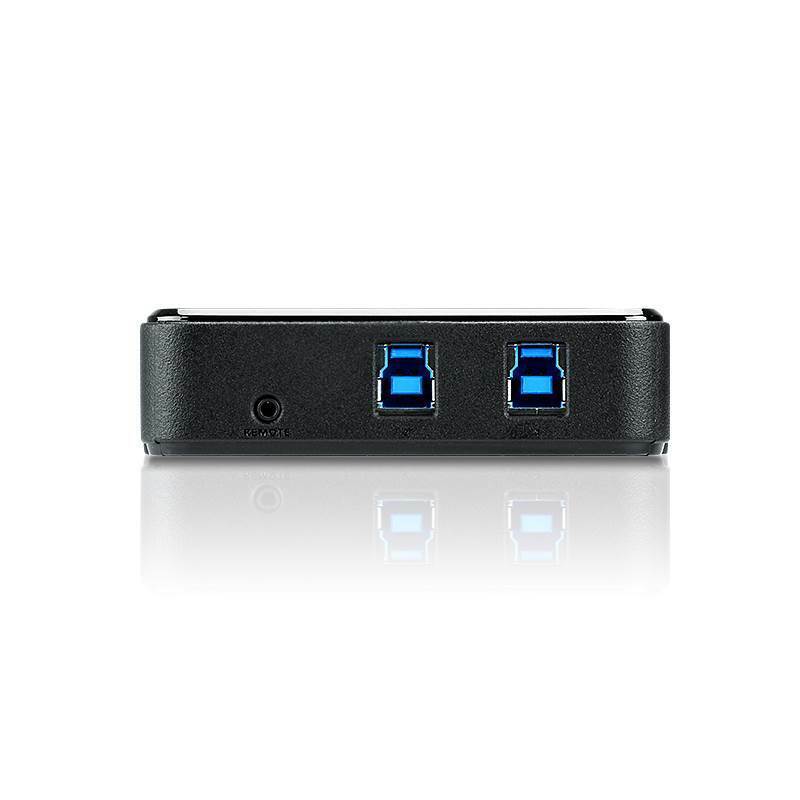

Computer	2 x USB Type B Femal (Blue)

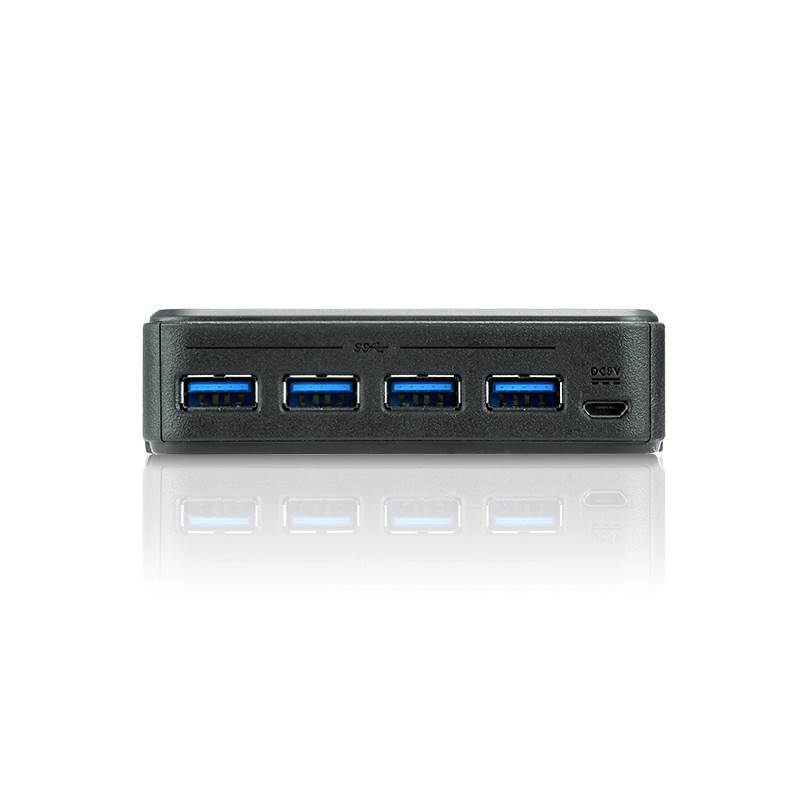

Device	4 x USB Type A Female (Blue)
Power (Optional)	1 x USB micro B Female (Black)
Cable Length
USB Cable	USB 3.1 Gen 1 B to A Cable 1.2m x 2
Remote Port Selector	1.8 m
LEDs
Selected	2 (White)
Environmental
Operating Temperature	0–40°C
Storage Temperature	-20–60°C
Humidity	0–80% RH, Non-condensing
Physical Properties
Housing	Plastic
Weight	0.12 kg ( 0.26 lb )
Dimensions (L x W x H)	9.37 x 9.30 x 2.68 cm (3.69 x 3.66 x 1.06 in.)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

(US234-AT)

Specifications

Compatible Size
Product Type	2-port USB 3.0 peripheral sharing device
Warranty	2 Years
Computer Connections	2
Dimensions (L x W x H)	9.37 x 9.30 x 2.68 cm
LEDs Selected	2 (White)
Operating Humidity	0–80% RH, Non-condensing
Operating Temperature	0–40°C
Port Selection	Remote port selector
Storage Temperature	-20–60°C
Weight	0.12 kg

SKU	US234-AT
Barcode #	672792006821
Brand	ATEN
Shipping Weight	0.3000kg
Shipping Width	0.070m
Shipping Height	0.190m
Shipping Length	0.160m
Shipping Cubic	0.002128000m3
