StarTech.com ST7200USBM

Industrial 7-port USB 2.0 hub with ESD and surge protection

A TAA-compliant steel industrial USB hub with seven USB-A ports, 480Mbps data, 724V terminal-block power, 15kV/8kV ESD protection and 350W surge protection.

7 × USB-A 2.015kV/8kV ESD350W surge protection2-year warranty

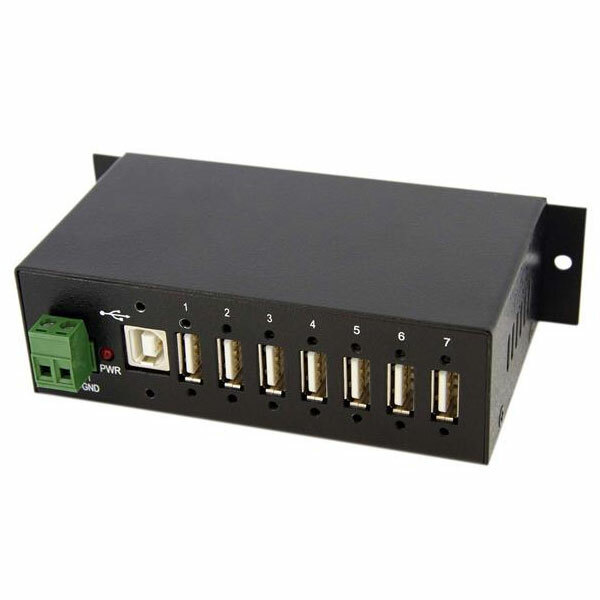

StarTech ST7200USBM industrial seven-port USB 2.0 hub

Key capabilities

Seven USB 2.0 ports

Add seven 480Mbps USB-A connections for industrial or fixed installations.

Industrial protection

Current StarTech data lists ±15kV air / ±8kV contact ESD and 350W surge protection on upstream/downstream USB.

724V terminal-block power

Wide-range DC input supports integration with industrial power infrastructure.

DIN/surface mounting

Steel enclosure includes DIN rails and mounting hardware for rack, wall or desk installations.

What to know before buying

This model is powered through its terminal-block input when external power is required. StarTech lists ITB20D3250 as an optional compatible power adapter sold separately.

Product video

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

How many USB ports does ST7200USBM provide?

Seven USB 2.0 Type-A ports.

What is the maximum data rate?

480Mbps.

Which chipset does it use?

Terminus FE2.1.

What DC input range is supported?

724V DC.

What ESD protection is listed?

±15kV air and ±8kV contact.

What surge protection is listed?

350W on downstream and upstream USB ports.

Can it be DIN-rail mounted?

Yes.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(ST7200USBM)

Features and highlights

Seven USB 2.0 ports

Add seven 480Mbps USB-A connections for industrial or fixed installations.

Industrial protection

Current StarTech data lists ±15kV air / ±8kV contact ESD and 350W surge protection on upstream/downstream USB.

724V terminal-block power

Wide-range DC input supports integration with industrial power infrastructure.

DIN/surface mounting

Steel enclosure includes DIN rails and mounting hardware for rack, wall or desk installations.

7 × USB-A 2.0
15kV/8kV ESD
350W surge protection
2-year warranty

Warranty confidence: Official StarTech.com 2-year manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech ST7200USBM.

Warranty Information

Warranty	2 Years

Hardware

Ports	7
Interface	USB 2.0
Chipset ID	Terminus FE2.1
TAA Compliant	Yes
Enclosure	Steel

Performance

Maximum Data Transfer Rate	480Mbps
ESD Protection	±15kV air / ±8kV contact
Surge Protection	350W on DFP and UFP
MTBF	170,227 hours

Connector(s)

USB Device Ports	7 × USB 2.0 Type-A
Host Port	1 × USB-B
Power	1 × 2-wire terminal block

Power

Power Source	Terminal block
Input Voltage	724V DC
Optional Adapter	ITB20D3250 sold separately

Environmental

Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 85°C
Humidity	595% RH

Physical Characteristics

Product Size	133 × 62 × 36mm
Weight	283g

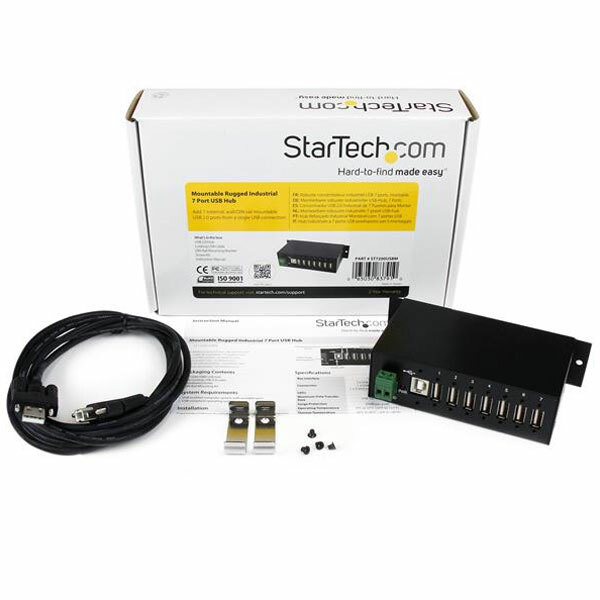

What's in the Box

Included	USB hub; 2 DIN rail brackets; 1.8m locking USB-B to USB-A cable; screw kit; manual

SKU	ST7200USBM
Barcode #	65030837910
Brand	STARTECH
Shipping Weight	0.4800kg
Shipping Width	0.150m
Shipping Height	0.050m
Shipping Length	0.218m
Shipping Cubic	0.001635000m3
