Add eight copper Gigabit Ethernet (GbE) connections with this 8-port Gigabit Ethernet switch, making it easy to deploy or scale your existing network.

Expand Your Network

This versatile GbE switch adapts to your network needs by adding eight RJ45 Ethernet ports. The network switch allows you to connect up to eight RJ45 devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.

Intelligent Layer 2 Management

This Layer 2 switch delivers efficient and stable performance, with Layer 2 management capabilities. It controls packet traffic on a busy network and customizes settings to achieve optimal network performance.

Reliable Network Performance

? 10/100/1000 Mbps transfer speeds ? Jumbo frames ? Redundant 12-58V DC terminal block
? Full/half-duplex auto-negotiation ? Auto MDI/MDIX operation ? IPv4 and IPv6 dual stack management
? Link aggregation ? VLAN tagging ? Spanning tree protocol

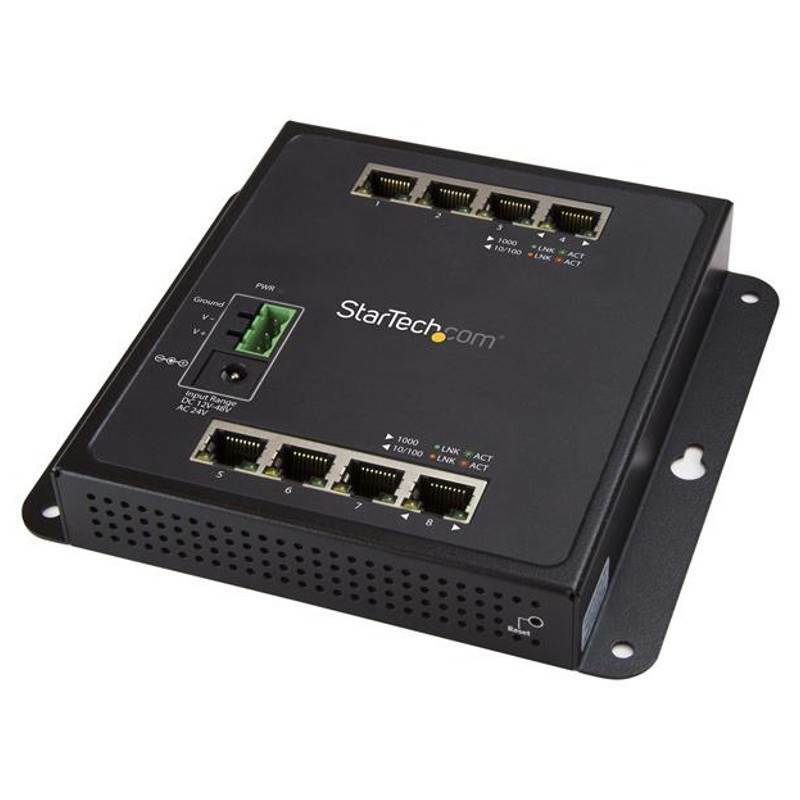

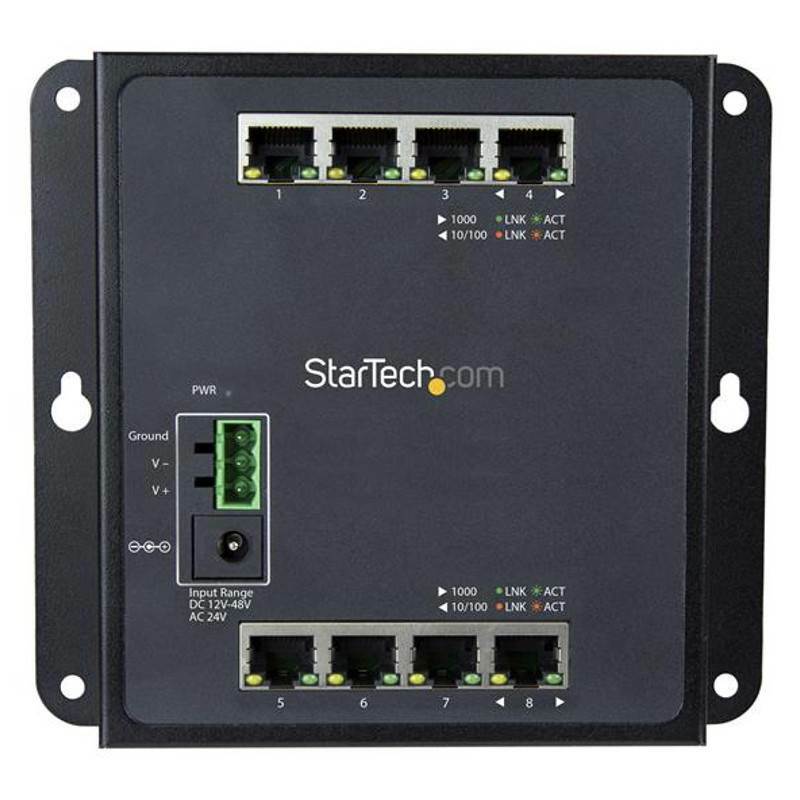

Compact, Mountable and Rugged Design

At only 5.3 x 5.8 inches and 1.08 lb., it is designed to be wall or DIN-rail mounted in tight spaces that are exposed to significant electromagnetic interference while still providing easy port access. The IP30-rated metal housing and extended operating temperature range of -40°C to 75°C makes it ideal for harsh industrial environments.

StarTech.com offers a wide variety of network switches, making it easy to expand your network connections and provide power to devices in hard-to-power locations. This wall-mount Ethernet switch is backed by a 2-year warranty and free lifetime North American based Technical Support.


Applications

  • IP surveillance and building/home networks
  • Expand existing networks with small groups
  • Industrial, non-climate controlled areas

(IES81GW)

Warranty Information
Warranty 2 Years
Hardware
Industry Standards IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control
Ports 8
Performance
Auto MDIX Yes
Buffer Size 512 KB
Compatible Networks 10/100/1000 Mbps
Flow Control IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex
Full Duplex Support Yes
Jumbo Frame Support 9K max.
Maximum Cable Length 328 ft [100 m]
Maximum Data Transfer Rate 2 Gbps (Full-Duplex)
MTBF > 100,000 hrs @ 25 degrees C
Supported Protocols IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP
Surge Protection 6kV ESD, 6kV EFT
Switching Architecture Store-and-Forward
Connector(s)
Connector Type(s) 8 - RJ-45 Female
1 - Terminal Block (3 Wire) Male
Software
OS Compatibility OS Independent; No additional drivers or software required
Indicators
LED Indicators 1 - Power
8 - 10/100 Mbps and Link/Activity (yellow)
1000 Mbps and Link/Activity (green)
Power
Center Tip Polarity Positive
Input Voltage 100 - 240 AC
Output Current 1.5A
Output Voltage 12 DC
Plug Type M
Power Source AC Adapter Included
Environmental
Humidity 5~95% RH (Non-Condensing)
Operating Temperature -40°C to 75°C (-40°F to 167°F)
Storage Temperature -40°C to 90°C (-40°F to 194°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 1 in [2.5 cm]
Product Length 5.3 in [13.4 cm]
Product Width 5.8 in [14.8 cm]
Weight of Product 17.3 oz [490 g]
Packaging Information
Package Height 3.5 in [90 mm]
Package Length 11.8 in [30 cm]
Package Width 6.7 in [17 cm]
Shipping (Package) Weight 2.1 lb [1 kg]

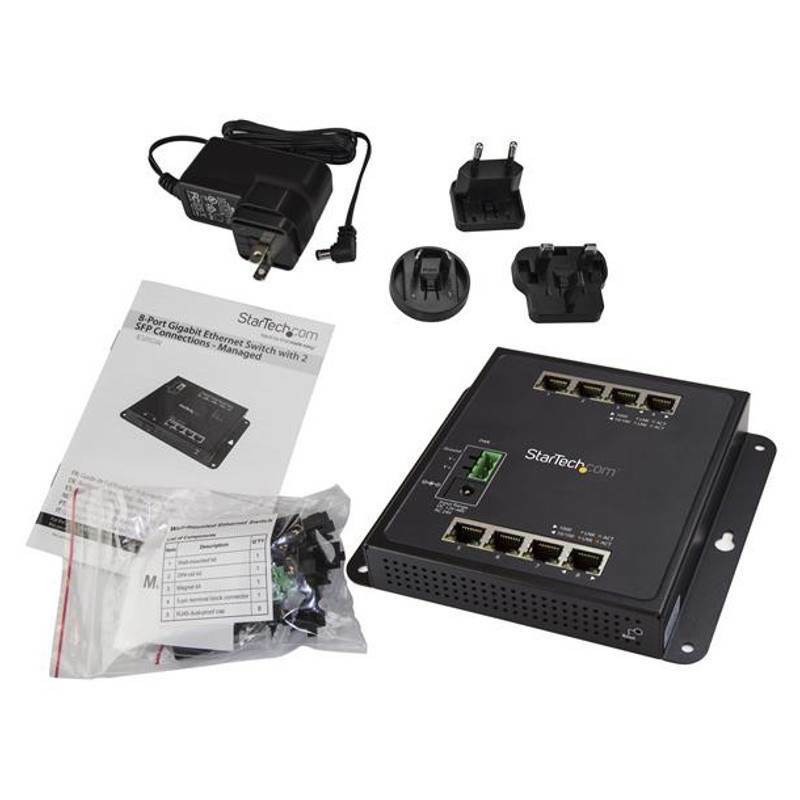

What's in the Box
Included in Package 1 - network switch
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - terminal block connector
4 - screw anchors
4 - screws
4 - attaching pins
4 - locking clips
4 - washers
4 - magnets
1 - DIN rail
3 - DIN-rail screws
8 - dust caps
1 - quick-start guide
SKU IES81GW
Barcode # 65030868457
Brand Startech
Shipping Weight 1.0000kg
Manufacturer Warranty: 2 Years Limited Warranty
