StarTech 8 Port PCIe LP Serial Adapter Card - PEX8S950LP
Model # PEX8S950LP
-
SKU: PEX8S950LP
- Pick Up Available
- Australian Warranty
- Checkout Securely
The PEX8S950LP 8 Port PCI Express Low Profile Serial Adapter Card with dongle cables included offers 8 RS 232 Serial connections via a single PCI Express slot, with data rates up to 921Kbps. Perfect for use with a broad variety of serial peripherals including printers, scanners, industrial controls and more.

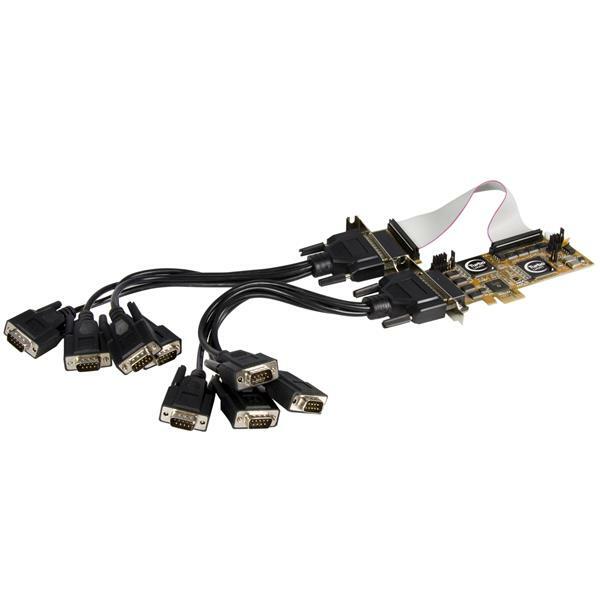

A complete 8 port RS232 Serial card solution, the adapter includes 2 breakout cables – each with 4 DB9 connectors for a total of 8 ports. The perfect choice for adding several additional ports when space is at a premium, the serial adapter card is designed to fit in small/micro form factor computer cases. Plus, this versatile card also includes 2 standard profile brackets for compatibility with full size cases.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Applications
- Manufacturing (CNC machinery, process control equipment, bar code scanners, serial printers)
- POS (credit/debit card readers, receipt printers, bar code scanners, cash registers, scales)
- Consumer (modems, PDAs, digital cameras, printers)
The StarTech.com Advantage
- Includes 2 breakout cables, helping to avoid crowded connections
- Pre-configured with low profile brackets and ships complete with 2 standard profile brackets for compatibility with almost any computer case
- Easy to install and use with full step-by-step instructions for hassle-free integration into your system
(PEX8S950LP)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Bus Type | PCI Express | |
| Card Type | Low Profile (SP bracket incl.) | |
| Chipset ID | PLX/Oxford - OXmPCI952 | |
| Interface | Serial | |
| Port Style | Dongle (Included) | |
| Ports | 8 | |
| Performance | ||
| Data Bits | 5, 6, 7, 8, 9 | |
| FIFO | 128 Bytes | |
| Flow Control | RTS/CTS, XON/XOFF | |
| Max Baud Rate | 921.6 Kbps | |
| Parity | None, Even, Odd, 1, 0 | |
| Serial Protocol | RS-232 | |
| Stop Bits | 1, 1.5, 2 | |
| Connector(s) | ||
| Connector Type(s) | 1 - PCI Express x1 Male | |
| External Ports | 8 - DB-9 (9 pin, D-Sub) Male | |
| Software | ||
| OS Compatibility | Windows® CE 5.0, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2016, 2019 Linux 2.4.x to 4.11.x LTS Versions only | |
| Environmental | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) | |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) | |
| Physical Characteristics | ||
| Cable Length | 11 in [280 mm] | |
| Product Height | 3.1 in [8 cm] | |
| Product Length | 6.2 in [15.7 cm] | |
| Product Width | 0.8 in [20 mm] | |
| Weight of Product | 19.7 oz [559 g] | |
| Packaging Information | ||
| Package Height | 2 in [52 mm] | |
| Package Length | 11.2 in [28.5 cm] | |
| Package Width | 6.3 in [15.9 cm] | |
| Shipping (Package) Weight | 1.6 lb [0.7 kg] | |

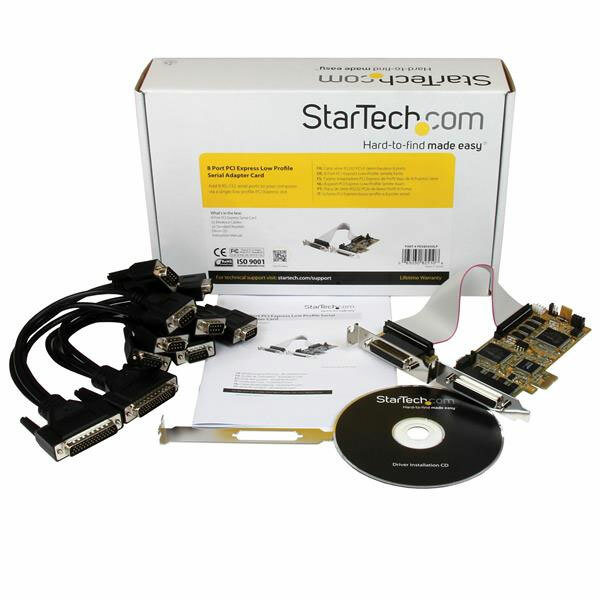

| What's in the Box | ||
| Included in Package | 1 - 8 Port PCI Express Serial Card | |
| 2 - Breakout Cables | ||
| 2 - Standard Brackets | ||
| 16 - Removable Hex Nuts | ||
| 1 - Driver CD | ||
| 1 - Instruction Manual | ||
| SKU | PEX8S950LP |
| Barcode # | 65030825108 |
| Brand | Startech |
| Shipping Weight | 0.8900kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.290m |
| Shipping Cubic | 0.001450000m3 |
