StarTech.com SFPG1320C

Cisco GLC-LH-SMD compatible 1000BASE-LH single-mode SFP

A Cisco GLC-LH-SMD compatible SFP optical transceiver for 1GbE over single-mode fibre, using duplex LC at 1310nm with reach up to 20km.

1GbE / 1.25GbpsSingle-mode fibreLC / 1310nm / 20kmLifetime warranty

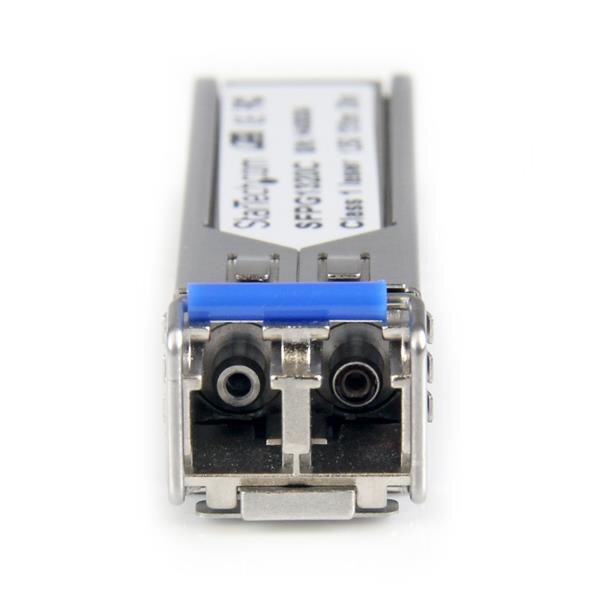

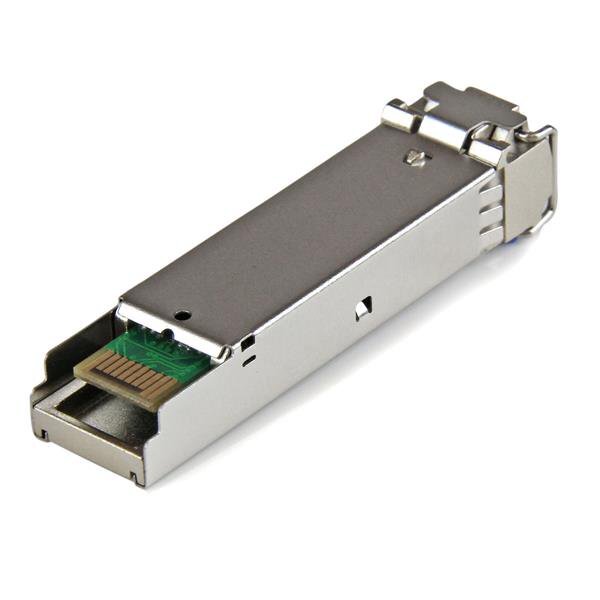

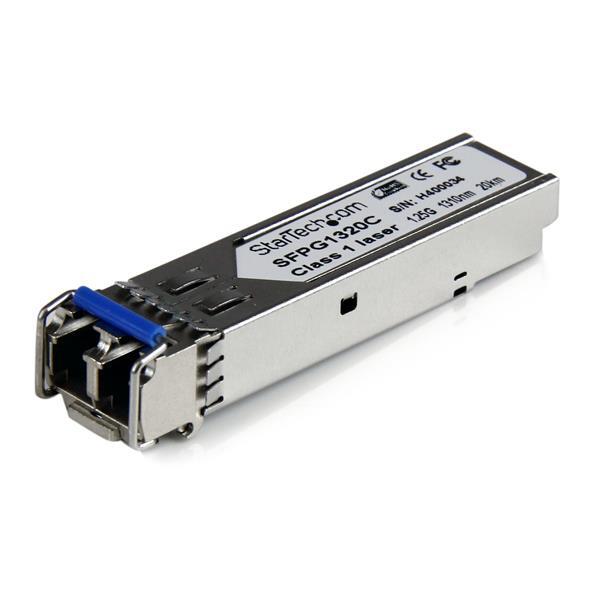

StarTech SFPG1320C Cisco compatible 1000BASE-LH single-mode SFP

Key capabilities

Cisco GLC-LH-SMD compatible

Programmed and tested for compatible Cisco switches and routers.

20km single-mode reach

Supports 1000BASE-LH links up to 20km / 12.4mi.

1310nm duplex LC

Uses a duplex LC optical interface over single-mode fibre.

DDM and hot swap

DDM is supported and the module is hot-swappable.

What to know before buying

Confirm the host accepts Cisco GLC-LH-SMD compatible SFP modules and the installed fibre is suitable single-mode fibre with duplex LC connectivity.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What is the StarTech SFPG1320C compatible with?

Cisco GLC-LH-SMD compatible networking equipment.

What network speed does it support?

1GbE, with a maximum data rate of 1.25Gbps.

What fibre type does it use?

Single-mode fibre.

What connector and wavelength are used?

Duplex LC at 1310nm.

What is the maximum distance?

Up to 20km / 12.4mi.

Does it support DDM?

Yes.

What power consumption is listed?

Less than 1W.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFPG1320C)

Features and highlights

Cisco GLC-LH-SMD compatible

Programmed and tested for compatible Cisco switches and routers.

20km single-mode reach

Supports 1000BASE-LH links up to 20km / 12.4mi.

1310nm duplex LC

Uses a duplex LC optical interface over single-mode fibre.

DDM and hot swap

DDM is supported and the module is hot-swappable.

1GbE / 1.25Gbps
Single-mode fibre
LC / 1310nm / 20km
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFPG1320C.

Warranty Information

Warranty	Lifetime

Hardware

Compatible Brand	Cisco
Industry Standards	IEEE 802.3z 1000BASE-LH
WDM	No

Performance

Compatible Networks	1000 Mbps (1 Gbps)
DDM	Yes
Fiber Operating Mode	Half/Full-Duplex
Max Transfer Distance	20 km (12.4 mi)
Maximum Data Transfer Rate	1.25 Gbps
MTBF	2,722,277 hours
Type	Single Mode
Wavelength	1310nm

Connector(s)

Local Unit Connectors	1 - Fiber Optic LC Duplex Female

Special Notes / Requirements

Note	For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements	MSA or Cisco compliant SFP port

Power

Power Consumption (In Watts)	< 1 W

Environmental

Humidity	30~70% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Product Height	0.4 in [1 cm]
Product Length	2.4 in [60 mm]
Product Width	0.5 in [12 mm]
Weight of Product	0.7 oz [20 g]

Packaging Information

Package Height	1.3 in [33 mm]
Package Length	3.6 in [92 mm]
Package Width	4.6 in [11.8 cm]
Shipping (Package) Weight	1.7 oz [48 g]

What's in the Box

Included in Package	1 - 1.25 Gbps Single Mode LC SFP

SKU	SFPG1320C
Barcode #	65030846677
Brand	Startech
Shipping Weight	0.0500kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.120m
Shipping Cubic	0.000600000m3

Lifetime official manufacturer warranty

StarTech.com warranty in Australia

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase.

Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment. This wording does not promise automatic replacement or guaranteed claim approval.
