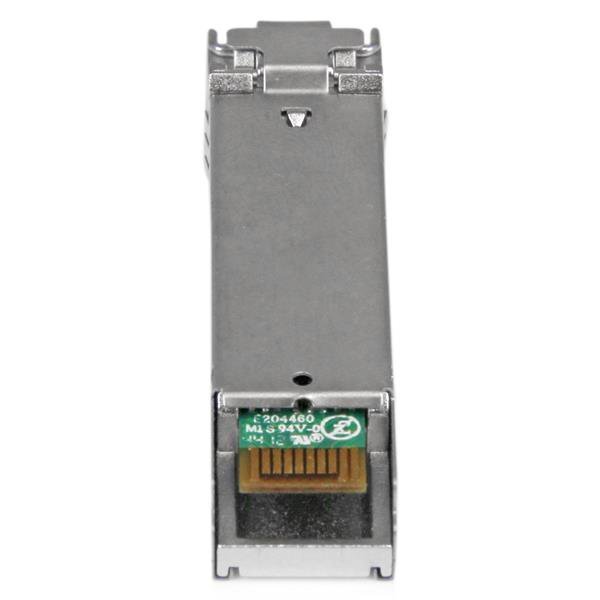

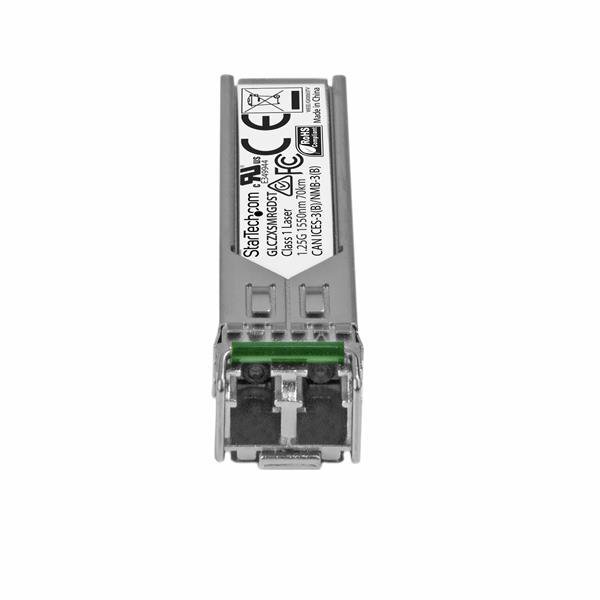

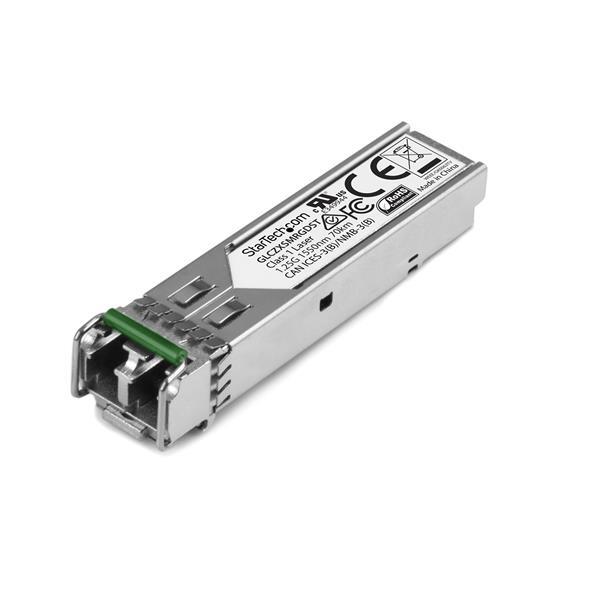

The GLCZXSMRGDST is a Cisco GLC-ZX-SM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco¨ brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-ZX compliant networks, with a maximum distance of up to 70 km (43.5 mi).

Technical Specifications:

  • Wavelength: 1550 nm
  • Maximum Data Transfer Rate: 1.25 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 70 km (43.5 mi)
  • MTBF: 1,536,764 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.


Applications

  • Replacing defective or damaged SFP modules_in Cisco switches and routers
  • Expand your network to remote segments

(GLCZXSMRGDST)

Warranty Information
Warranty Lifetime
Hardware
Compatible Brand Cisco
Industry Standards IEEE 802.3z 1000BASE-ZX
Performance
Compatible Networks 1000 Mbps (1 Gbps)
DDM Yes
Fiber Operating Mode Full-Duplex
Max Transfer Distance 70 km (43.5 mi)
Maximum Data Transfer Rate 1.25 Gbps
MTBF 1,536,764 hours
Type Single Mode
Wavelength 1550nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements MSA or Cisco compliant SFP port
Power
Power Consumption (In Watts) < 1 W
Environmental
Humidity 5~95% RH
Operating Temperature -40¡C to 85¡C (-40¡F to 185¡F)
Storage Temperature -40¡C to 85¡C (-40¡F to 185¡F)
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 0.5 in [1.3 cm]
Product Length 2.2 in [56.6 mm]
Product Width 0.5 in [13.7 mm]
Weight of Product 0.6 oz [16 g]
Packaging Information
Package Height 1.3 in [32 mm]
Package Length 4.7 in [11.9 cm]
Package Width 3.6 in [92 mm]
Shipping (Package) Weight 1.7 oz [48 g]
What's in the Box
Included in Package 1 - SFP transceiver
SKU GLCZXSMRGDST
Barcode # 65030869379
Brand Startech
Shipping Weight 0.5000kg
Shipping Width 9.100m
Shipping Height 3.000m
Shipping Length 11.900m
