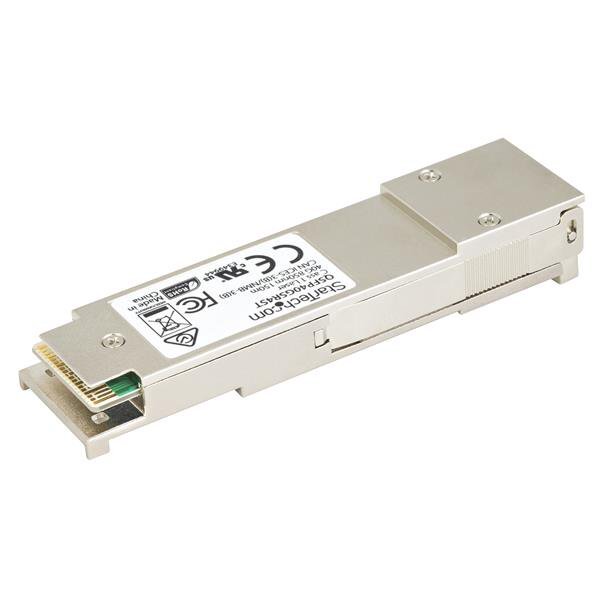

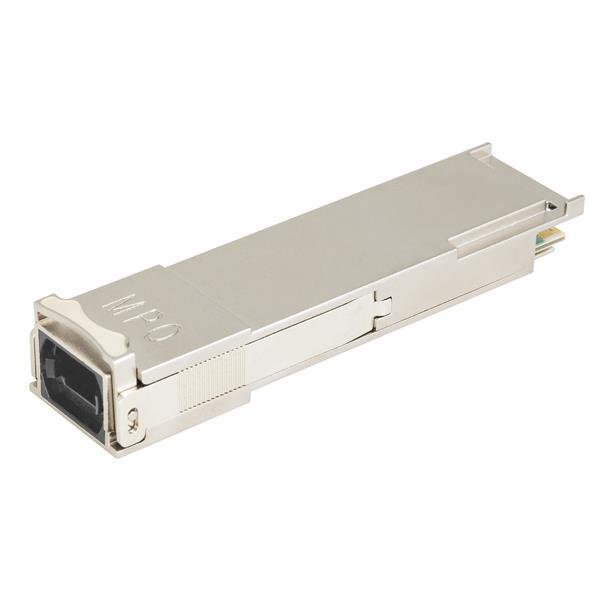

StarTech Cisco QSFP-40G-SR4 Compatible QSFP+ Transceiver Module - 40GBASE-SR4 QSFP40GSR4ST
Model # QSFP40GSR4ST
-
SKU: QSFP40GSR4ST
- Pick Up Available
- Australian Warranty
- Checkout Securely
The QSFP40GSR4ST is a Cisco QSFP-40G-SR4 compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 150 m (492 ft).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 40 Gbps
- Type: Multi Mode Fiber
- Connection Type: MPO Connector
- Maximum Transfer Distance: 150 m (492 ft)
- MTBF: 1,649,326 hours
- Power Consumption: Less than 0.7 Watts
- Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
(QSFP40GSR4ST)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Compatible Brand | Cisco | |
| Industry Standards | IEEE 802.3ba 40GBASE-SR4 | |
| Performance | ||
| Compatible Networks | 40 Gbps | |
| DDM | Yes | |
| Fiber Operating Mode | Full-Duplex | |
| Max Transfer Distance | 150 m (492 ft) | |
| Maximum Data Transfer Rate | 40 Gbps | |
| MTBF | 1,649,326 hours | |
| Type | Multi Mode | |
| Wavelength | 850nm | |
| Connector(s) | ||
| Local Unit Connectors | 1 - MPO Female | |
| Special Notes / Requirements | ||
| Note | For use in 40 Gigabit fiber networking equipment and media converters | |
| System and Cable Requirements | MSA or Cisco compliant QSFP port | |
| Power | ||
| Power Consumption (In Watts) | < 0.7 W | |
| Environmental | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0¡C to 70¡C (32¡F to 158¡F) | |
| Storage Temperature | -40¡C to 85¡C (-40¡F to 185¡F) | |
| Physical Characteristics | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 0.5 in [1.3 cm] | |
| Product Length | 2.8 in [72 mm] | |
| Product Width | 0.7 in [18.4 mm] | |
| Weight of Product | 1.1 oz [32 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [34 mm] | |
| Package Length | 4.6 in [11.7 cm] | |
| Package Width | 3.6 in [92 mm] | |
| Shipping (Package) Weight | 3.4 oz [95 g] | |
| What's in the Box | ||
| Included in Package | 1 - QSFP+ transceiver | |
| SKU | QSFP40GSR4ST |
| Barcode # | 65030868617 |
| Brand | Startech |
| Shipping Weight | 0.0600kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000550000m3 |
