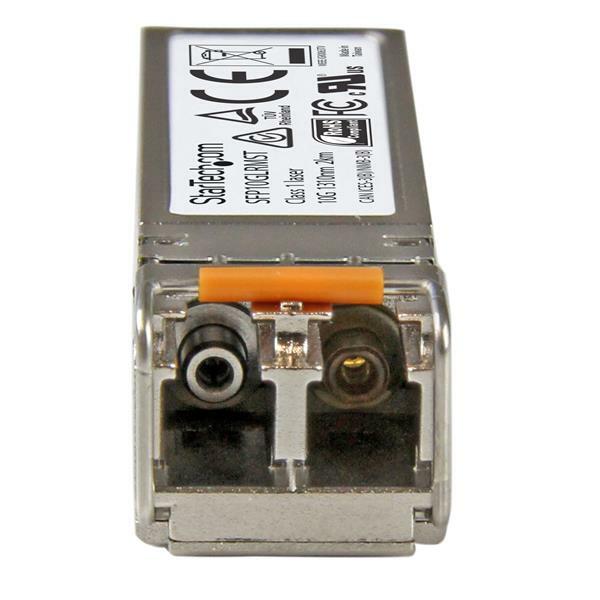

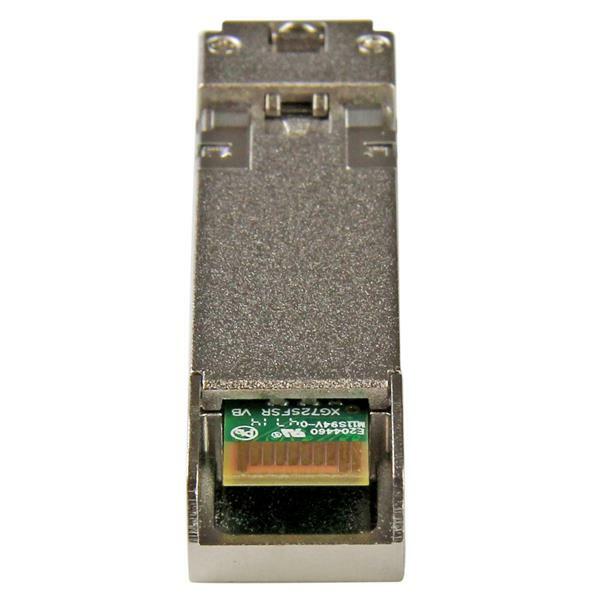

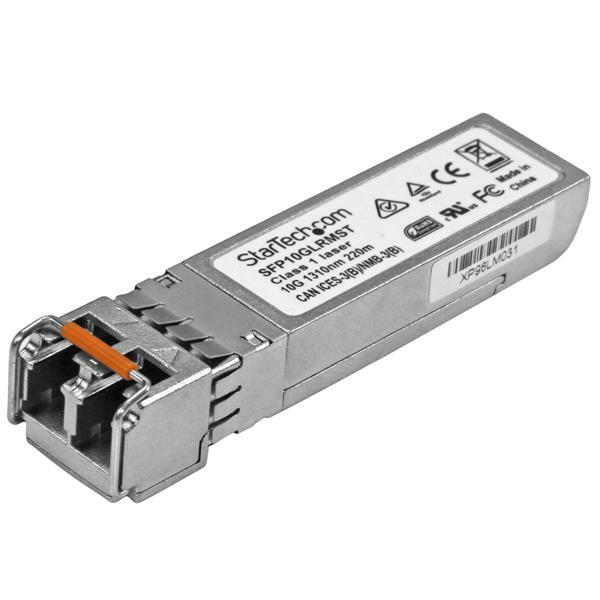

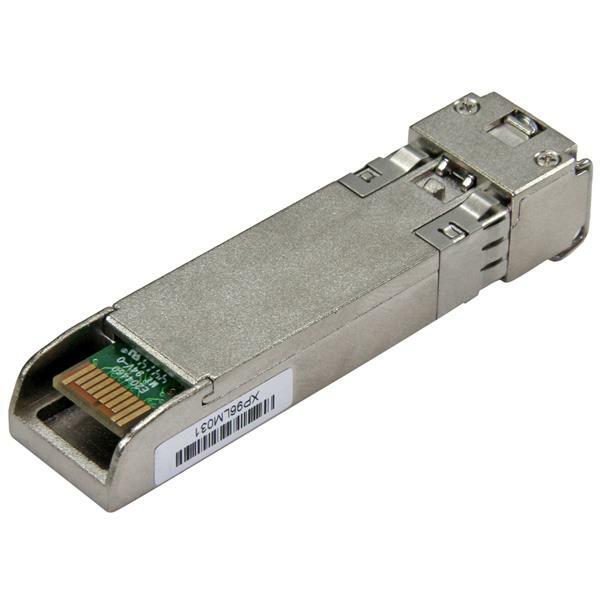

The SFP10GLRMST is a Cisco SFP-10G-LRM compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LRM compliant networks, with a maximum distance of up to 200 m (656 ft).

Technical Specifications:

  • Wavelength: 1310nm
  • Maximum Data Transfer Rate: 10 Gbps
  • Type: Multi Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 200 m (656 ft)
  • MTBF: 1,535,075 hours
  • Power Consumption: Less than 1 Watt
  • Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.


Applications

  • Replacing defective or damaged SFP+ modules?in Cisco switches and routers
  • Expand your network to remote segments

(SFP10GLRMST)

Warranty Information
Warranty Lifetime
Hardware
Compatible Brand Cisco
Industry Standards IEEE 802.3aq 10GBASE-LRM
Performance
Compatible Networks 10 Gbps
DDM Yes
Fiber Operating Mode Full-Duplex
Max Transfer Distance 200 m (656 ft)
Maximum Data Transfer Rate 10G
MTBF 1,535,075 hours
Type Multi Mode
Wavelength 1310nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note For use in 10 Gigabit fiber networking equipment and media converters
System and Cable Requirements MSA or Cisco compliant SFP port
Power
Power Consumption (In Watts) < 1 W
Environmental
Humidity 30% ~ 75% RH
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Physical Characteristics
Color Silver
Enclosure Type Aluminum and Steel
Product Height 0.5 in [1.3 cm]
Product Length 2.3 in [58.4 mm]
Product Width 0.5 in [13.9 mm]
Weight of Product 0.7 oz [20 g]
Packaging Information
Package Height 1.3 in [34 mm]
Package Length 4.6 in [11.7 cm]
Package Width 3.7 in [93 mm]
Shipping (Package) Weight 3.4 oz [95 g]
What's in the Box
Included in Package 1 - SFP+ transceiver
SKU SFP10GLRMST
Barcode # 65030864282
Brand Startech
Shipping Weight 0.5000kg
Manufacturer Warranty: Limited Product Lifetime Warranty
