StarTech Dell EMC SFP-1G-BX10-U Compatible, 1GbE BiDi SMF SFP - SFP1GBX10UES
Model # SFP1GBX10UES
-
SKU: SFP1GBX10UES
- Pick Up Available
- Australian Warranty
- Checkout Securely

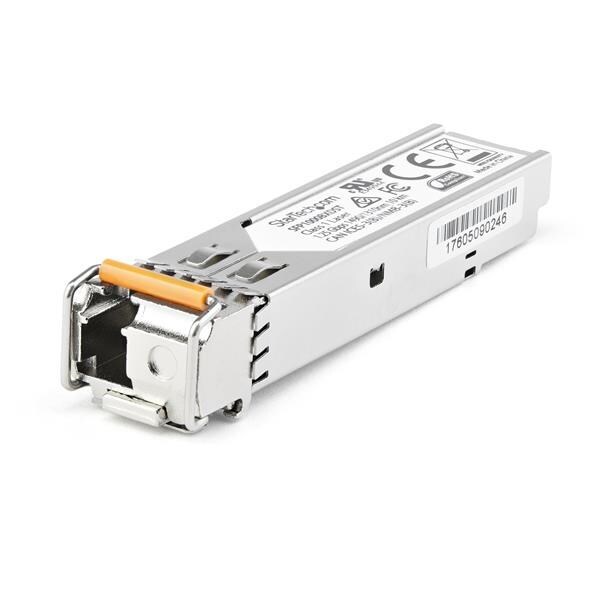

The SFP1GBX10UES is a Dell EMC SFP-1G-BX10-U compatible upstream fiber SFP transceiver which pairs with StarTech.com's SFP1GBX10DES. They are designed, programmed and tested to work with 1000BASE-BX10 compatible Dell EMC switches and routers. The SFP transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1310nmTx/1490nmRx
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,713,222 hours
- Power Consumption:< 1.3W
- DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
(SFP1GBX10UES)
Specifications
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Material | Steel | |
| Hardware | Compatible Brand | Dell EMC |
| Industry Standards | IEEE 802.3 1000BASE-BX10 | |
| Packaging Information | Package Height | 1.2 in [31 mm] |
| Package Length | 4.5 in [11.5 cm] | |
| Shipping (Package) Weight | 1.8 oz [50 g] | |
| Package Width | 3.5 in [90 mm] | |
| Performance | Power Consumption (In Watts) | < 1.3W |
| DDM | Yes | |
| MTBF | 3,713,222 hours | |
| Type | Single Mode | |
| Compatible Networks | 1000 Mbps (1 Gbps) | |
| Maximum Data Transfer Rate | 1.0 Gbps | |
| Max Transfer Distance | 10 km (6.2 mi) | |
| Wavelength | 1310nmTx/1490nmRx | |
| 1310nmTx/1490nmRx | ||
| Fiber Operating Mode | Full-Duplex | |
| Physical Characteristics | Product Height | 0.5 in [12.6 mm] |
| Product Length | 0.5 in [13.9 mm] | |
| Weight of Product | 1.1 oz [30 g] | |
| Product Width | 2.3 in [58.4 mm] | |
| What's in the Box | 1 - Included in Package | SFP Transceiver |
| SKU | SFP1GBX10UES |
| Barcode # | 65030883269 |
| Brand | Startech |
| Shipping Weight | 0.0400kg |
