STARTECH.COM | DP14MDPMM2MB

2m Mini DisplayPort to DisplayPort 1.4 Cable for 8K 60Hz

Connect a Mini DisplayPort computer or workstation to a full-size DisplayPort monitor, TV or projector with a 2m VESA-certified cable supporting high-bandwidth DP 1.4 video.

Mini DP to full-size DP

Links a Mini DisplayPort source to a monitor, TV or projector with a standard DisplayPort input.

8K and high refresh

Supports up to 8K 60Hz or 4K 120Hz when both endpoints provide the required DisplayPort 1.4 features.

Slim installation cable

34AWG conductors, a 4.5mm cable diameter and a black PVC jacket keep the cable flexible for desk and display routing.

What to know

The Mini DisplayPort source must support the required DisplayPort version and features. A Thunderbolt 2 port uses the same connector, but maximum output depends on that hosts supported DisplayPort mode. This cable is intended for Mini DisplayPort source to full-size DisplayPort display connections.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official Lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DP14MDPMM2MB connect?

It connects a Mini DisplayPort output on a computer or workstation to a full-size DisplayPort input on a monitor, TV or projector.

What maximum resolution does the DP14MDPMM2MB support?

It supports up to 7680 × 4320 at 60Hz or 3840 × 2160 at 120Hz when the source, display and graphics hardware support the required DisplayPort 1.4 features.

How long is the DP14MDPMM2MB?

It is 2m (6.6ft) long.

What must the Mini DisplayPort source support?

Maximum performance requires a Mini DisplayPort 1.4 source with HBR3 and the appropriate graphics capability. Older sources operate only at their supported resolution and refresh rate.

Can the DP14MDPMM2MB be used with Thunderbolt 2?

It can connect to a Thunderbolt 2 port that provides Mini DisplayPort video output, but resolution and refresh rate are limited by the hosts supported DisplayPort mode.

Which DisplayPort features does the DP14MDPMM2MB support?

It supports HBR3, DSC 1.2, HDR metadata transport, MST, Forward Error Correction, HDCP 2.2 and DPCP when the connected equipment supports them.

Does the DP14MDPMM2MB require external power?

No. It is a passive cable and does not use a separate power adapter.

Is the DP14MDPMM2MB VESA certified and what warranty applies?

VESA certification confirms compliance with DisplayPort 1.4 and HBR3 requirements. The cable is backed by a lifetime StarTech.com manufacturer warranty.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DP14MDPMM2MB)

Features and highlights

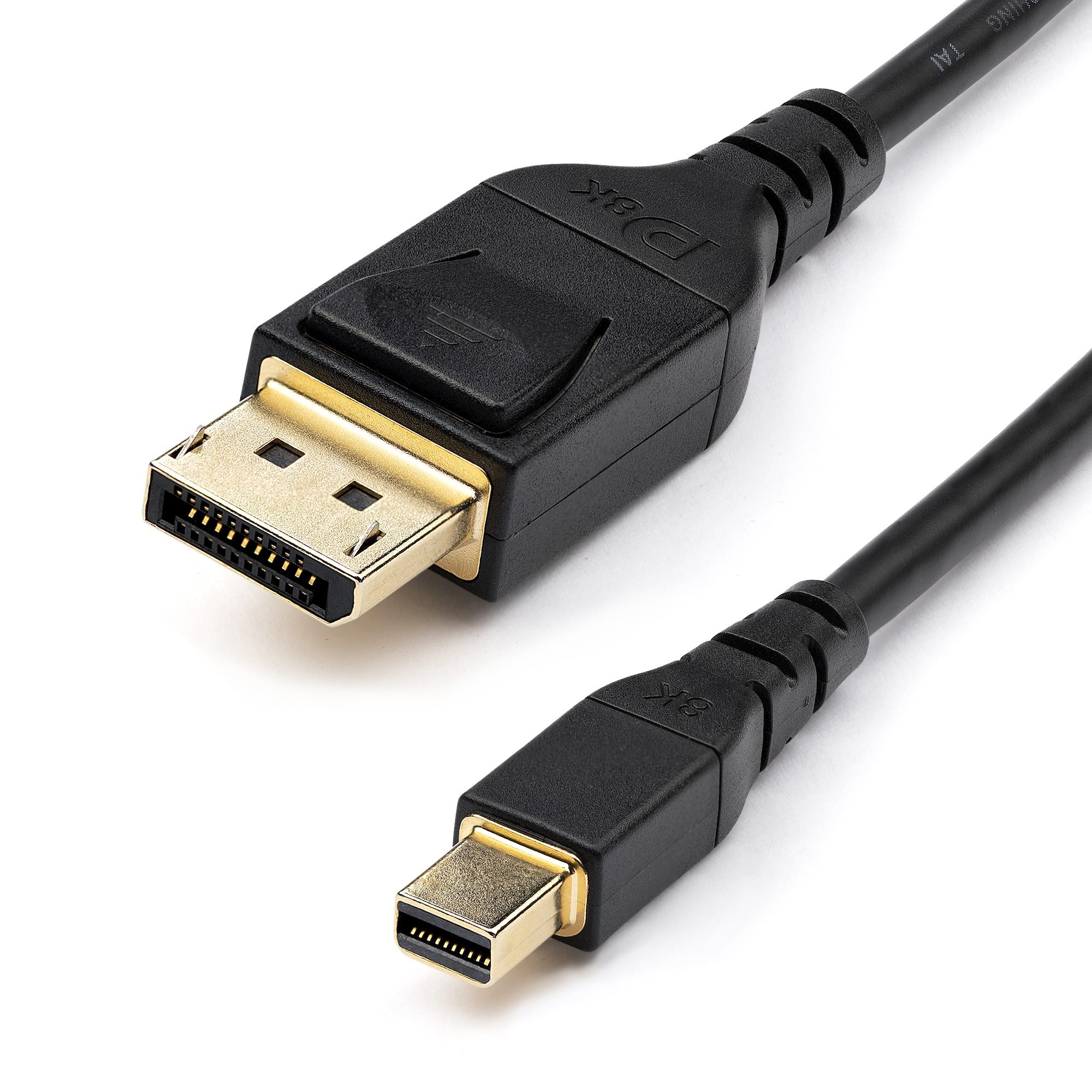

2m (6.6ft) Mini DisplayPort male to DisplayPort male cable
VESA-certified DisplayPort 1.4 connection with HBR3 bandwidth up to 32.4Gbps
Supports up to 7680 × 4320 at 60Hz or 3840 × 2160 at 120Hz with compatible equipment
Supports Display Stream Compression 1.2, HDR metadata transport and Forward Error Correction
MST support enables daisy-chained displays when the source, displays and topology support it
HDCP 2.2 and DPCP support protected-content workflows
34AWG construction with aluminum-mylar foil and braid shielding

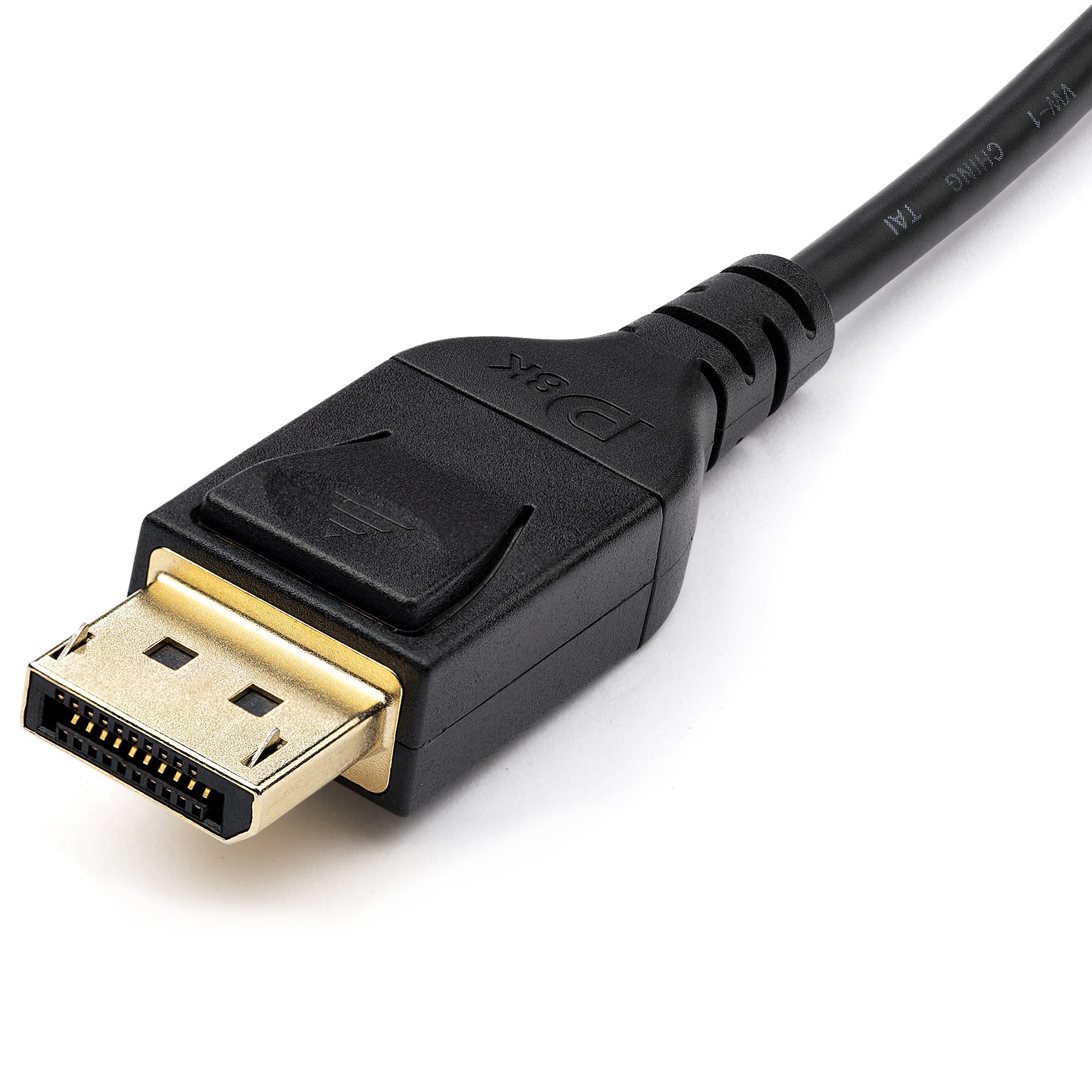

Gold-plated full-size DisplayPort connector includes a latch for a secure fit
Lifetime StarTech.com manufacturer warranty

Compatibility check: Maximum 8K and 4K refresh rates require a suitable Mini DisplayPort 1.4 source, DisplayPort 1.4 display and compatible graphics hardware. Older Mini DisplayPort or Thunderbolt 2 hosts operate only at the modes they support.

Specifications

Product type	VESA-certified Mini DisplayPort to DisplayPort 1.4 cable

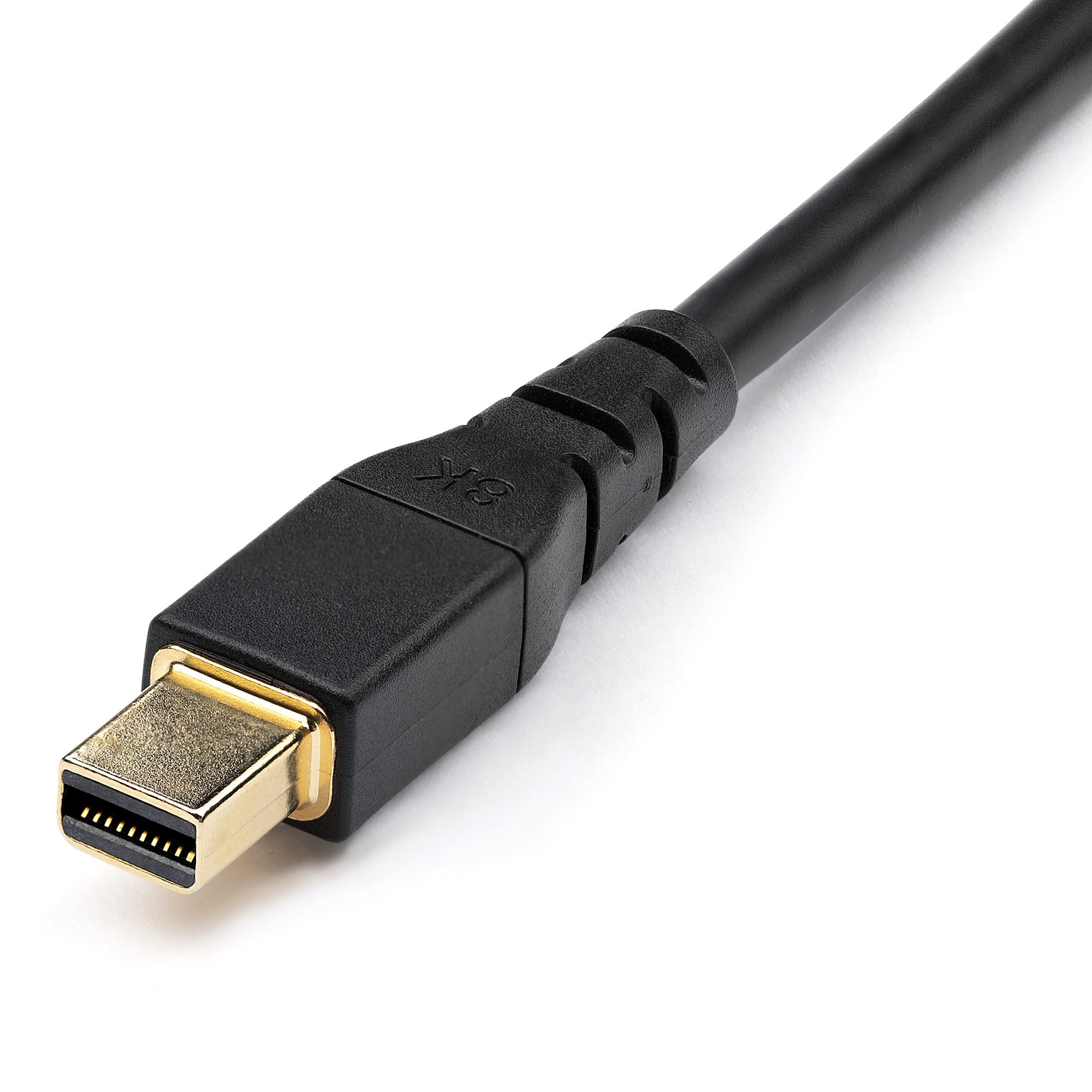

Source connector	1 × Mini DisplayPort male, 20-pin
Display connector	1 × DisplayPort male, 20-pin, latching
Cable length	2m (6.6ft)
Maximum video modes	Up to 7680 × 4320 at 60Hz or 3840 × 2160 at 120Hz with compatible equipment
Bandwidth	HBR3, up to 32.4Gbps
Display features	DSC 1.2, HDR metadata transport, MST, FEC, HDCP 2.2 and DPCP
Audio	Up to 32 uncompressed digital audio channels and 1536kHz sample rate
Construction	34AWG; 4.5mm cable outer diameter; gold-plated connector; aluminum-mylar foil with braid shielding
Jacket and colour	Black PVC
Operating environment	0°C to 50°C; 0% to 85% relative humidity
Power	Passive cable; no external power adapter required
In the box	1 × 6.6ft Mini DisplayPort to DisplayPort cable
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DP14MDPMM2MB
Barcode #	65030876025
Brand	STARTECH
Shipping Weight	0.0900kg
Shipping Width	0.002m
Shipping Height	0.016m
Shipping Length	0.015m

Warranty and Australian supply

DP14MDPMM2MB is supplied by DeviceDeal as an Australian-market product and carries the official Lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
