The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).

A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

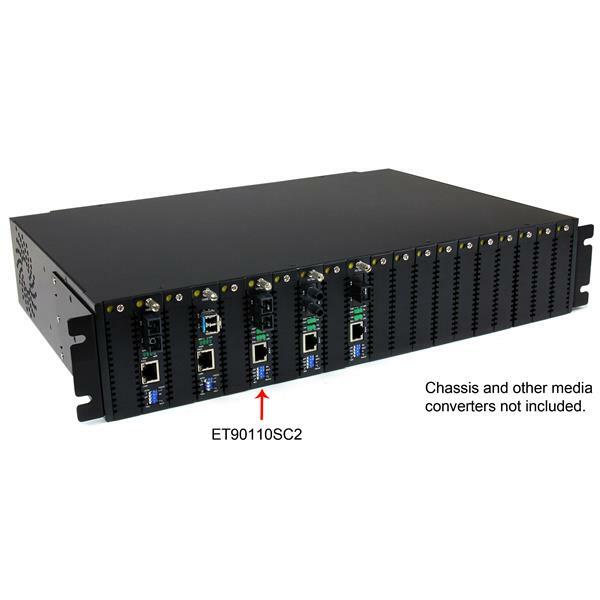

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secure environments required by government agencies where EMI is not acceptable
  • Connect traffic control/monitoring systems at extreme distances to the main office
+ More- Less

(ET90110SC2)

Warranty Information
Warranty 2 Years
Hardware
Industry Standards IEEE802.3 (10BASE-T)
IEEE802.3u (100BASE-TX)
IEEE802.3u (100BASE-FX)
PoE No
WDM No
Performance
Auto MDIX Yes
Fiber Operating Mode Half/Full-Duplex
Max Transfer Distance 2 km (1.2 mi)
Maximum Data Transfer Rate 200 Mbps (Full Duplex Mode)
Type Multi Mode
Wavelength 1310nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic SC Duplex Female
1 - RJ-45 Female

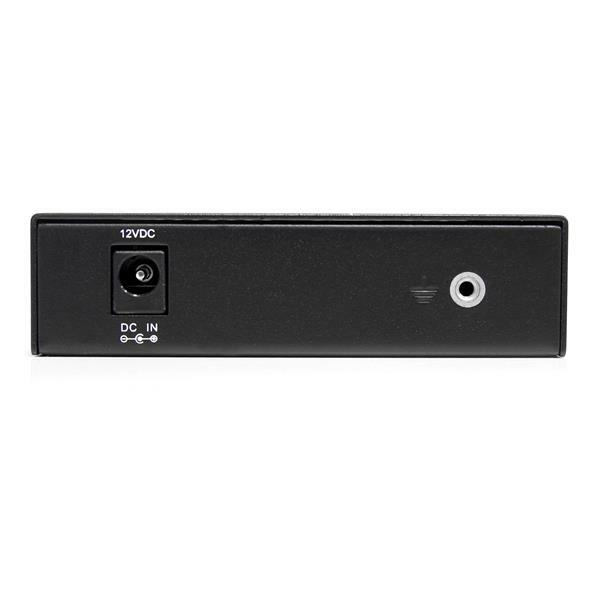

Power
Center Tip Polarity Positive
Input Current 0.48A
Input Voltage 100 - 240 AC
Output Current 1.6 A
Output Voltage 12 DC
Plug Type M
Power Source AC Adapter Included
Environmental
Humidity 10~90% RH
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 0.9 in [2.4 cm]
Product Length 6 in [15.3 cm]
Product Width 3.4 in [87 mm]
Weight of Product 13.8 oz [390 g]
Packaging Information
Package Height 3 in [77 mm]
Package Length 9.2 in [23.3 cm]
Package Width 7.5 in [19 cm]
Shipping (Package) Weight 27.5 oz [779 g]

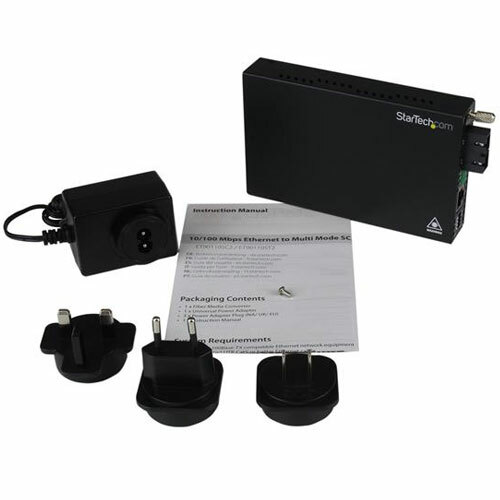

What's in the Box
Included in Package 1 - Fiber Media Converter
1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
1 - Grounding Screw
1 - Instruction Manual
SKU ET90110SC2
Barcode # 65030846240
Brand Startech
Shipping Weight 1.0000kg
Manufacturer Warranty: 2 Years Limited Warranty
