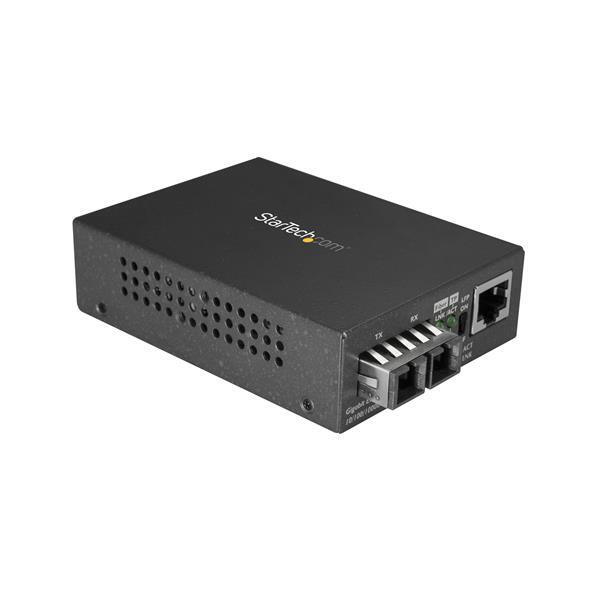

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber


This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Extend an Ethernet connection by up to 550 m (0.34 miles) over a fiber backbone
  • Create an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber-optic networks/backbones
  • Converts Ethernet to fiber, and fiber to copper to provide a cost-effective networking solution

(MCMGBSCMM055)

Warranty Information
Warranty 2 Years
Hardware
Industry Standards IEEE 802.3z 1000BASE-SX
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x full-duplex flow control
IEEE 802.3 10BASE-T
IEEE 802.1q VLAN pass through
PoE No
WDM No
Performance
Auto MDIX Yes
Fiber Operating Mode Full-Duplex
Jumbo Frame Support 9K max.
Max Transfer Distance 550 m (1804 ft)
Maximum Data Transfer Rate 1000 Mbps (1 Gbps)
MTBF > 50,000 hours at 25¡C
Supports a maximum distance of 550 m over MM fiber-optic cable (SC connection), and 100m over copper (RJ45 connection)
Data Transfer Rate Copper
10/100/1000 Mbps
Data Transfer Rate Fiber: 1000 Mbps
ESD Surge Protection: 1KV. Contact discharge - 4KV. Air discharge - 8KV
Switching Architecture Store-and-Forward
Type Multi Mode
Wavelength 850nm
Connector(s)
Local Unit Connectors 1 - RJ-45 Female
Remote Unit Connectors 1 - Fiber Optic SC Duplex Female
Indicators
LED Indicators 1 - 1000 Link: ON - Valid Gigabit Link
1 - FX Link/Activity
1 - Power
1 - TP Link/Activity
Power
Center Tip Polarity Positive
Input Current 0.5 A
Input Voltage 100 - 240 AC
Output Current 2.6 A
Output Voltage 5 DC
Plug Type N
Power Consumption (In Watts) 5
Power Source AC Adapter Included
Environmental
Humidity 5 ~ 90% RH
Operating Temperature 0¡C to 50¡C (32¡F to 122¡F)
Storage Temperature -10¡C to 70¡C (14¡F to 158¡F)
Physical Characteristics
Color Brown
Enclosure Type Steel
Product Height 1 in [2.6 cm]
Product Length 2.8 in [70 mm]
Product Width 3.8 in [97 mm]
Weight of Product 7.1 oz [200 g]
Packaging Information
Package Height 2.6 in [66 mm]
Package Length 5.2 in [13.3 cm]
Package Width 11 in [28 cm]
Shipping (Package) Weight 19.9 oz [564 g]
What's in the Box
Included in Package 1 - media converter
1 - universal power adapter (NA/JP, UK, EU, ANZ)
1 - quick-start guide
SKU MCMGBSCMM055
Barcode # 65030878227
Brand Startech
Shipping Weight 0.5500kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.280m
Shipping Cubic 0.001400000m3
