StarTech.com · MCM110SC2

StarTech MCM110SC2 10/100 Ethernet to SC Multimode Fibre Converter

10/100 Ethernet to SC Multimode Fibre Converter designed for professional IT, electronics, security or workstation use.

Quick answer: MCM110SC2 converts 10/100BASE-TX RJ45 Ethernet to 100BASE-FX multimode fibre for links up to 2km.

Best forExtending Fast Ethernet between buildings, rooms or remote equipment over existing duplex SC multimode fibre.

Check before orderingRequires duplex SC multimode fibre at 1310nm; the copper port is 10/100Mbps and does not provide PoE.

Answers before you buy

Frequently asked questions

What is StarTech MCM110SC2?

It is a Fast Ethernet copper-to-fibre media converter with duplex SC optics that converts 10/100BASE-TX RJ45 Ethernet to 100BASE-FX multimode fibre for links up to 2km.

Which connections or mounting method are provided?

One RJ45 female port and one duplex SC fibre female port

What performance is specified?

10/100Mbps; 1310nm multimode; half/full duplex; up to 2km

How is the product constructed?

Compact black plastic standalone converter with status LEDs and included AC adapter

How far can the fibre link reach?

The specified maximum distance is 2km over compatible multimode fibre.

Does this converter supply PoE?

No. The converter does not provide Power over Ethernet.

What should be checked before ordering?

Requires duplex SC multimode fibre at 1310nm; the copper port is 10/100Mbps and does not provide PoE.

What warranty applies?

MCM110SC2 carries a StarTech.com 2 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MCM110SC2)

Features & highlights

Why choose MCM110SC2?

?Purpose-built designOne RJ45 female port and one duplex SC fibre female port

?Specified performance10/100Mbps; 1310nm multimode; half/full duplex; up to 2km

?Professional constructionCompact black plastic standalone converter with status LEDs and included AC adapter

?Key capabilityTransparent copper-to-fibre conversion extends Ethernet far beyond standard copper distance.

?Deployment advantageAuto MDI/MDI-X simplifies connection to switches, routers and end devices.

?Order with confidenceRequires duplex SC multimode fibre at 1310nm; the copper port is 10/100Mbps and does not provide PoE.

Compatibility reminder: Requires duplex SC multimode fibre at 1310nm; the copper port is 10/100Mbps and does not provide PoE.

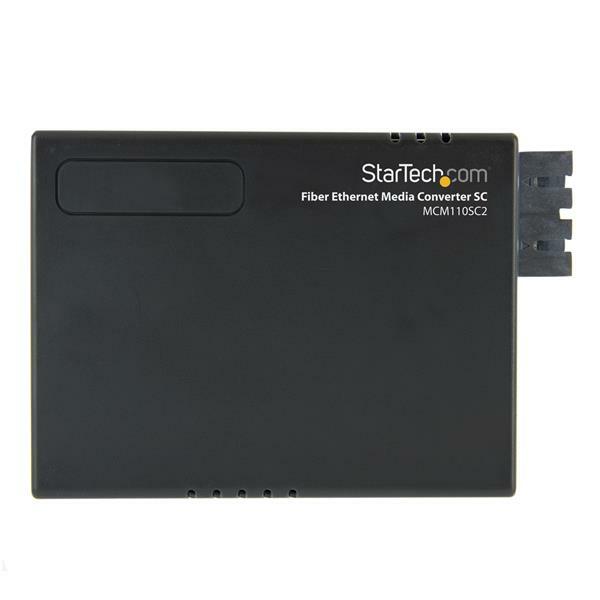

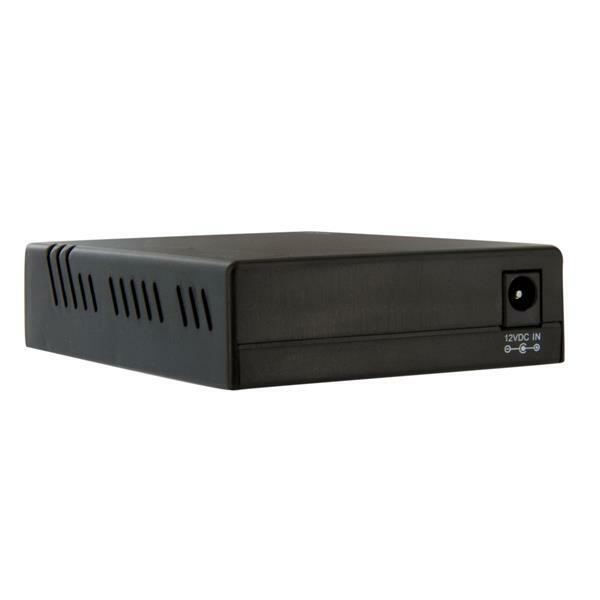

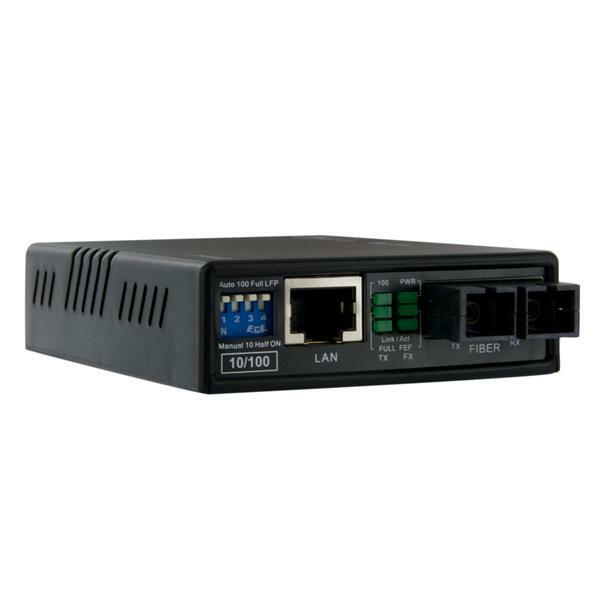

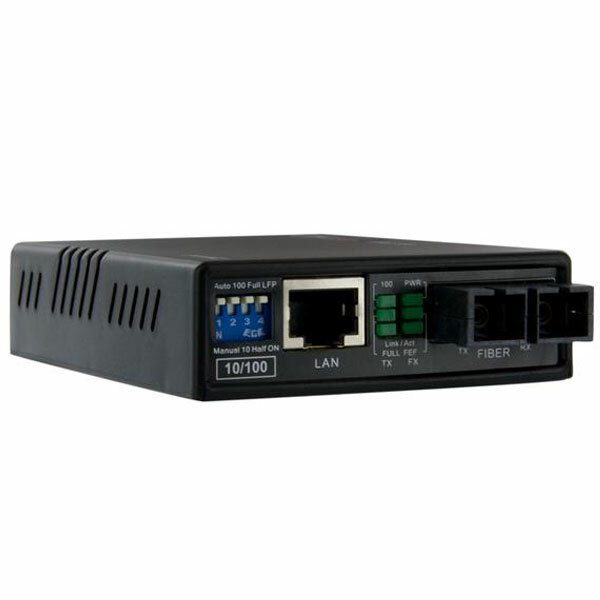

StarTech MCM110SC2 10/100 Ethernet to SC Multimode Fibre Converter product image

Technical specifications

MCM110SC2 specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	2 Years
Standards and Hardware
Standards	IEEE 802.3 10BASE-T; 802.3u 100BASE-TX / 100BASE-FX
PoE / WDM	No / No
Connectors
Copper Port	1 × RJ45 female
Fibre Port	1 × duplex SC female
Performance
Maximum Data Rate	10/100Mbps
Fibre Type	Multimode, half/full duplex
Wavelength	1310nm
Maximum Distance	2km
MTBF	65,000 hours
Power and Physical
Power	Included 100240V AC adapter; 12V DC output
Consumption	2.4W
Dimensions	95 × 75 × 20mm
Product Weight	84g
What's in the Box
Included	Media converter; power adapter; user manual

Sources: https://www.devicedeal.com.au/startech-fiber-to-ethernet-media-converter-sc and https://www.startech.com/

SKU	MCM110SC2
Barcode #	65030835626
Brand	Startech
Shipping Weight	0.2800kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.170m
Shipping Cubic	0.000850000m3
