UF-LOCO

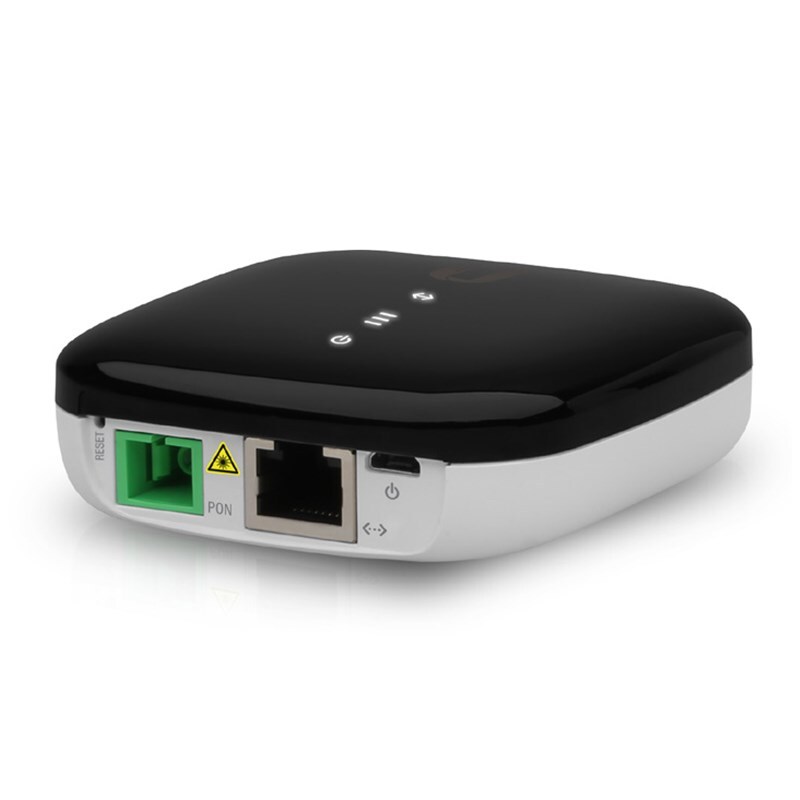

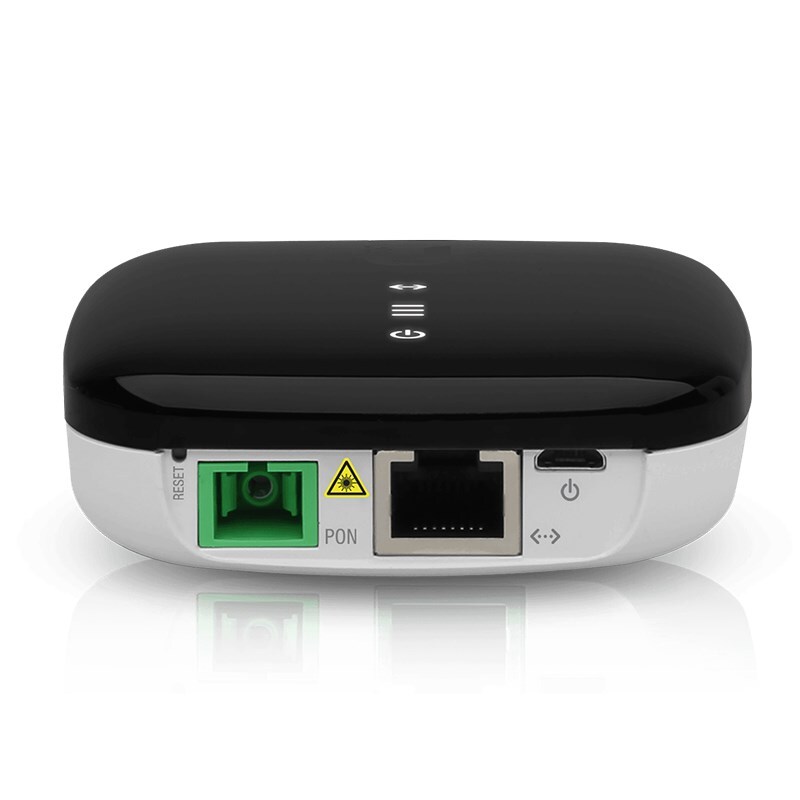

Ubiquiti Networks UFiber Loco Gigabit Passive Optical Network CPE - Interface: 1x GPON Port (WAN), 1x Gigabit Ethernet LAN Port - GPON Speeds: 2.488 Gbps Downstream (RX), 1.244 Gbps Upstream (TX) - Wavelengths: 1490 nm Downstream (RX), 1310 nm Upstream (TX) - 3.5W Max. Power Consumption - Power Method: 24V Passive PoE or Micro-USB Power Adapter - Wall Mountable (in-Door0

(UF-LOCO)

Ubiquiti Networks UF-LOCO Specs

Network Interfaces Networking Interface Speeds
1 x GPON WAN, ITU G.984
2.488 Gb/s downstream
1.244 Gb/s upstream
1 x GbE LAN, 10/100/1000 Mb/s
Management Interface In-Band Ethernet / PON
Power Normal Optical Power Range
TX (Class B+): 1.5 to 5 dBm
RX: -8 to -28 dBm
Power Method
Micro-USB: 5 V / 1 A
24 V Passive PoE (Pins +4, 5; -7, 8)
Power Supply
Micro-USB Power Adapter: 5 V / 1 A
Max. Power Consumption
3.5 W
Supported Voltage Range
4.7 to 5.3 V
Processor MIPS-32, 240 MHz
Memory 128 MB DDR3
Buttons 1 x Reset
Temperature & Humidity Operating Temperature
14 to 113°F / -10 to 45°C
Operating Humidity
10 to 90% non-condensing
Certifications CE, FCC, IC
Dimensions 3.01 x 3.01 x 1.04" / 76.5 x 76.5 x 26.4 mm
Weight 2.72 oz / 77 g
Packaging Info
Package Weight 0.65 lb
Box Dimensions (LxWxH) 4.95 x 4.8 x 3.3"
SKU UF-LOCO
Barcode # 817882021777
Brand Ubiquiti
Shipping Weight 4.8260kg
Shipping Width 0.385m
Shipping Height 0.094m
Shipping Length 0.583m
Shipping Cubic 0.021099000m3
Manufacturer Warranty : 1 Year Manufacturer Warranty
