MIKROTIK FTC21-ups

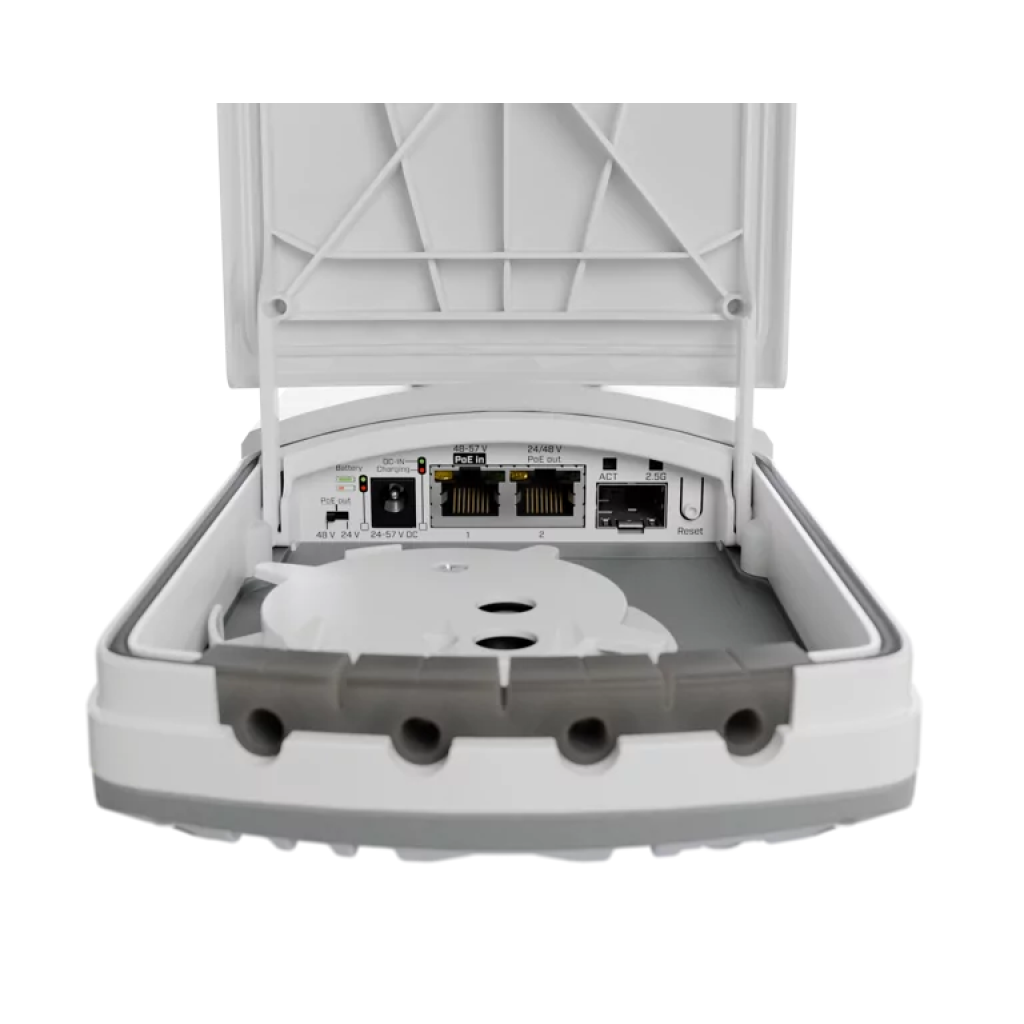

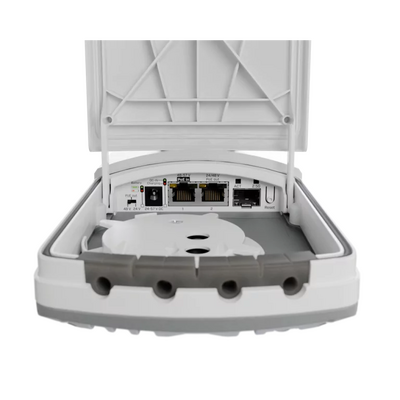

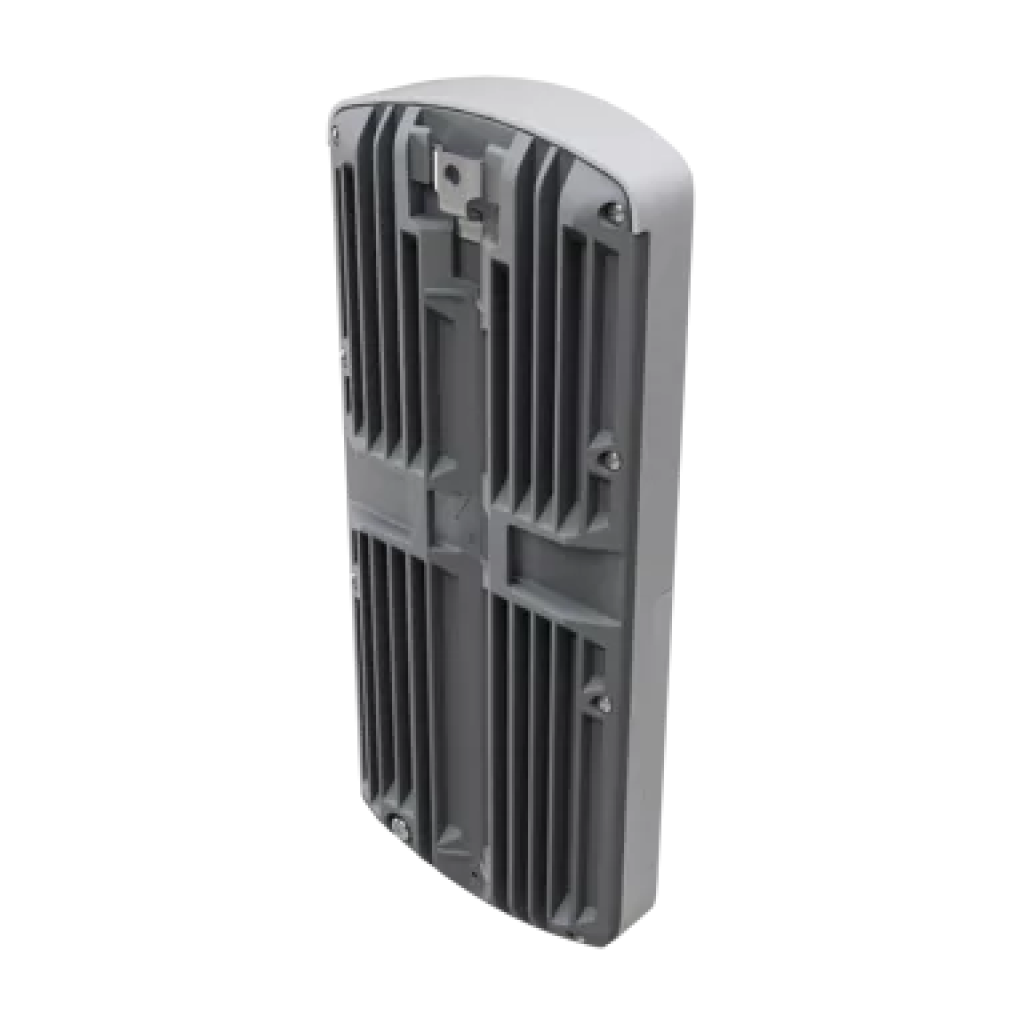

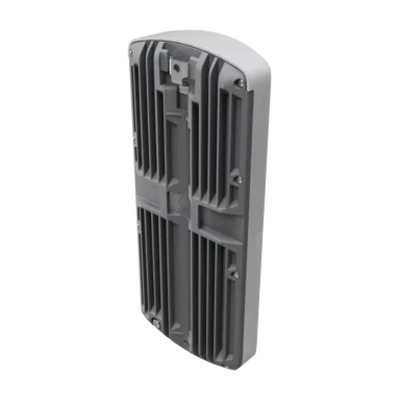

MikroTik FTC21-ups IP67 2.5G SFP to Dual Gigabit Ethernet Media Converter with Battery Backup
An IP67 weatherproof fiber-to-copper media converter with one SFP port supporting 2.5G, two Gigabit Ethernet ports, PoE-out on Ether2, dual power inputs and integrated battery backup for short power interruptions.
IP671 × SFP (2.5G supported)2 × Gigabit EthernetPoE-out on Ether2Integrated battery backup
Product highlights
Fiber-to-copper conversion
One SFP interface and two Gigabit Ethernet ports provide the listed fiber-to-copper edge connection.
Integrated battery resilience
Two Li-Ion NCA 18650 batteries are included to keep links stable through short power interruptions.
Flexible power inputs
Two DC inputs are listed: 802.3af/at PoE-in and a DC jack.
PoE-out on Ether2
Ether2 supports passive PoE-out, with 24V or 48V selection described in the supplied datasheet.
IP67 enclosure
The enclosure is rated IP67 and the operating temperature is listed from -40°C to +70°C.
Managed edge functions
The supplied description lists VLAN support, SNMP reporting, traffic shaping and access-control-list filtering.
Frequently asked questions
How many Ethernet ports does the FTC21-ups have?
It has two 10/100/1000 Ethernet ports.
What fiber interface is included?
One SFP port is listed, with 2.5G support.
Does it provide PoE output?
Yes. Ether2 provides passive PoE-out.
How is the unit powered?
It supports two DC inputs: PoE-in and a DC jack.
Is it weatherproof?
The enclosure is rated IP67.
What is the operating temperature range?
The tested ambient temperature range is -40°C to +70°C.
Does it have battery backup?
Yes. The supplied product information lists two Li-Ion NCA 18650 batteries for short power interruptions.
(FTC21-ups)
Features and highlights
MikroTik FTC21-ups IP67 2.5G SFP to Dual Gigabit Ethernet Media Converter with Battery Backup
Fiber-to-copper conversion
One SFP interface and two Gigabit Ethernet ports provide the listed fiber-to-copper edge connection.
Integrated battery resilience
Two Li-Ion NCA 18650 batteries are included to keep links stable through short power interruptions.
Flexible power inputs
Two DC inputs are listed: 802.3af/at PoE-in and a DC jack.
PoE-out on Ether2
Ether2 supports passive PoE-out, with 24V or 48V selection described in the supplied datasheet.
IP67 enclosure
The enclosure is rated IP67 and the operating temperature is listed from -40°C to +70°C.
Managed edge functions
The supplied description lists VLAN support, SNMP reporting, traffic shaping and access-control-list filtering.
Technical specifications
MikroTik FTC21-ups IP67 2.5G SFP to Dual Gigabit Ethernet Media Converter with Battery Backup
Networking
| Product code | FTC21-ups |
|---|
| Ethernet ports | 2 × 10/100/1000 |
|---|
| PoE-out Ethernet ports | 1 |
|---|
| SFP ports | 1 (2.5G supported) |
|---|
| Switch chip | 88E6341 |
|---|
| Operating system | SwOS |
|---|
Power and PoE
| DC inputs | 2 (PoE-in, DC jack) |
|---|
| PoE-in | 802.3af/at |
|---|
| PoE-in voltage | 4857V |
|---|
| DC jack input | 2457V |
|---|
| PoE-out | Passive PoE on Ether2; 24V or 48V selectable by hardware switch |
|---|
| Low-voltage PoE-out current limit | 0.625A |
|---|
| High-voltage PoE-out current limit | 0.315A |
|---|
| Maximum power consumption | 28W |
|---|
| Without attachments | 3W |
|---|
Battery and environment
| Battery | 2 × Li-Ion NCA 18650, 3.6V 2500mAh |
|---|
| IP rating | IP67 |
|---|
| Operating temperature | -40°C to +70°C |
|---|
| Battery discharge temperature | -20°C to +65°C |
|---|
| Cooling | Passive |
|---|
| MTBF | Approximately 100,000 hours at 25°C |
|---|
Physical and included parts
| Dimensions | 268 × 113 × 44mm |
|---|
| Included | 48V 0.95A power adapter; Gigabit PoE injector; hose clamp; K-95 fastening set |
|---|
| Air-freight note | Batteries installed; supplied description states only up to two units can be shipped by air freight |
|---|
Certification
| Listed certifications | CE, EAC, RoHS |
|---|
| SKU |
FTC21-ups |
| Brand |
MIKROTIK |
