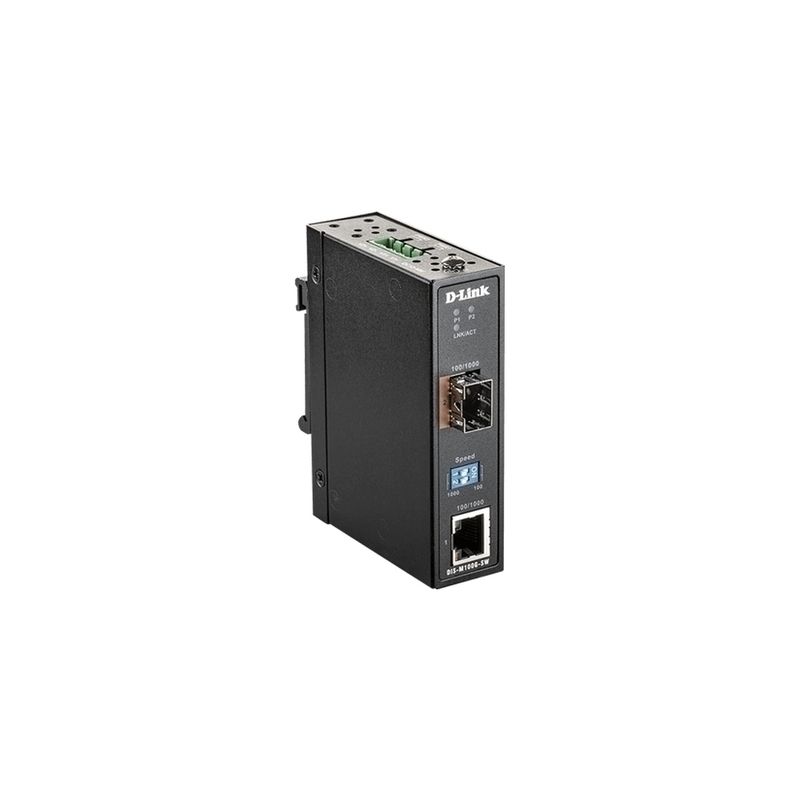

D-Link DIS-M100G-SW Industrial Ethernet-to-SFP Media Converter

A rugged industrial media converter that links one 10/100/1000BASE-T Ethernet connection to one 1G SFP interface, with redundant power support and DIN-rail or wall mounting.

Copper-to-fibre conversion

Converts one Ethernet connection to a compatible 1G SFP fibre connection.

Wide-temperature operation

Operates across the stated -40°C to 70°C range.

Flexible industrial mounting

Supports DIN-rail or solid-surface wall installation.

Extend Ethernet over fibre

The converter changes a 10/100/1000BASE-T Ethernet connection into a compatible SFP fibre connection for longer-distance links.

Rugged enclosure

An IP30-rated metal casing protects the unit for harsh environmental conditions.

Fanless wide-temperature design

Passive cooling supports operation from -40°C to 70°C without a fan.

Flexible deployment

DIN-rail and wall mounting are supported, with redundant power supply capability listed.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised D-Link reseller. This product is supplied with the stated lifetime D-Link manufacturer warranty.

Frequently asked questions

What does the media converter connect?

It connects one 10/100/1000BASE-T Ethernet port to one SFP port.

How many RJ45 ports are included?

One RJ45 Ethernet port is provided.

How many SFP ports are included?

One 1G SFP port is provided.

What Ethernet speeds are supported?

The RJ45 interface supports 10/100/1000Mbps.

Is PoE supported?

No. PoE is not supported.

What is the switching capacity?

A 4Gbps switching capacity is stated.

What housing rating is provided?

The unit uses an IP30-rated metal casing.

What is the operating-temperature range?

The stated range is -40°C to 70°C.

How can the converter be mounted?

It can be mounted on a DIN rail or a solid wall surface.

What warranty is supplied?

A lifetime D-Link manufacturer warranty is stated.

(DIS-M100G-SW)

D-Link DIS-M100G-SW Industrial Ethernet-to-SFP Media Converter features

Ethernet-to-fibre conversion

Links copper Ethernet to a compatible SFP connection.

Compact industrial enclosure

Uses the stated IP30-rated metal casing.

Passive wide-temperature design

Operates without a fan across the listed range.

Flexible mounting

Supports both DIN-rail and wall installation.

Confirm the required SFP module, fibre type, link distance, redundant power inputs and mounting method before deployment.

D-Link DIS-M100G-SW Industrial Ethernet-to-SFP Media Converter specifications

Product details

Model	DIS-M100G-SW
Product type	Industrial Ethernet-to-SFP media converter
Total ports	2
RJ45 ports	1
RJ45 speed	10/100/1000Mbps
SFP ports	1
SFP speed	1Gbps
PoE	No
Switching capacity	4Gbps
Maximum forwarding rate	2.976mpps
Management	Unmanaged
OSI layer	Layer 2
Housing rating	IP30 metal casing
Redundant power support	Yes
Mounting	DIN rail / wall
Cooling	Passive
Operating temperature	-40°C to 70°C
Dimensions	26.1 x 70 x 95mm
Stackable	No
Cloud managed	No
Licence required	No

Warranty

Coverage	Lifetime manufacturer warranty

SKU	DIS-M100G-SW
Barcode #	790069450020
Brand	D-LINK
Shipping Weight	0.3800kg
Shipping Width	0.150m
Shipping Height	0.050m
Shipping Length	0.210m
