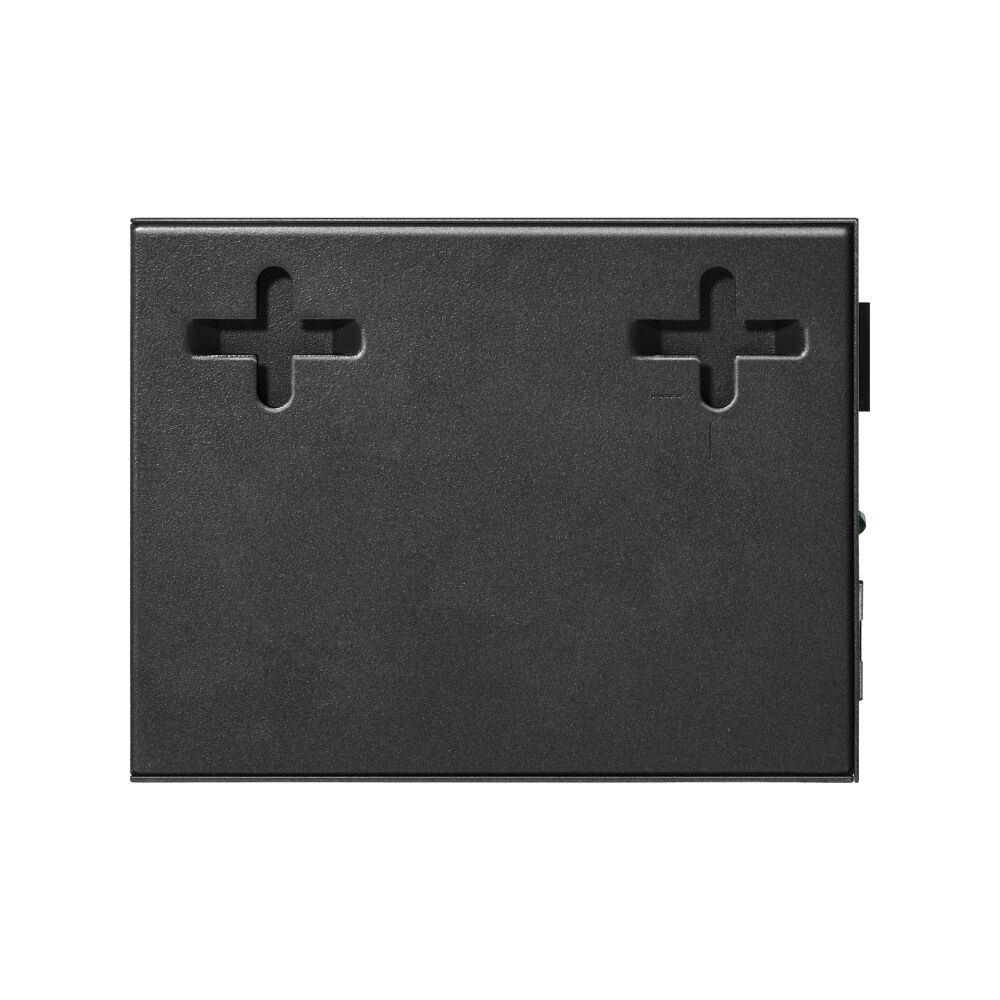

TP-LINK MC211CS-20 Omada 10/100/1000 Mbps RJ45 to 1000 Mbps Single-mode SC WDM Bi-Directional Fiber Converter
Model # MC211CS-20
-
SKU: MC211CS-20
- Pick Up Available
- Australian Warranty
- Checkout Securely
Omada Gigabit WDM Media Converter
• 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
• Adopts WDM technology, transmitting and receiving data on one single fiber
• Extends fiber distance up to 20 km
(MC211CS-20)
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z |
| HARDWARE FEATURES | |
|---|---|
| Interface | • 1× Gigabit SC/UPC Fiber Port • 1× 10/100/1000 Mbps RJ45 Port (Auto MDI/MDIX) |
| Power Supply | External Power Adapter: 9 V/0.6 A |
| LED | PWR, Link/Act |
| Wave Length | 1550 nm TX, 1310 nm RX |
| Dimensions ( W x D x H ) | 94.5x73x27 mm (37.2x28.7x10.6 in) |
| ENVIRONMENT | |
|---|---|
| Operating Temperature | -5˚C to 50˚C (23˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| OTHERS | |
|---|---|
| Package Content | • Media Converter MC211CS-20 • Power Adapter • Installation Guide |
| SKU | MC211CS-20 |
| Barcode # | 1210002601085 |
| Brand | TP-LINK |
| Shipping Weight | 0.3000kg |
Manufacturer Warranty: 3 Year Manufacturer Warranty
