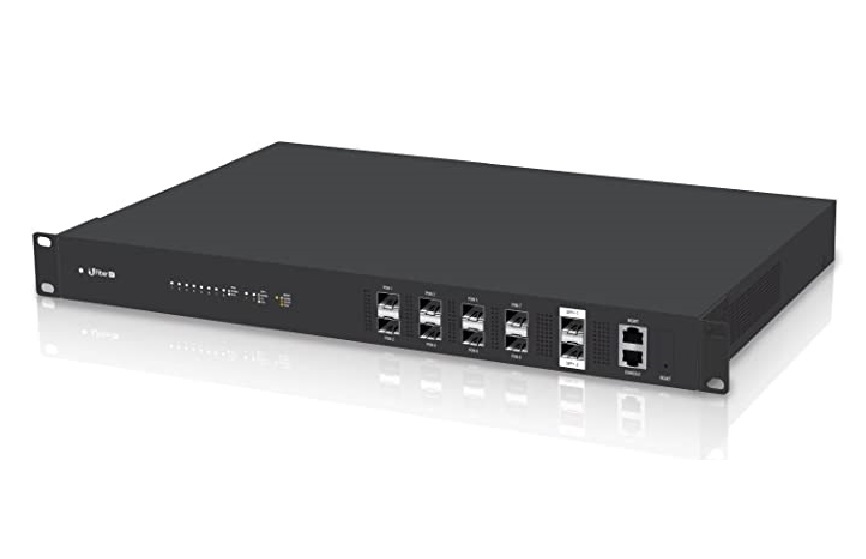

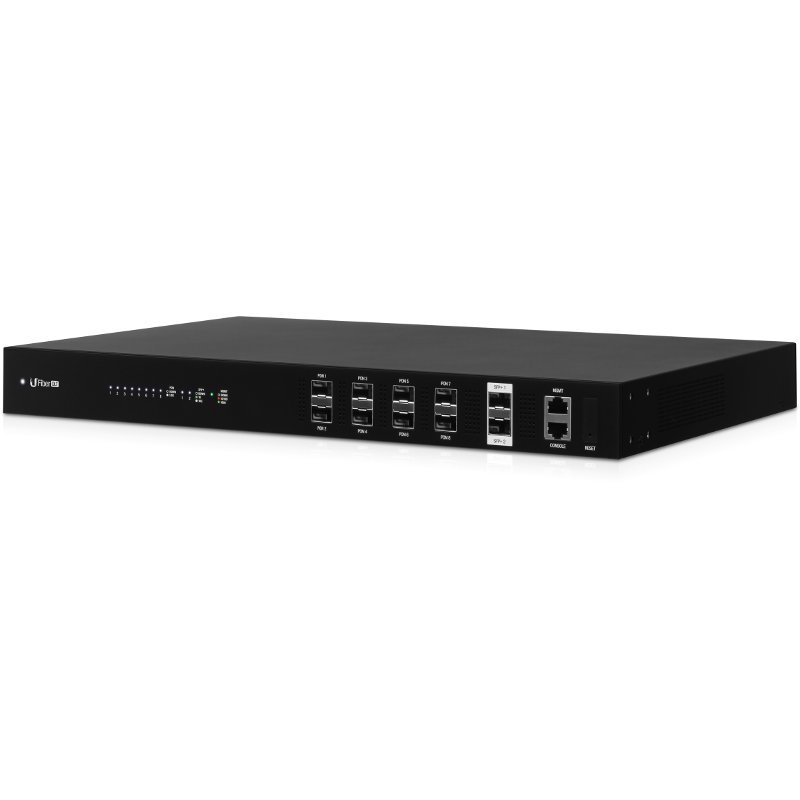

Ubiquiti Networks UBNT UF-OLT U Fiber 8-Port GPON Optical Line Terminal - 8x Gigabit Passive Optical Network Ports - Supports up to 1024 Clients (128 per PON Port) - Up to 2.488 Gbps TX and 1.244 Gbps RX - Two 1G/10G SFP+ Ethernet Ports - Flexible Layer 2/3 Management Features - FastEthernet Port, Console Serial Port - 1U-High Metal Chassis for 19"-Wide Rack - Power Consumption: 40W (without SFP modules) - Weight (with Mount Brackets): 4.495 kg - CE, FCC, IC - UF-OLT - 12 Months Limited Warranty

GPON Optical Line Terminal
Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals, and paid support licenses. Introducing the UFiber OLT – a fiber solution that anyone can deploy.

Centralized Management

Easily configure the OLT and manage multiple sites using the comprehensive UNMS™ (Ubiquiti® Network Management System) software.

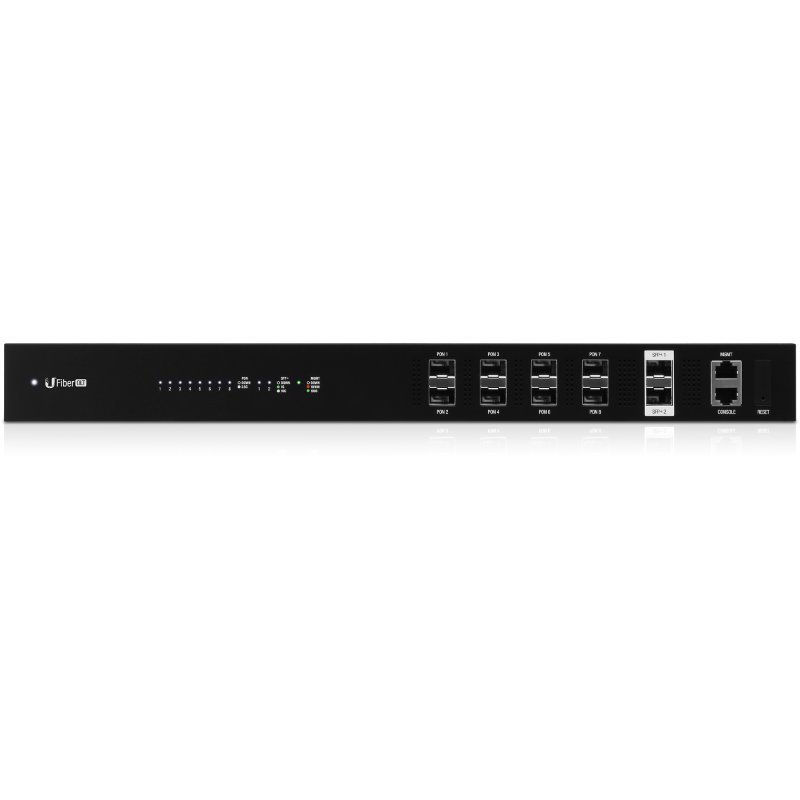

Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices, and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.

Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

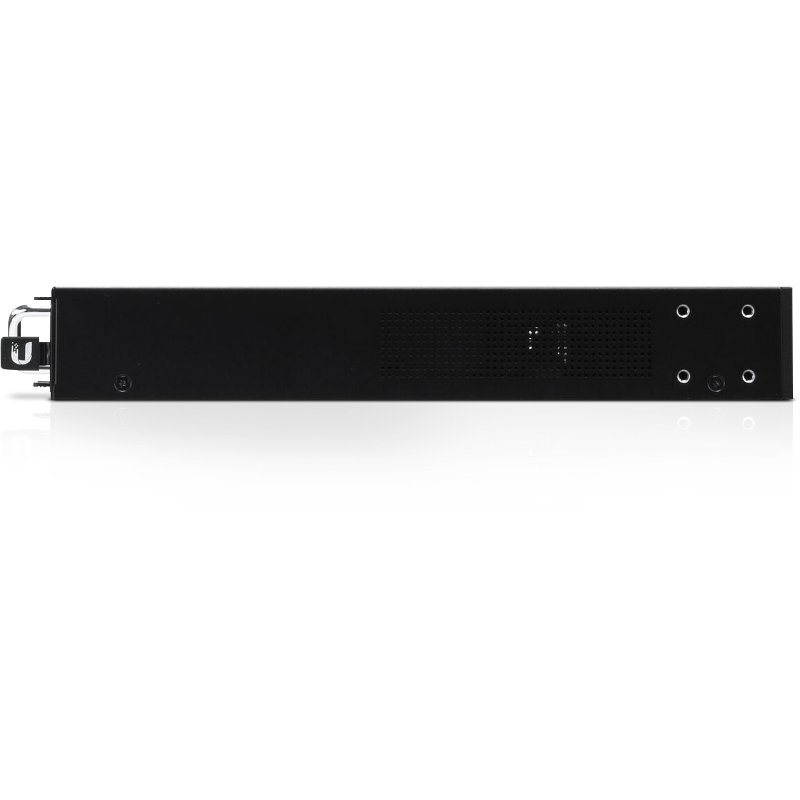

Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"‑wide rack.
