The ET91000SFP2 Open SFP Fiber Media Converter converts and extends a Gigabit Ethernet connection over fiber, using the Gigabit SFP of your choice.

A versatile solution for connecting an Ethernet (1000Base-T) network to remote network segments over a fiber backbone, the media converter features an open SFP slot that lets you choose the MSA-Compliant Gigabit SFP that best suits your fiber connection mode (single / multi-mode) and distance requirements (see our full line of for compatible solutions).

The fiber to Ethernet converter has a durable all-steel chassis and offers simple plug-and-play installation, while support for full-duplex operation and Jumbo Frame support provides efficient network operation.

For added versatility, this Gigabit media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U). For applications where multiple chassis-mounted media converters are required, this Gigabit media converter can be purchased as a Card Module only (ET91000SFP2C).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.


Applications

  • Cost-effective way to extend/bridge networks using fiber cabling
  • Provides connectivity to a user or network segment that is in an isolated area of a large complex or in another building altogether
  • Perfect for secure connections required by government agencies where EMI is not acceptable
+ More- Less

(ET91000SFP2)

Warranty Information
Warranty 2 Years
Hardware
Chipset ID Marvell - 88E1111
Industry Standards IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000BASE-LX
IEEE 802.3z 1000BASE-SX
PoE No
WDM No
Performance
Auto MDIX Yes
Fiber Operating Mode Half/Full-Duplex
Maximum Data Transfer Rate 1.25 Gbps
MTBF 65, 000 Hours

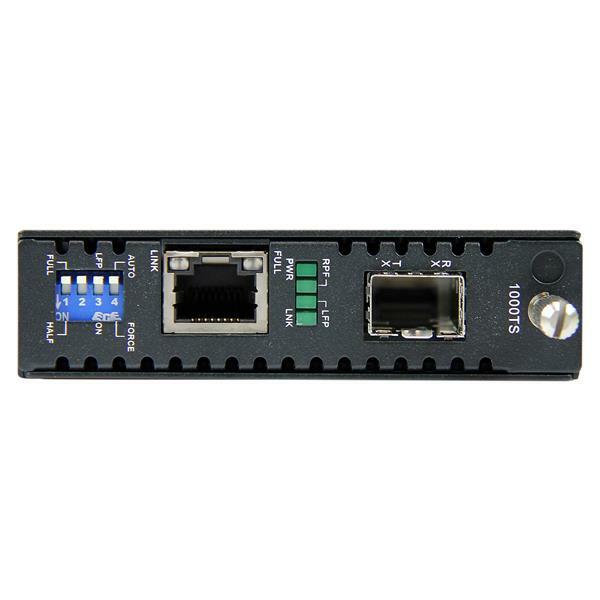

Connector(s)
Local Unit Connectors 1 - RJ-45 Female
1 - SFP Slot Female
Special Notes / Requirements
Note Fiber data transfer speeds and distances are dependent on the SFP used (sold separately)

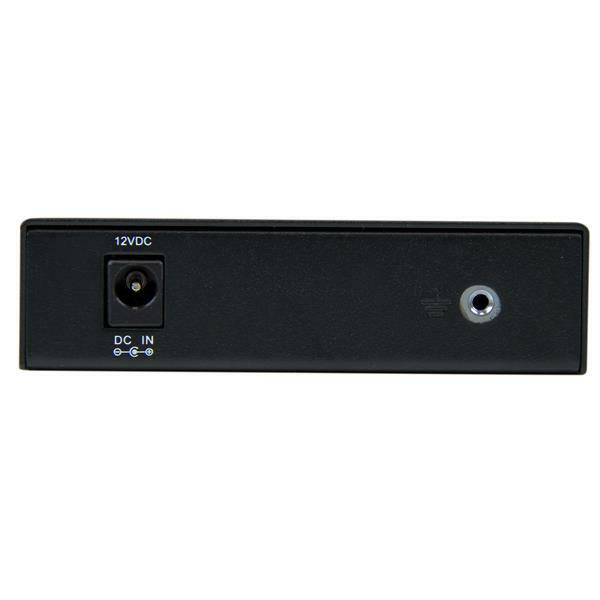

Power
Center Tip Polarity Positive
Input Current 0.36 A
Input Voltage 100 - 240 AC
Output Current 1 A
Output Voltage 12 DC
Plug Type M
Power Consumption (In Watts) 8
Power Source AC Adapter Included
Environmental
Humidity 10~90% RH (Non-Condensing)
Operating Temperature 0°C to 60°C (32°F to 140°F)
Storage Temperature -10°C to 70°C (14°F to 158°F)
Physical Characteristics
Color Black
Enclosure Type Steel
Product Height 0.9 in [2.3 cm]
Product Length 6.1 in [15.4 cm]
Product Width 3.5 in [88 mm]
Weight of Product 14 oz [396 g]
Packaging Information
Package Height 3.6 in [92 mm]
Package Length 8.2 in [20.8 cm]
Package Width 5.4 in [13.7 cm]
Shipping (Package) Weight 1.7 lb [0.8 kg]

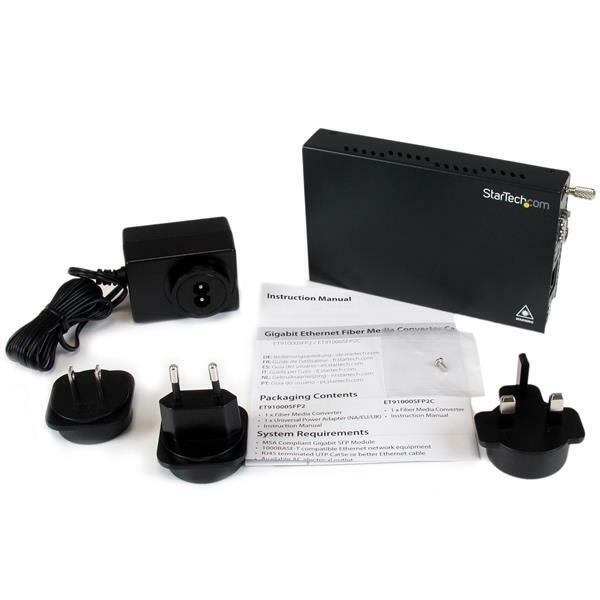

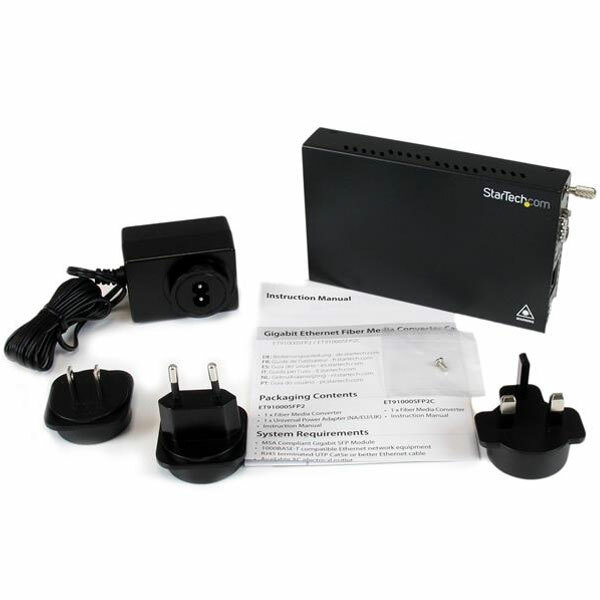

What's in the Box
Included in Package 1 - Fiber Media Converter
1 - Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand
1 - Grounding Screw
1 - Instruction Manual
SKU ET91000SFP2
Barcode # 65030852517
Brand Startech
Shipping Weight 0.6900kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.230m
Shipping Cubic 0.001150000m3
Manufacturer Warranty: 2 Years Limited Warranty
