STARTECH.COM | H2MPV-MONITOR-MOUNT

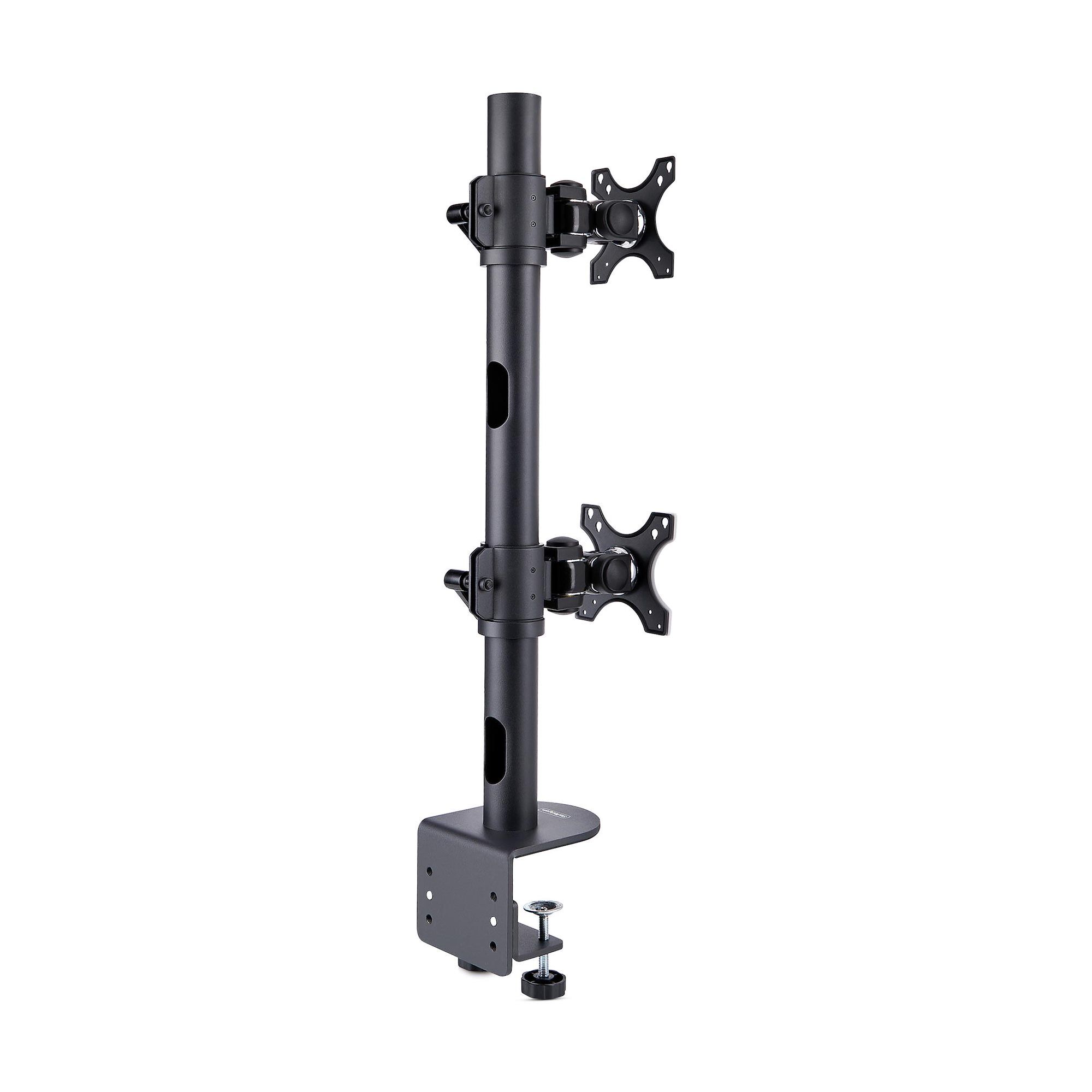

Vertical Dual 49in Monitor Desk Mount

Stack two compatible displays vertically on a heavy-duty pole mount supporting standard, widescreen and 32:9 UltraWide formats up to 49 inches.

Vertical dual-screen layout

Stacks two displays to expand viewing area without requiring the horizontal desk width of a side-by-side configuration.

Up to 49in UltraWide support

Supports compatible flat or curved 1749in displays, including 32:9 UltraWide formats.

Heavy-duty C-clamp mounting

Fits suitable desk surfaces from 25 to 100mm thick and provides 13kg capacity per display under the current technical specification.

Quick-release VESA plates

Tool-free detachable 75×75 and 100×100mm VESA plates simplify display installation and removal.

What to know before ordering

Stack two compatible displays vertically on a heavy-duty pole mount supporting standard, widescreen and 32:9 UltraWide formats up to 49 inches. Check the exact host, display, mounting, cable, power and compatibility requirements below before purchase.

Compatibility checklist

Confirm each display is within the 1749in range, weighs no more than 13kg and uses a 75×75 or 100×100mm VESA pattern.
Allow adequate vertical clearance, desk depth and cable slack for two stacked displays.
The current technical table lists 13kg per display, while the official marketing copy states 16kg per display; the technical-table value is used here.

Common applications

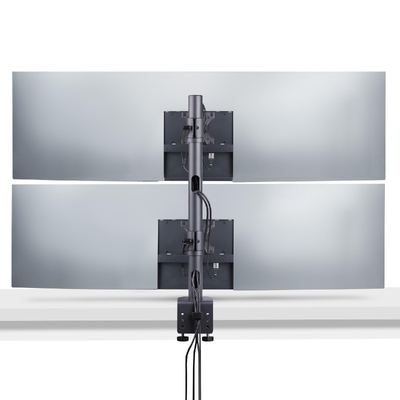

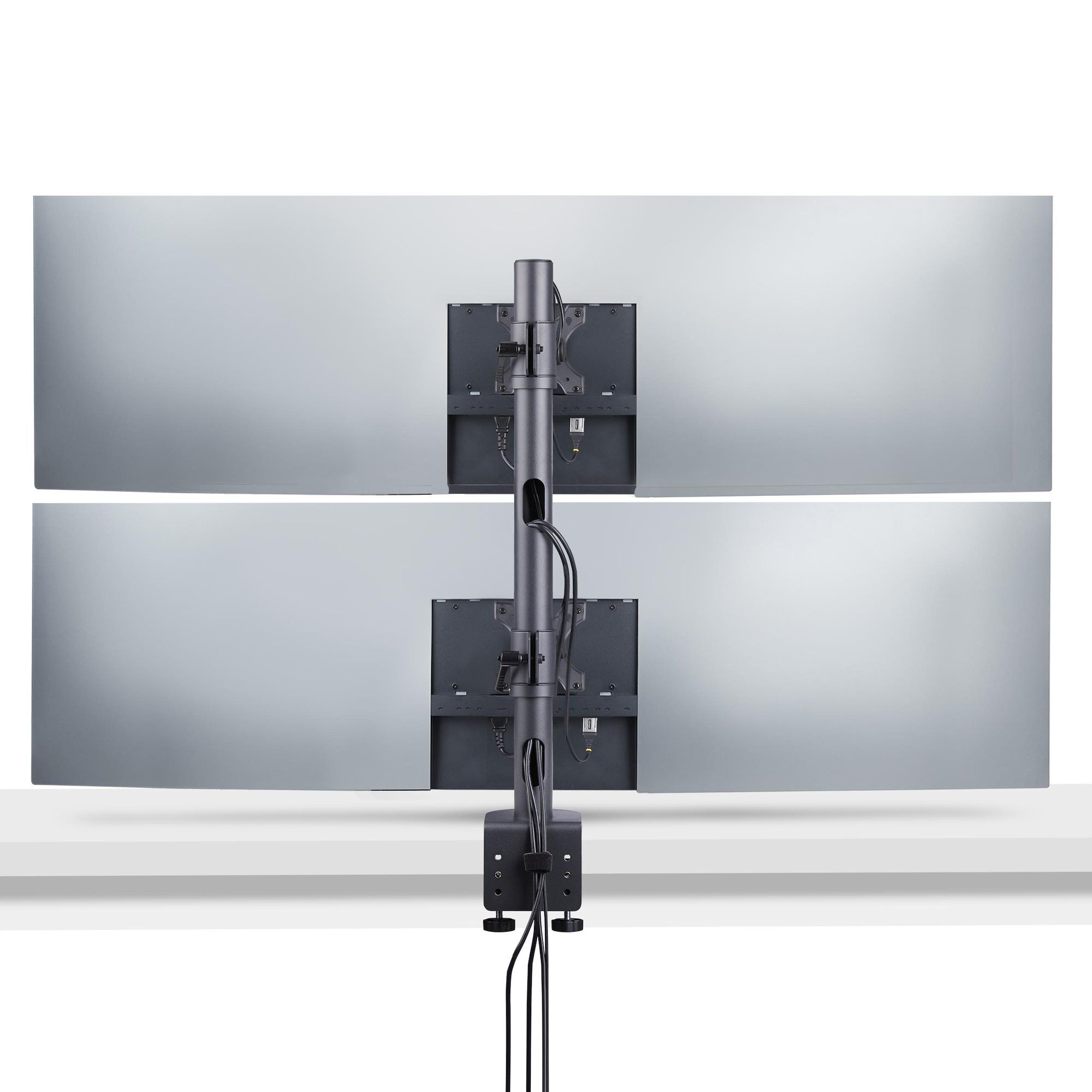

Stack two UltraWide displays for data and multi-window workflows
Create a vertically arranged monitoring or operations workstation
Use a heavy-duty mount where horizontal desk width is limited

DeviceDeal purchase confidence

Supplied by DeviceDeal for Australian customers with local purchasing support, a tax invoice and the verified 5-year StarTech.com manufacturer warranty.

Frequently asked questions

How many displays does H2MPV-MONITOR-MOUNT support?

It supports two displays in a vertically stacked arrangement.

What display sizes and formats are supported?

It supports compatible 1749in displays, including standard, widescreen and 32:9 UltraWide formats.

What weight can each mount hold?

The current technical table lists 13kg per display. This differs from 16kg wording in the official marketing copy, so the lower technical-table value is used.

Does it support curved monitors?

Yes. The current specification lists support for curved and UltraWide displays.

Which VESA patterns fit?

The quick-release plates support 75×75 and 100×100mm VESA patterns.

What desk thickness is supported?

The fixed C-clamp is listed for desk surfaces from 25 to 100mm thick.

How can the displays be adjusted?

The mounts adjust along the 696mm pole, tilt and swivel ±90°, and rotate +180°/-180°.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal carries a 5-year StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(H2MPV-MONITOR-MOUNT)

Features and highlights

Vertical desk mount for two 1749in displays
Supports flat, curved, widescreen and 32:9 UltraWide displays
Current technical table capacity: 13kg per display
VESA patterns: 75×75 and 100×100mm
C-clamp supports 25100mm desk thickness
Height adjustment along a 696mm pole
Display tilt and swivel: ±90°; rotation: +180°/-180°
Quick-release VESA plates
Concealed cable routing inside the pole
Black powder-coated steel and plastic construction
TAA compliant
5-year StarTech.com manufacturer warranty

Compatibility check: Confirm each display is within the 1749in range, weighs no more than 13kg and uses a 75×75 or 100×100mm VESA pattern.

Specifications

Product type	Heavy-duty vertical dual-monitor desk mount
Displays supported	2
Display size	1749in; up to 49in at 32:9 aspect ratio
Weight capacity	13kg per display under the current technical table
Curved display support	Yes
UltraWide display support	Yes
VESA patterns	75×75 and 100×100mm
Mounting option	Fixed C-clamp desk mount
Mounting surface thickness	25100mm
Maximum pole height	696mm
Display tilt	±90°
Display swivel	+90° / -90°
Display rotation	+180° / -180°
Cable management	Concealed routing inside the pole
Tools included	Yes
Colour and material	Black; steel and plastic
Product dimensions	214 × 922 × 922mm (L × W × H)
Product weight	7.0kg
Package contents	Lower desk clamp; pole assembly and cap; two VESA mounts and plates; two support collars; mounting screws and spacers; M3 and M6 hex keys; wrench; quick-start guide
TAA compliant	Yes
Warranty	5 years

SKU	H2MPV-MONITOR-MOUNT
Barcode #	65030908306
Brand	STARTECH
Shipping Weight	7.3000kg
Shipping Width	0.015m
Shipping Height	0.086m
Shipping Length	0.020m

Warranty and Australian supply

H2MPV-MONITOR-MOUNT is the Australian version supplied by DeviceDeal and carries the official 5-year StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.
