StarTech.com · MDBOXMNT

StarTech MDBOXMNT Universal Media Device Mount for Displays

Universal Media Device Mount for Displays designed for professional IT, electronics, security or workstation use.

Quick answer: MDBOXMNT secures media players, extenders, modems and cable boxes behind a TV, monitor or other mounting surface.

Best forDigital signage, meeting rooms and installations that need media hardware hidden close to a display.

Check before orderingThe maximum device capacity is 5kg; confirm the 200 × 200mm VESA pattern or alternative wall/desk/pole mounting method suits the installation.

Answers before you buy

Frequently asked questions

What is StarTech MDBOXMNT?

It is a open-frame steel caddy for mounting media devices behind a display that secures media players, extenders, modems and cable boxes behind a TV, monitor or other mounting surface.

Which connections or mounting method are provided?

Mounts behind a display, under a desk, on a wall or to a compatible monitor-mount pole

What performance is specified?

5kg device capacity; adjustable cradle depth from 45.7 to 76.2mm

How is the product constructed?

Black powder-coated steel grid with open access, reusable ties, elastic band and protective foam

How much weight can the mount support?

The specified maximum device capacity is 5kg.

What VESA pattern is supported?

The mount lists a 200 × 200mm VESA hole pattern and also supports alternative mounting methods.

What should be checked before ordering?

The maximum device capacity is 5kg; confirm the 200 × 200mm VESA pattern or alternative wall/desk/pole mounting method suits the installation.

What warranty applies?

MDBOXMNT carries a StarTech.com 5 years manufacturer warranty, subject to the manufacturers terms and eligibility requirements.

Planning a broader setup? Browse the DeviceDeal buying guides.

(MDBOXMNT)

Features & highlights

Why choose MDBOXMNT?

?Purpose-built designMounts behind a display, under a desk, on a wall or to a compatible monitor-mount pole

?Specified performance5kg device capacity; adjustable cradle depth from 45.7 to 76.2mm

?Professional constructionBlack powder-coated steel grid with open access, reusable ties, elastic band and protective foam

?Key capabilityThe 34.2 × 22.4cm mounting grid provides flexible attachment points for varied device sizes.

?Deployment advantageIncluded cradle supports heavier devices while leaving ports and controls accessible.

?Order with confidenceThe maximum device capacity is 5kg; confirm the 200 × 200mm VESA pattern or alternative wall/desk/pole mounting method suits the installation.

Compatibility reminder: The maximum device capacity is 5kg; confirm the 200 × 200mm VESA pattern or alternative wall/desk/pole mounting method suits the installation.

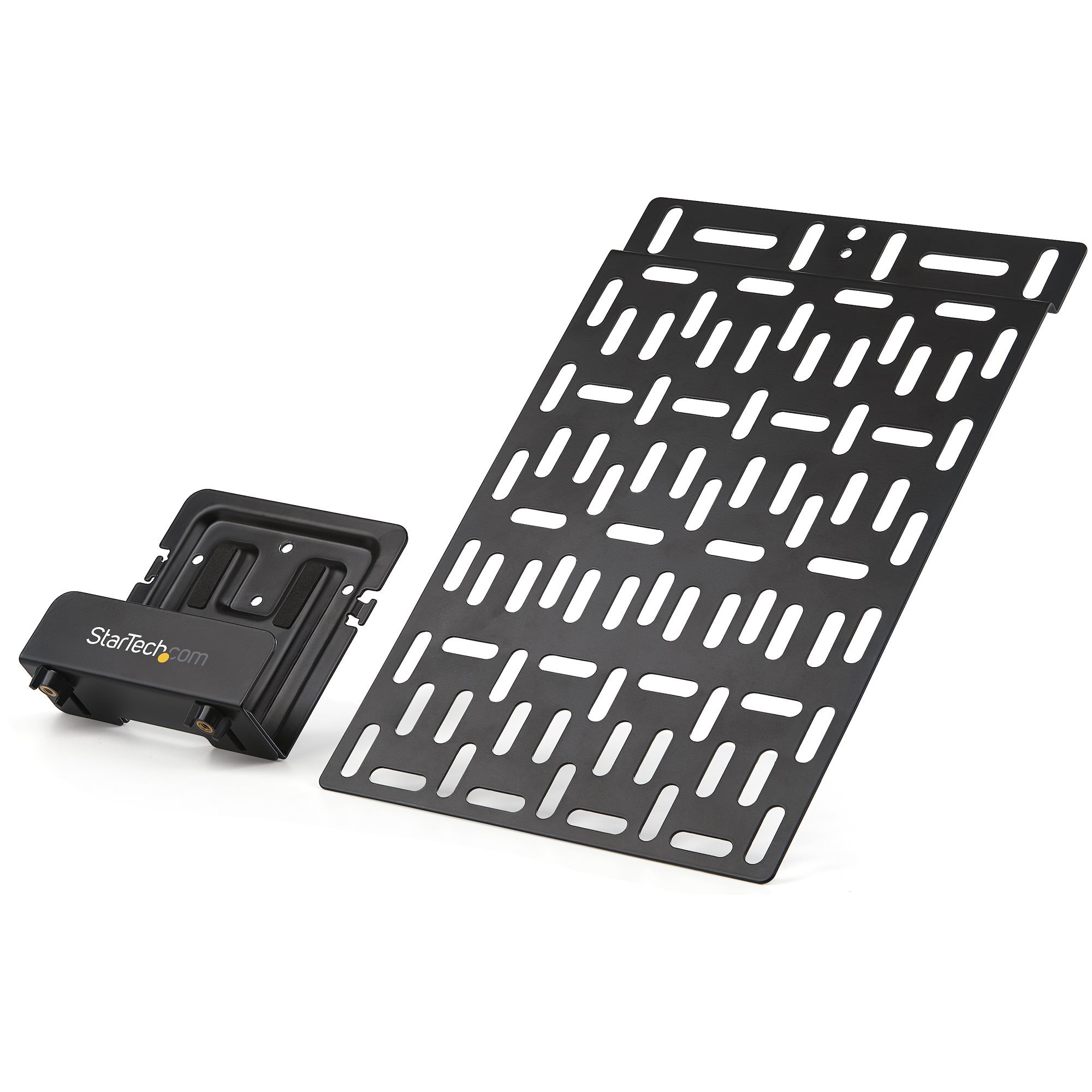

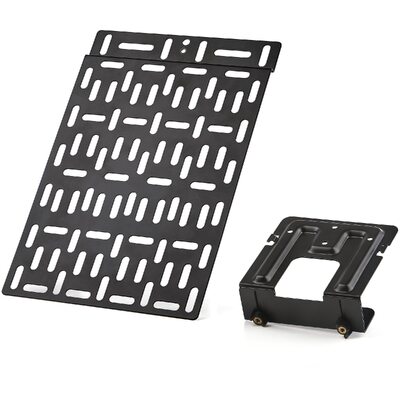

StarTech MDBOXMNT Universal Media Device Mount for Displays product image

Technical specifications

MDBOXMNT specifications

Exact-model specifications for compatibility checking. Measurements may be rounded.

Warranty Information
Warranty	5 Years
Hardware
Mounting Options	Behind monitor, under desktop, wall, or monitor-mount pole
VESA Pattern	200 × 200mm
Material	Powder-coated steel
Performance
Weight Capacity	5kg
Cradle Size	12.7 × 12.8cm
Adjustable Cradle Depth	45.776.2mm
Video Wall	No
Physical Characteristics
Colour	Black
Product Dimensions	34.2 × 22.4 × 8.6cm
Product Weight	1.0kg
What's in the Box
Included	Mounting bracket; media-player cradle; 3 ties; elastic band; screws, washers and anchors; EVA foam strips

Sources: https://www.devicedeal.com.au/startech-mdboxmnt-universal-tv-mount-caddy-for-med and https://www.startech.com/

SKU	MDBOXMNT
Barcode #	65030889872
Brand	Startech
Shipping Weight	1.2700kg
Shipping Width	0.006m
Shipping Height	0.035m
Shipping Length	0.024m
