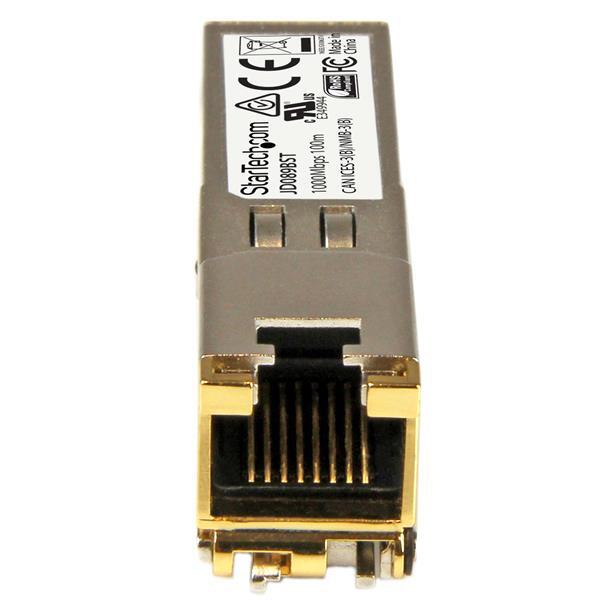

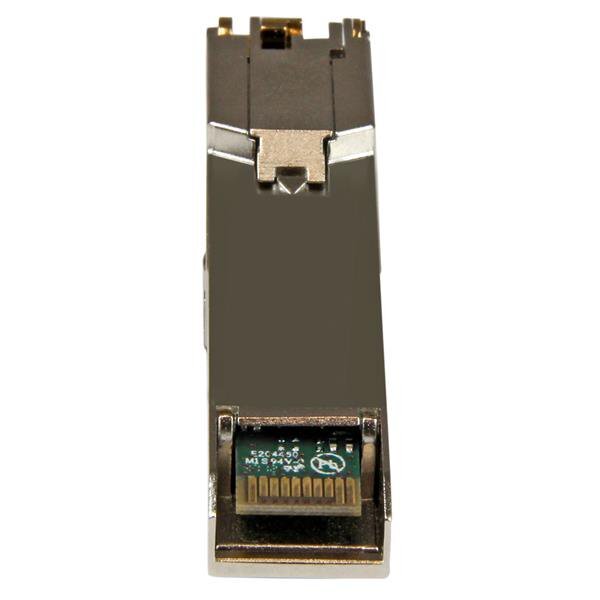

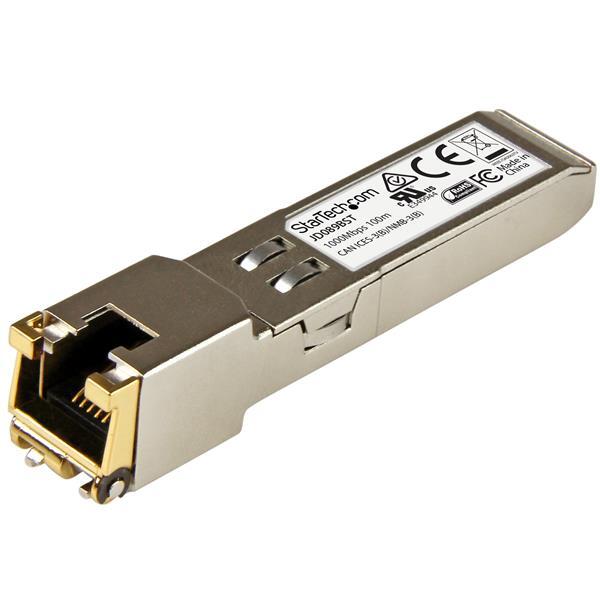

The JD089BST is an HP JD089B compatible copper transceiver module that has been designed, programmed and tested to work with HP¨ brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).

Technical Specifications:

  • Maximum Data Transfer Rate: 1000 Mbps
  • Type: Copper
  • Connection Type: RJ45 Connector
  • Maximum Transfer Distance: 100 m (328 ft)
  • MTBF: 4,655,371 hours
  • Power Consumption: Less than 1.3 Watts
  • Digital Diagnostics Monitoring (DDM): No

This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.


Applications

  • Replacing defective or damaged SFP modules_in HP switches and routers
  • Expand your network to remote segments

(JD089BST)

Warranty Information
Warranty Lifetime
Hardware
Compatible Brand HP
Industry Standards IEEE 802.3i 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3u 100BASE-TX
Performance
Auto MDIX Yes
Compatible Networks 10/100/1000 Mbps
DDM No
Fiber Operating Mode Full-Duplex
Max Transfer Distance 100 m (328 ft)
Maximum Data Transfer Rate 1000 Mbps
MTBF 4,655,371 hours
Type Copper
Connector(s)
Local Unit Connectors 1 - RJ-45 Female
Special Notes / Requirements
System and Cable Requirements MSA or HP compliant SFP port
For use in 1 Gigabit networking equipment and media converters
Power
Power Consumption (In Watts) < 1.3 W
Environmental
Humidity 5~95% RH
Operating Temperature 0¡C to 70¡C (32¡F to 158¡F)
Storage Temperature -40¡C to 85¡C (-40¡F to 185¡F)
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 0.5 in [1.4 cm]
Product Length 2.7 in [68 mm]
Product Width 0.5 in [13.7 mm]
Weight of Product 0.9 oz [25 g]
Packaging Information
Package Height 1.4 in [35 mm]
Package Length 3.7 in [93 mm]
Package Width 4.7 in [11.9 cm]
Shipping (Package) Weight 1.9 oz [54 g]
What's in the Box
Included in Package 1 - SFP transceiver
SKU JD089BST
Barcode # 65030868556
Brand Startech
Shipping Weight 0.5000kg
Shipping Width 9.000m
Shipping Height 3.000m
Shipping Length 11.500m
