StarTech Juniper SFP-1GE-LX Compatible SFP Transceiver Module - 1000BASE-LX SFP1GELXST
Model # SFP1GELXST
-
SKU: SFP1GELXST
- Pick Up Available
- Australian Warranty
- Checkout Securely

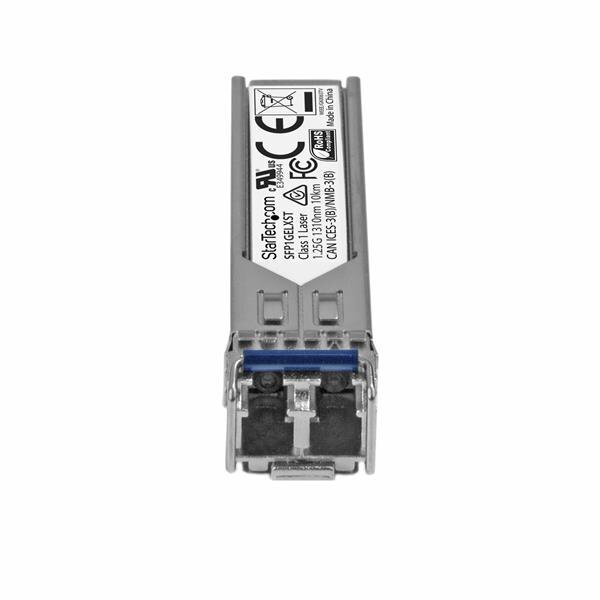

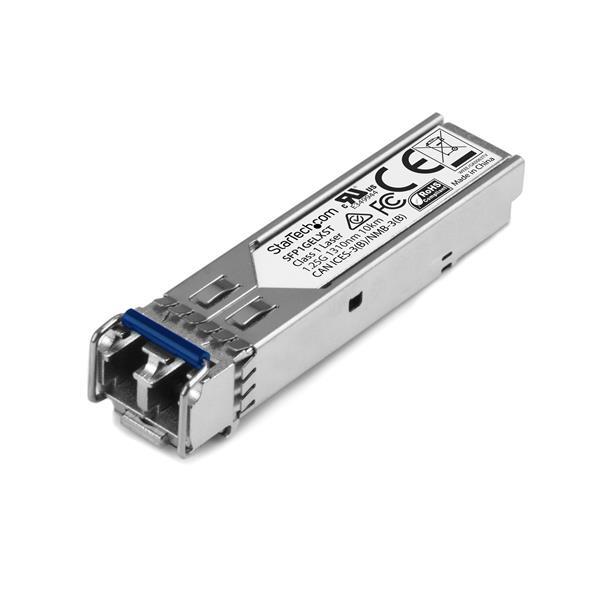

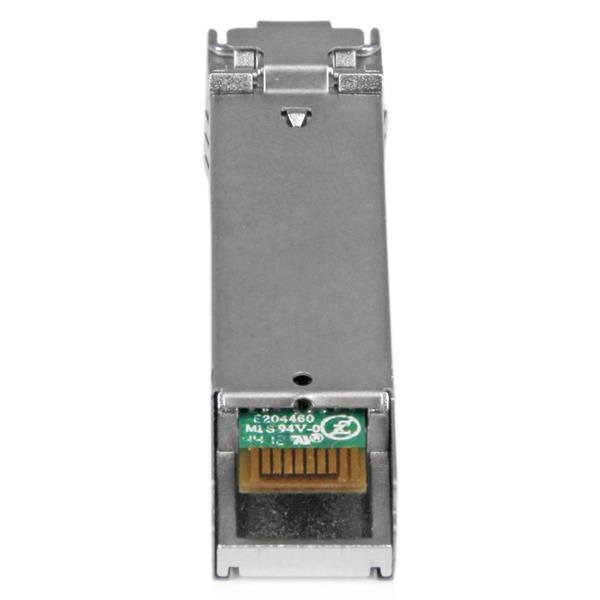

The SFP1GELXST is a Juniper SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper¨ brand switches and routers. It delivers dependable 1GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Applications
- Replacing defective or damaged SFP modules_in Cisco switches and routers
- Expand your network to remote segments
(SFP1GELXST)
| Warranty Information | ||
|---|---|---|
| Warranty | Lifetime | |
| Hardware | ||
| Compatible Brand | Juniper | |
| Industry Standards | IEEE 802.3z 1000BASE-LX | |
| Performance | ||
| Compatible Networks | 1000 Mbps (1 Gbps) | |
| DDM | Yes | |
| Fiber Operating Mode | Full-Duplex | |
| Max Transfer Distance | 10 km (6.2 mi) | |
| Maximum Data Transfer Rate | 1.25 Gbps | |
| MTBF | 3,092,408 hours | |
| Type | Single Mode | |
| Wavelength | 1310nm | |
| Connector(s) | ||
| Local Unit Connectors | 1 - Fiber Optic LC Duplex Female | |
| Special Notes / Requirements | ||
| System and Cable Requirements | MSA or Juniper Networks compliant SFP port | |
| For use in Gigabit fiber networking equipment and media converters | ||
| Power | ||
| Power Consumption (In Watts) | < 1 W | |
| Environmental | ||
| Humidity | 5~95% RH | |
| Operating Temperature | 0¡C to 70¡C (32¡F to 158¡F) | |
| Storage Temperature | -40¡C to 85¡C (-40¡F to 185¡F) | |
| Physical Characteristics | ||
| Color | Silver | |
| Enclosure Type | Aluminum | |
| Product Height | 0.5 in [1.3 cm] | |
| Product Length | 2.2 in [56.6 mm] | |
| Product Width | 0.5 in [13.7 mm] | |
| Weight of Product | 0.7 oz [19 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [33 mm] | |
| Package Length | 3.7 in [93 mm] | |
| Package Width | 4.7 in [11.9 cm] | |
| Shipping (Package) Weight | 1.7 oz [49 g] | |
| What's in the Box | ||
| Included in Package | 1 - SFP transceiver | |
| SKU | SFP1GELXST |
| Barcode # | 65030869409 |
| Brand | STARTECH |
| Shipping Weight | 0.0400kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000600000m3 |
