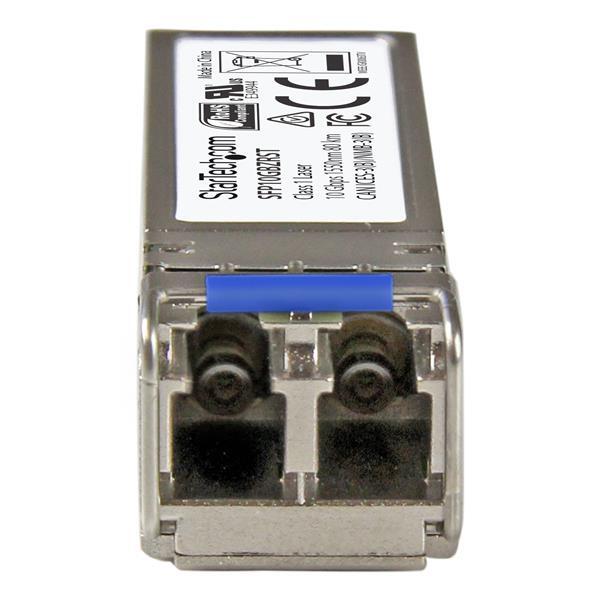

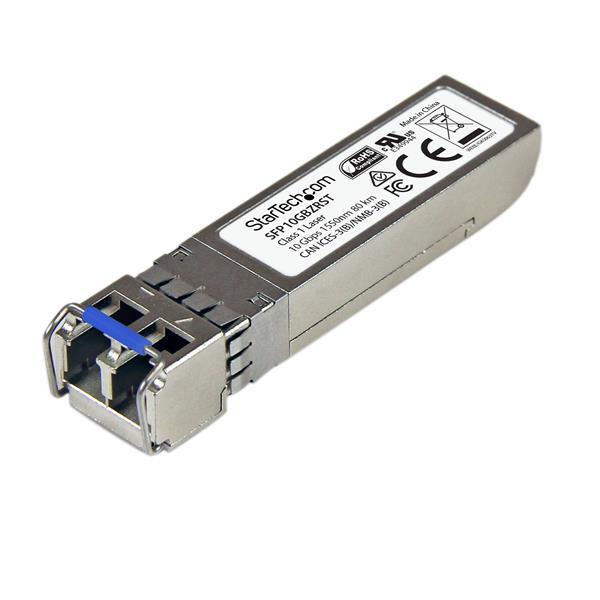

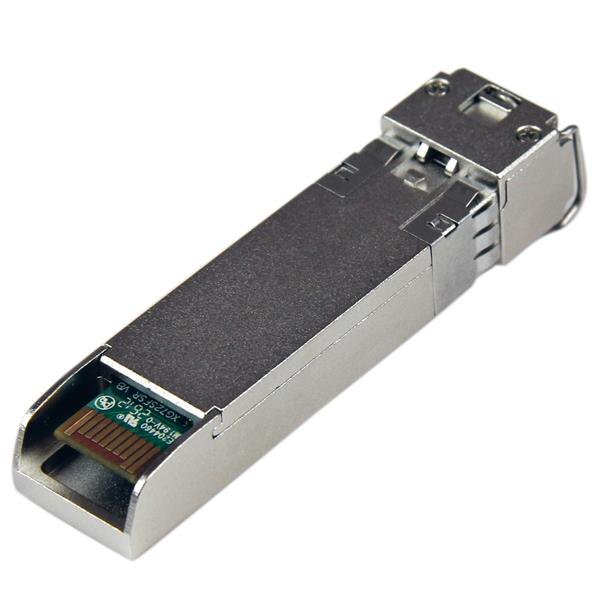

The SFP10GBZRST is an MSA compliant fiber SFP transceiver thatÕs designed, programmed and tested to work with 10GBASE-ZR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 80 km (49.7 mi) and delivers dependable 10 GbE connectivity over fiber cabling.

Technical Specifications:
  • Wavelength: 1550 nm
  • Maximum Data Transfer Rate: 10 Gbps
  • Type: Single Mode Fiber
  • Connection Type: LC Connector
  • Maximum Transfer Distance: 80 km (49.7 mi)
  • Power Consumption: Less than 1.6 Watts
  • DDM: Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.


Applications

  • Replace defective or damaged SFP+ modules
  • Expand your network to remote segments

(SFP10GBZRST)

Warranty Information
Warranty Lifetime
Hardware
Compatible Brand MSA Compliant
Industry Standards IEEE 802.3ae 10GBASE-ZR
WDM No
Performance
Compatible Networks 10 Gbps
DDM Yes
Fiber Operating Mode Full-Duplex
Max Transfer Distance 80 km (49.7 mi)
Maximum Data Transfer Rate 10 Gbps
Type Single Mode
Wavelength 1550nm
Connector(s)
Local Unit Connectors 1 - Fiber Optic LC Duplex Female
Power
Power Consumption (In Watts) < 1.6 W
Environmental
Humidity 5~95% RH
Operating Temperature 0¡C to 70¡C (32¡F to 158¡F)
Storage Temperature -40¡C to 85¡C (-40¡F to 185¡F)
Physical Characteristics
Color Silver
Enclosure Type Aluminum
Product Height 0.5 in [1.3 cm]
Product Length 2.3 in [58.4 mm]
Product Width 0.5 in [13.9 mm]
Weight of Product 0.8 oz [24 g]
Packaging Information
Package Height 1.2 in [30 mm]
Package Length 4.5 in [11.5 cm]
Package Width 3.5 in [90 mm]
Shipping (Package) Weight 1.9 oz [54 g]
What's in the Box
Included in Package 1 - SFP+ transceiver
SKU SFP10GBZRST
Barcode # 65030873369
Brand Startech
Shipping Weight 0.5000kg
Shipping Width 0.095m
Shipping Height 0.033m
Shipping Length 0.116m
