StarTech.com SFP10GBTST

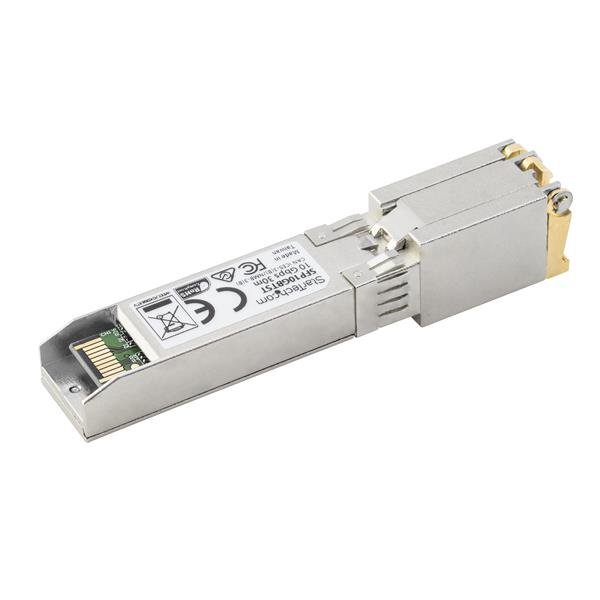

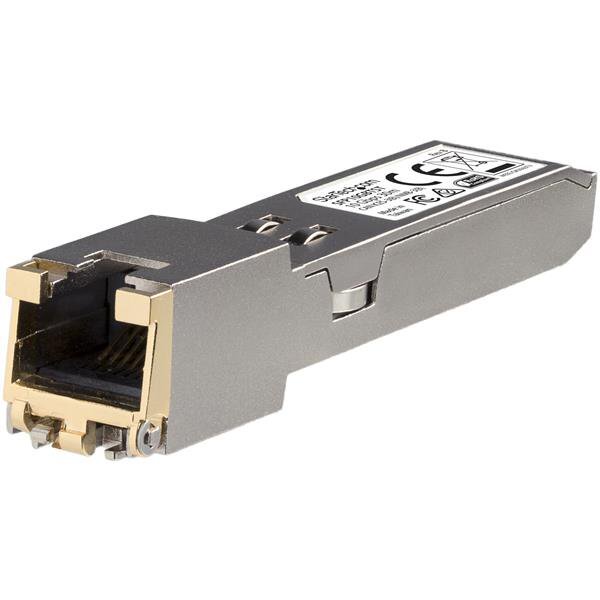

MSA compliant 10GBASE-T copper SFP+ RJ45 transceiver

An MSA-compliant 10GBASE-T copper SFP+ module providing 10GbE over RJ45 copper cabling with reach up to 30m, Auto-MDIX and hot-swappable installation.

10GbE copperRJ45 / 30mMSA compliantLifetime warranty

Key capabilities

MSA compliant

Designed for compatible 10GBASE-T switches and routers with MSA-compliant SFP+ ports.

10GBASE-T over RJ45

Provides a 10GbE copper RJ45 network interface.

30m copper reach

Supports 10GbE links up to 30m / 98.4ft.

Auto-MDIX and full duplex

The exact technical table lists Auto-MDIX and full-duplex support.

What to know before buying

The host must support an MSA-compliant 10GBASE-T SFP+ copper transceiver. DDM is not supported, and maximum listed module power is 2.3W.

Australian version and manufacturer warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com Lifetime manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What equipment is SFP10GBTST intended for?

Compatible switches and routers with MSA-compliant SFP+ ports.

What network speed does it support?

10Gbps.

What connector does it use?

RJ45 female.

What is the maximum distance?

Up to 30m / 98.4ft.

Does it support DDM?

No.

Does it support Auto-MDIX?

Yes.

What maximum power consumption is listed?

2.3W maximum.

What warranty applies in Australia?

The Australian version supplied by DeviceDeal is covered by the official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and product assessment.

(SFP10GBTST)

Features and highlights

MSA compliant

Designed for compatible 10GBASE-T switches and routers with MSA-compliant SFP+ ports.

10GBASE-T over RJ45

Provides a 10GbE copper RJ45 network interface.

30m copper reach

Supports 10GbE links up to 30m / 98.4ft.

Auto-MDIX and full duplex

The exact technical table lists Auto-MDIX and full-duplex support.

10GbE copper
RJ45 / 30m
MSA compliant
Lifetime warranty

Warranty confidence: Official StarTech.com lifetime manufacturer warranty in Australia, subject to StarTech.com terms and assessment.

Specifications

Verified specifications for StarTech SFP10GBTST.

Warranty Information

Warranty	Lifetime

Hardware

Compatible Brand	MSA Compliant
Industry Standards	IEEE 802.3an 10GBASE-T
Industry Standards	IEEE 802.3an 10GBASE-T

Performance

Auto MDIX	Yes
Compatible Networks	10 Gbps
DDM	No
Fiber Operating Mode	Full-Duplex
Max Transfer Distance	30 m (98.4 ft)
Maximum Data Transfer Rate	10 Gbps
MTBF	4,598,430 hours
Type	Copper

Connector(s)

Local Unit Connectors	1 - RJ-45 Female

Special Notes / Requirements

System and Cable Requirements	MSA compliant SFP+ port

Power

Power Consumption (In Watts)	2.3 W (max.)

Environmental

Humidity	5~95% RH
Operating Temperature	0°C to 70°C (32°F to 158°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)

Physical Characteristics

Color	Silver
Enclosure Type	Zinc Alloy
Product Height	0.5 in [1.3 cm]
Product Length	2.8 in [70 mm]
Product Width	0.5 in [13.9 mm]
Weight of Product	1 oz [28 g]

Packaging Information

Package Height	1.2 in [30 mm]
Package Length	4.7 in [12 cm]
Package Width	2.9 in [74 mm]
Shipping (Package) Weight	2.1 oz [60 g]

What's in the Box

Included in Package	1 - SFP+ transceiver

SKU	SFP10GBTST
Barcode #	65030873376
Brand	Startech
Shipping Weight	0.0300kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.120m
Shipping Cubic	0.000600000m3
