StarTech Palo Alto Networks SX Compatible SFP Transceiver Module, 1000Base-SX - SX-ST
Model # SX-ST
-
SKU: SX-ST
- Pick Up Available
- Australian Warranty
- Checkout Securely

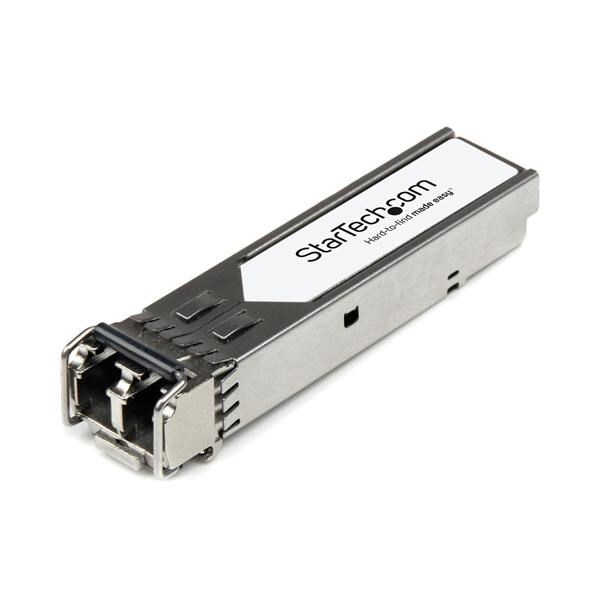

The SX-ST is a Palo Alto PAN-SFP-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Palo Alto brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
- Type: Multi Mode
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 95,832,027 hours
- Power Consumption: Low power consumption
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
(SX-ST)
Specifications
| Warranty Information | Warranty | Lifetime |
|---|---|---|
| Material | Steel | |
| Hardware | Compatible Brand | Palo Alto Networks |
| Industry Standards | IEEE 802.3ae 1000BASE-SX | |
| Packaging Information | Package Height | 1.2 in [31 mm] |
| Package Length | 4.5 in [11.5 cm] | |
| Shipping (Package) Weight | 1.8 oz [50 g] | |
| Package Width | 3.5 in [90 mm] | |
| Performance | DDM | Yes |
| Maximum Data Transfer Rate | 1.25 Gbps | |
| Max Transfer Distance | 550 m (1804 ft) | |
| MTBF | 629,953,711 hours | |
| Wavelength | 850nm | |
| Type | Multi Mode | |
| Compatible Networks | 1000 Mbps (1 Gbps) | |
| Fiber Operating Mode | Full-Duplex | |
| Physical Characteristics | Product Height | 0.5 in [13.7 mm] |
| Product Length | 0.5 in [13.9 mm] | |
| Weight of Product | 0.7 oz [20 g] | |
| Product Width | 2.3 in [58.4 mm] | |
| What's in the Box | 1 - Included in Package | SFP Transceiver |
| SKU | SX-ST |
| Barcode # | 65030885614 |
| Brand | Startech |
| Shipping Weight | 0.0400kg |
