StarTech SATA to mSATA Adapter Converter Card - SAT32MSATM
Model # SAT32MSATM
-
SKU: SAT32MSATM
- Pick Up Available
- Australian Warranty
- Checkout Securely

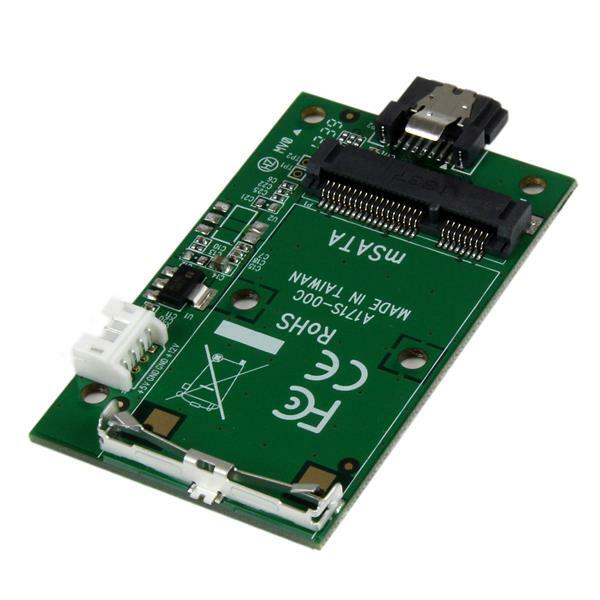

The SAT32MSATM SATA to mSATA adapter enables you to connect an mSATA SSD to any standard SATA port, ideal for connecting an mSATA SSD to an ITX computer systems that does not have an mSATA port.
The adapter enables you to harness the speed of upgrading to a faster drive by connecting an mSATA SSD to any SATA-enabled desktop computer. Allowing for faster boot time, and increased performance in regular operation.
For a hassle-free, tool-less installation where space may be limited the adapter connects and mounts directly into the SATA port.
The SAT32MSATM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
- Install your primary operating system on a faster SSD drive, and keep your larger standard HDD in the same system for bulk storage
- Add an mSATA drive to an ITX computer system with only standard SATA ports
The StarTech.com Advantage
- Maximize system speed by adding SSD performance
- Hassle-free and compact installation with SATA port mounting and no installation bracket required
(SAT32MSATM)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Compatible Drive Types | mSATA (Mini SATA) | |
| Drive Installation | Fixed | |
| Number of Drives | 1 | |
| Performance | ||
| Type and Rate | SATA III (6 Gbps) | |
| Connector(s) | ||
| Drive Connectors | 1 - mSATA (52 pin, Mini SATA) Slot Female | |
| Host Connectors | 1 - LP4 (4 pin, PWM) Male | |
| 1 - SATA (7 pin, Data) Receptacle | ||
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Environmental | ||
| Humidity | Operating 20% to 80% Non Operating 15% to 90% | |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) | |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) | |
| Physical Characteristics | ||
| Product Height | 0.3 in [0.7 cm] | |
| Product Length | 3 in [76 mm] | |
| Product Width | 1.6 in [41 mm] | |
| Weight of Product | 0.5 oz [14 g] | |
| Packaging Information | ||
| Package Height | 0.4 in [10 mm] | |
| Package Length | 4.9 in [12.5 cm] | |
| Package Width | 8.9 in [22.5 cm] | |
| Shipping (Package) Weight | 1.2 oz [35 g] | |

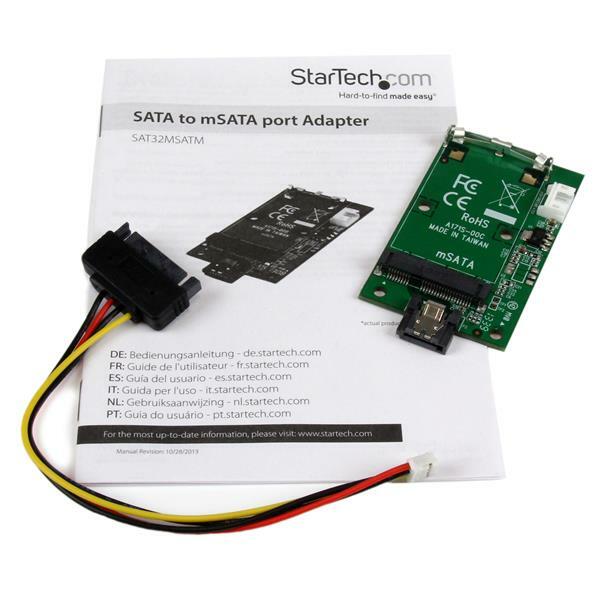

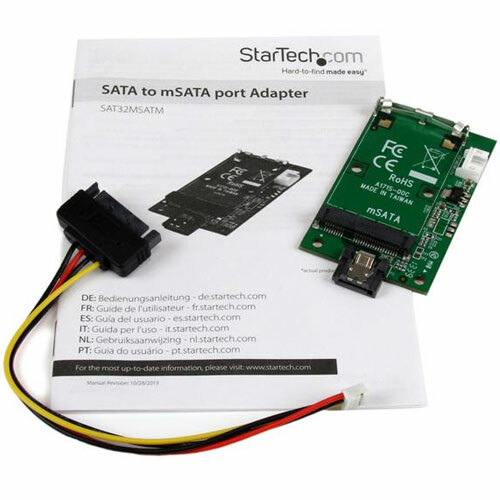

| What's in the Box | ||
| Included in Package | 1 - SATA to mSATA Adapter | |
| 1 - SATA Power to 4-pin Power Adapter | ||
| 1 - Instruction Manual | ||
| SKU | SAT32MSATM |
| Barcode # | 65030854795 |
| Brand | Startech |
| Shipping Weight | 0.0300kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000600000m3 |
