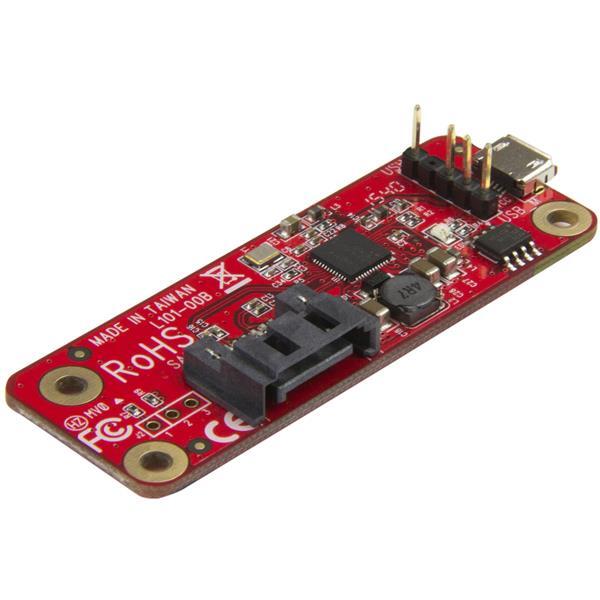

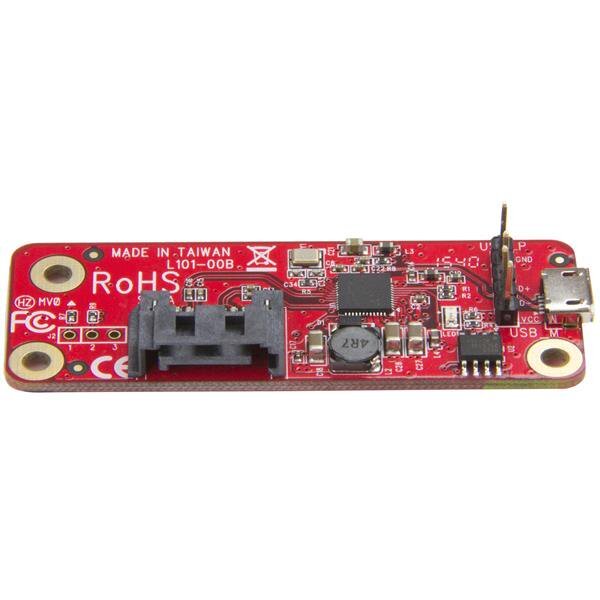

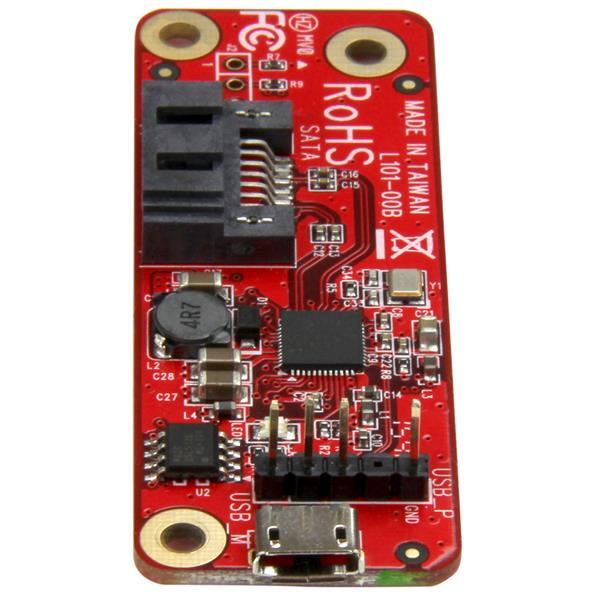

StarTech USB to SATA Converter for Raspberry Pi and Development Boards PIB2S31
Model # PIB2S31
-
SKU: PIB2S31
- Pick Up Available
- Australian Warranty
- Checkout Securely
Connect any SATA device to your development board, to increase its data storage capacity and performance
Increase the data storage capacity of your Raspberry Pi or other development board, by connecting it directly to a SATA-based drive. Perfect for custom projects and applications, this USB to SATA converter supports all models of Raspberry Pi as well as other development boards.
Add data storage and enhanced capabilities to your development board
This convenient USB 2.0 SATA converter lets you overcome data storage limitations by enabling you to connect a SATA drive or SATA optical drive through your boardÕs USB-A port. This enables you to access a wide variety of storage formats including solid-state drives or hard drives, DVD-ROM drives or CD-ROM drives.
A convenient integrated solution
The USB to SATA converter integrates seamlessly with your existing development board. ItÕs the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions.
Easy to install
Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install, and doesnÕt require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
StarTech.com provides industry-leading support to get you up and running quickly. The PIB2S31 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Raspberry Pi is a trademark of the Raspberry Pi Foundation
Applications
- Increase data storage capacity and capabilities for Raspberry Pi development boards to create custom applications
- Develop solutions for business applications, such as: surveillance; media applications, like news boards; simple servers to host a website or video; and IoT/automation solutions, such as lighting and temperature control
- Create custom development-board based applications for home use
null
(PIB2S31)
| Warranty Information | ||
|---|---|---|
| Warranty | 2 Years | |
| Hardware | ||
| Bus Type | USB 2.0 | |
| Chipset ID | Renesas/NEC - µPD720231A | |
| Compatible Drive Types | SATA | |
| Interface | USB 2.0 | |
| Number of Drives | 1 | |
| Performance | ||
| ATAPI Support | Yes | |
| Maximum Data Transfer Rate | 480 Mbps | |
| MTBF | 6,481,043 hrs | |
| Type and Rate | USB 2.0 - 480 Mbit/s | |
| SATA III (6 Gbps) | ||
| Connector(s) | ||
| Drive Connectors | 1 - 7 pin SATA Data Plug | |
| Host Connectors | 1 - USB Micro-B (5 pin) | |
| Software | ||
| OS Compatibility | OS independent; No software or drivers required | |
| Power | ||
| Power Source | USB-Powered | |
| Environmental | ||
| Humidity | 15% ~ 90% RH | |
| Operating Temperature | 5¡C to 50¡C (41¡F to 122¡F) | |
| Storage Temperature | -25¡C to 70¡C (-13¡F to 158¡F) | |
| Physical Characteristics | ||
| Color | Red | |
| Product Height | 0.4 in [1.1 cm] | |
| Product Length | 2.6 in [66 mm] | |
| Product Width | 0.9 in [23 mm] | |
| Weight of Product | 0.3 oz [7.6 g] | |
| Packaging Information | ||
| Package Height | 1.3 in [32 mm] | |
| Package Length | 7 in [17.8 cm] | |
| Package Width | 5.6 in [14.3 cm] | |
| Shipping (Package) Weight | 2.5 oz [70.4 g] | |
| What's in the Box | ||
| Included in Package | 1 - USB to SATA converter | |
| 1 - USB-A to Micro-B cable | ||
| 2 - standoffs | ||
| 2 - nuts | ||
| 2 - screws | ||
| 1 - quick-start guide | ||
| SKU | PIB2S31 |
| Barcode # | 65030866798 |
| Brand | Startech |
| Shipping Weight | 0.0800kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.050m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000850000m3 |
