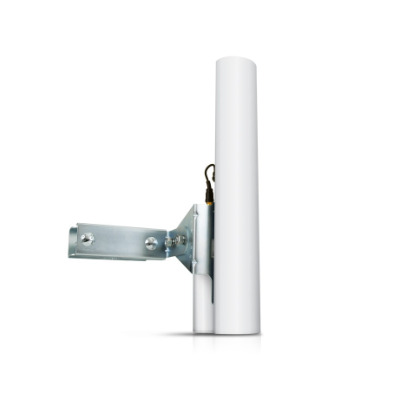

Ubiquiti AM-5G16-120 4.9-5.9GHz AirMax Base Station, 16dBi, 120 deg w/ rocket kit Key Features Integrated mount for Rocket Ideal for sectored base station deployment 120 degree sector with 4 degree vertical beam 2x2 MIMO 5.8GHz Designed specifically for airMAX Rocket M5. Usage AirMAX Sector is a Carrier Class 2x2 Dual Polarity MIMO Base Station Antenna that was designed to seamlessly integrate with Rocket M5 radios Pair a Rocket M5 radio with an airMAX Sector reach to create a high powered PtMP base station, covering a 120 degree sector 120 degree sectors are ideal for when deploying a conventional 3 sector airMAX node The 4-degree vertical beam with high 16dBi gain is ideal for macro-cell base stations. When sectoring in this fashion it's important that each node is integrated with a Rocket M5 GPS in order to take advantage of airMAX's proprietary AirSync protocol AirSync replaces the radio's conventional carrier-sense timing protocol with a inter-radio synchronised TDMA protocol. Instead of each radio polling for a quiet channel before transmitting (and potentially colliding), AirSync detects the GPS coordinates of each unit and synchronises transmissions into separate time slots In addition to GPS synchronisation, multi-sector deployments will require additional antenna shielding - RF-deadening material and RF Armor are advised.

(AM-5G16)

Specifications / Frequency Network Compatibility Yes/No Gain AirMAX M5 2x2 MIMO (5800MHz) compatible 16dBi Electrical Specifications Frequency Range: 5100-5850MHz Input Impedance: 50? VSWR: <1.5:1 Polarisation: Dual Linear (V & H) Cross-Pol Isolation: >22dB H-Pol Beamwidth: 137° (6dB) V-Pol Beamwidth: 118° (6dB) Vertical Beamwidth: 8° Electrical Downtilt: 4° Radiation: Sector Mechanical/Environmental Specifications Cable: 2x RP-SMA jumper cables included Connector: 2x RP-SMA Female Wind Rating: 200km/hr Weight: 1.1kg Mounting: Pole mounting bracket included Dimensions: 367 x 63 x 41mm (L x W x H) EN 302 326 DN2

SKU	AM-5G16
Barcode #	810354020896
Brand	Ubiquiti
Shipping Weight	1.1000kg

Manufacturer Warranty : 1 Year Manufacturer Warranty

Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

Ubiquiti AM-5G16-120 4.9-5.9GHz AirMax Base Station, 16dBi, 120 deg w/ rocket kit

Name: Ubiquiti AM-5G16-120 4.9-5.9GHz AirMax Base Station, 16dBi, 120 deg w/ rocket kit
Brand: Ubiquiti
SKU: AM-5G16
Price: 150 AUD
Availability: OutOfStock
