ALOGIC Thunderbolt 3.0 TURBO Docking Station with USB-C support is one of its kind next generation Thunderbolt 3 dock with cross compatibility across both Thunderbolt 3 and USB-C laptops. It uses full 40Gbps bandwidth when connected to a Thunderbolt 3 laptop to support dual 4K@60H monitors (DisplayPort) 2 x USB-C (10G) 1 x USB-A (10G) 2 x USB-A (5G) Gigabit Ethernet and Combo headphone and mic jack while charging your laptop with 60W of power. The same dock when connected to a USB-C laptop will also support dual 1080P monitors along with all the other downstream ports and charge the laptop with 60W of power.Truly Universal:The dock provides universal compatibility across both Mac and Windows for dual monitor support over all laptops with Thunderbolt 3 or USB-C ports. This enables IT professionals to deploy the TURBO dock as a single dock solution across all users in turn enabling hot desk setups at workplaces with cross platform laptops enabled with either Thunderbolt 3 or USB-C outputsHigh-Definition Dual Display:The TURBO dock supports dual monitors with 4K@60Hz via the twin DisplayPort outputs when connected to a Thunderbolt 3 enabled laptop. It will also support dual monitor with 1080p resolution or a single 4K@30Hz monitor when connected to a USB-C enabled laptop.Complete Connectivity:The ALOGIC TURBO dock features 2 x DisplayPort 2 x USB-C (10G) 1 x USB-A (10G) 2 x USB-A (5G) Gigabit Ethernet and Combo headphone and mic jack to cover all the connectivity requirements.

(TB3DTRG2)

Specifications

Compatible/Used for
Product Type	Docking Station
Warranty	2 Years
Input (Upstream)	Thunderbolt 3 or USB-C (With DisplayPort Alt Mode) with 60w Power Delivery
Lock Slots	Kensington Lock Slot x 1, Kensington Nano Lock Slot x 1
Operating System Compatibility	Mac OS Sierra 10.13 or later with Thunderbolt 3 port, Windows 10 with USB-C or Thunderbolt 3 port

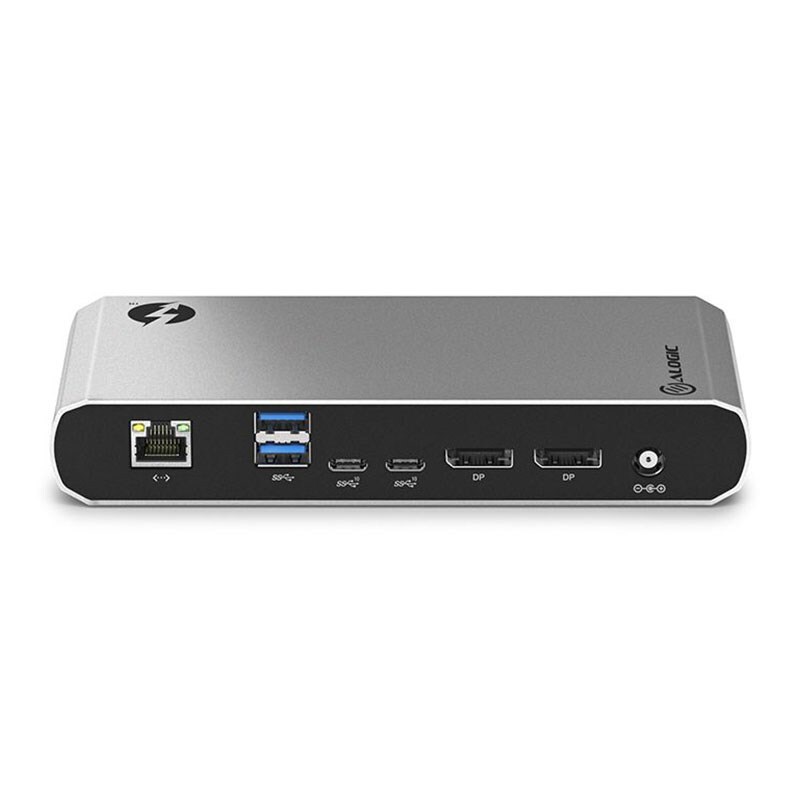

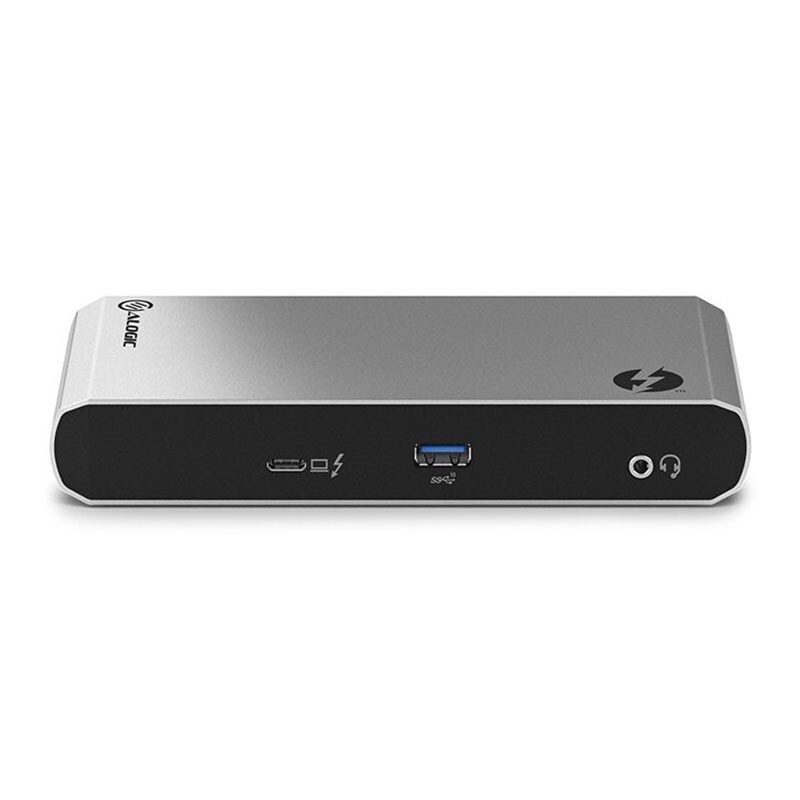

Output (Downsteam)	1 x USB-A 3.1 (Gen 2) – 10G, 2 x USB-A 3.1 (Gen 1) – 5G, 2 x USB-C 3.1 (Gen 2) - 10G, 2 x DisplayPort, 1 x 3.5mm Combo Jack , 1 x Gigabit Ethernet Port
Video Resolution	With Thunderbolt 3 Laptops: Dual display 3840 x 2160 at 60Hz, With USB-C Laptops: Dual display 1080p at 60Hz Single Display 3840 x 2160 at 30Hz
