ATEN UEH4102-AT-U 4-Port USB 2.0 Cat 5 Extender over LAN
Model # UEH4102-AT-U
-
SKU: UEH4102-AT-U
- Pick Up Available
- Australian Warranty
- Checkout Securely
The UEH4102 4-port USB 2.0 Extender over LAN incorporates patented ExtremeUSB® technology that enables users to extend beyond the standard
UEH4102 provides true USB 2.0 extension at up to 480 Mbps across a Gigabit Ethernet Local Area Network (LAN). The Local and Remote units are pre-paired with each other through MAC address – no pairing action required during installation.
A true plug-and-play solution, the UEH4102 is compatible with all leading operating
Package Contents

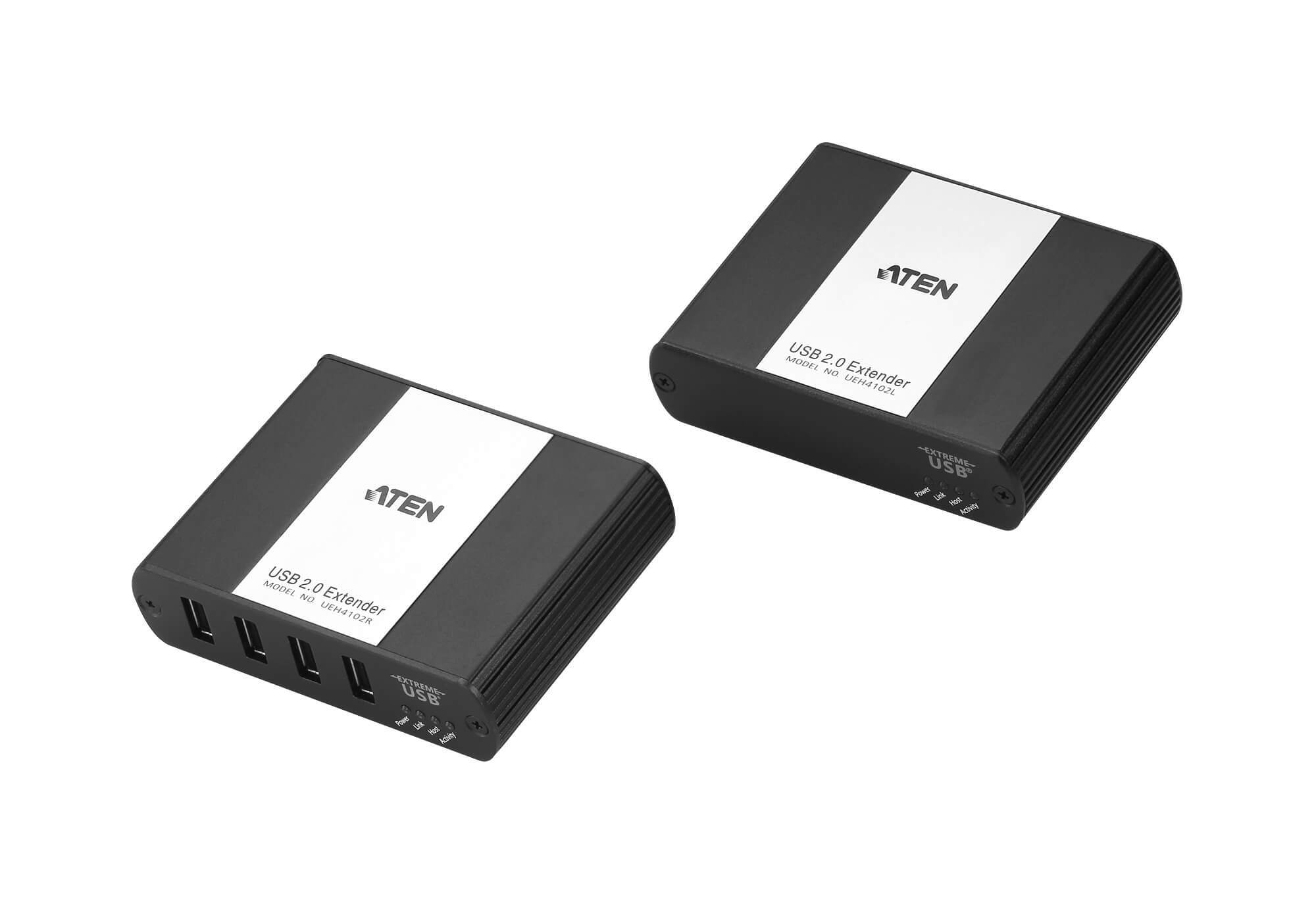

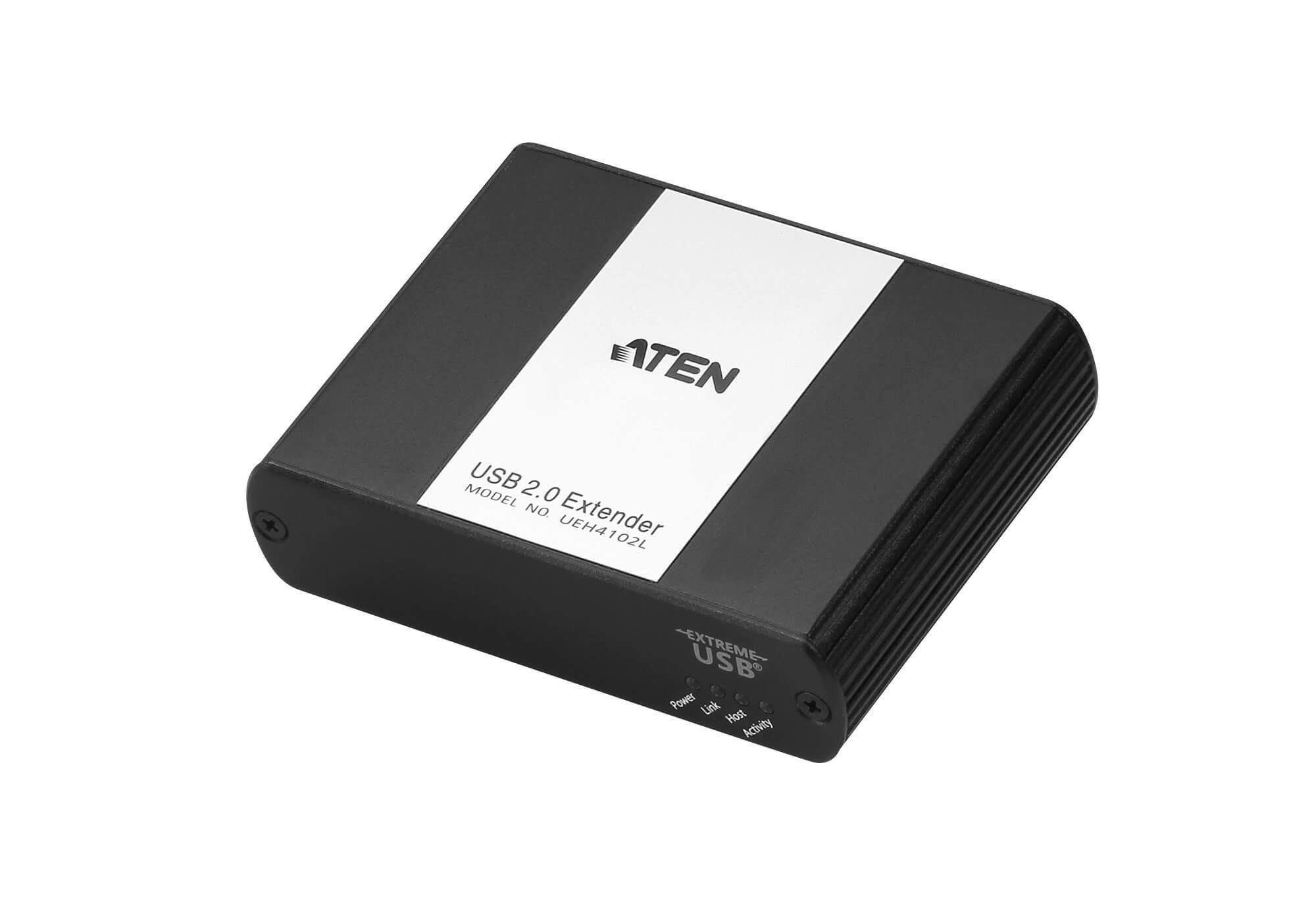

- 1x UEH4102L 4-Port USB 2.0 Cat 5 Extender over LAN (Local unit)
- 1x UEH4102R 4-Port USB 2.0 Cat 5 Extender over LAN (Remote unit)
- 1x Power Adapter
- 1x USB 2.0 Type-A to Type-B Cable
- 1x User Instructions
(UEH4102-AT-U)
| Function | UEH4102L | UEH4102R |
| Connectors | ||
| USB Port | 1 x USB Type B Female | 4 x USB Type A Female |
| Link | 1 x Gigabit Ethernet Female | 1 x Gigabit Ethernet Female |
| Power | N/A | 1 x DC Power Jack |
| USB Specification | USB 2.0 High/Full/Low Speed | USB 2.0 High/Full/Low Speed |
| USB Devices Supported | N/A | 4 USB Devices |
| Power Consumption | DC5V:15WBTU | DC5V:15WBTU |
| Network Protocol | 10/100/1000BASE-T Ethernet (recommend 1000BASE-T Ethernet for best performance) | 10/100/1000BASE-T Ethernet (recommend 1000BASE-T Ethernet for best performance) |
| Environmental | ||
| Storage Temperature | -20° - 70°C | -20° - 70°C |
| Humidity | 0 - 80% RH, Non-condensing | 0 - 80% RH, Non-condensing |
| Operating Temperature | 0° - 50° C | 0° - 50° C |
| Physical Properties | ||
| Weight | 0.19 kg ( 0.42 lb ) | 0.19 kg ( 0.42 lb ) |
| Housing | Metal | Metal |
| Dimensions (L x W x H) | 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.) | 10.00 x 7.60 x 2.60 cm (3.94 x 2.99 x 1.02 in.) |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | UEH4102-AT-U |
| Barcode # | 4719264646454 |
| Brand | ATEN |
| Shipping Weight | 0.1900kg |
