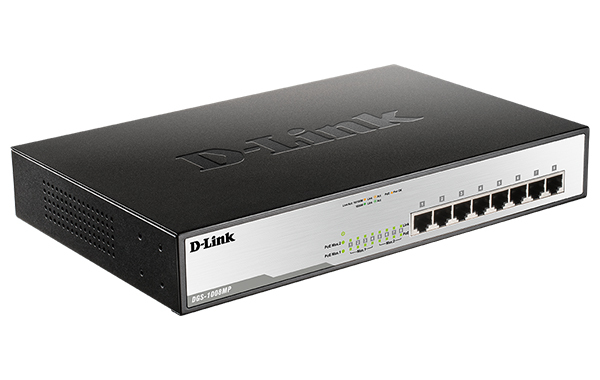

8-Port Gigabit PoE Unmanaged Switch with 140W PoE Budget

  • 8 Gigabit ports with PoE/PoE+ support
  • 140 Watts PoE power budget
  • Compact size
  • Robust metal rackmountable housing
  • Fanless design for silent operation
  • Plug-and-play installation



Something of a powerhouse when it comes to Power-over-Ethernet switches, this compact beauty offers PoE to 802.3af/at standard across all eight Gigabit Ethernet ports, at up to 30 Watts per port with a power budget total of 140 Watts. Which, put simply, means you can power devices such as access points, IP phones and video surveillance cameras simply by plugging them in with an Ethernet cable – no additional power required.





PoE

 The DGS-1008MP features 8 x 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ protocol. Each of the 8 PoE+ ports can supply up to 30 watts with a total PoE power budget of 140 watts. PoE is especially suitable for devices that are far from power outlets or when you want to minimise the clutter of extra cables.









Superior Performance

 No configuration is required and installation is quick and easy. Support for Auto MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch. Auto- Negotiation on each port senses the link speed of a network device (10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans ensuring silent operation wherever it is installed. With wire-speed filtering and store-and-forward switching, the DGS-1008MP maximises network performance while minimising the transmission of bad network packets.











Energy Saving

DGS-1008MP switches feature both D-Link Green 3.0 Technology and IEEE802.3az Energy Efficient Ethernet (EEE) to cut operating costs without sacrificing operational performance or functionality. With D-Link Green technology, the switches constantly monitor the link status and network utilisation of every port. The switches also automatically detect cable length and can reduce transmission power usage for shorter cables. By pairing EEE capable devices with DGS-1008MP switches organizations can drastically reduce power consumption by automatically putting ports into a sleep mode when not being used.









(DGS-1008MP)

Rackmountable : Yes
Compact Design for Home and Office Use : Yes
Quick, Simple Plug-and-Play Installation : Yes
Dimensions (Size) : 280 x 180 x 44 mm
Warranty : 3-Year Limited Warranty
Port Type : Gigabit
Number of Ports : 5 - 8
PoE Type Required : PoE
Design : Metal|Fanless|Rackmountable
Ethernet Speed : Gigabit
LAN Ports : 8
PoE ports : 8 Ports
Housing : Metal
Power Supply : Internal
Fanless Design for Silent Operation : Yes



SKU DGS-1008MP
Barcode # 790069420337
Brand D-Link
Shipping Weight 2.6400kg

Manufacturer Warranty

3 Years Limited Warranty



  Manufacturer Contact Info

  http://www.dlink.com.au/tech/
  1300 766 868
