TL-SG1006PP

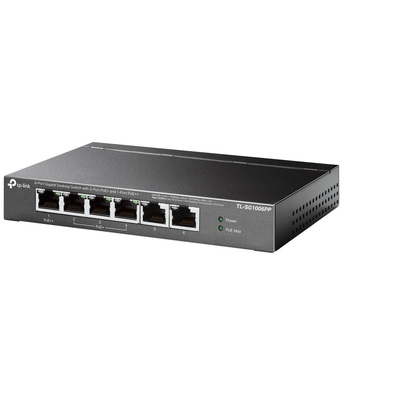

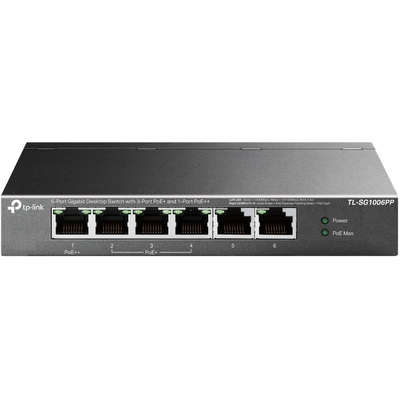

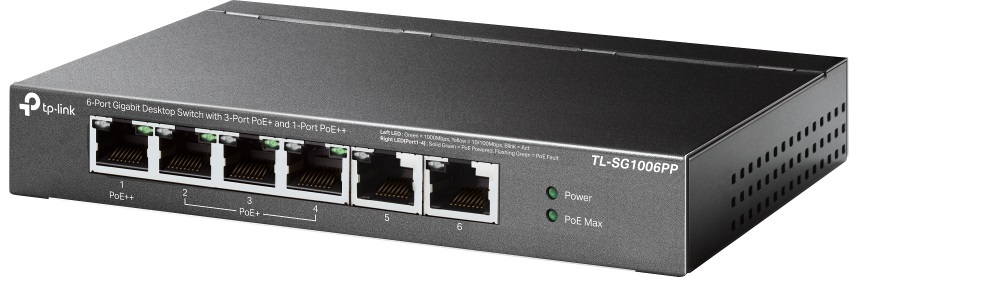

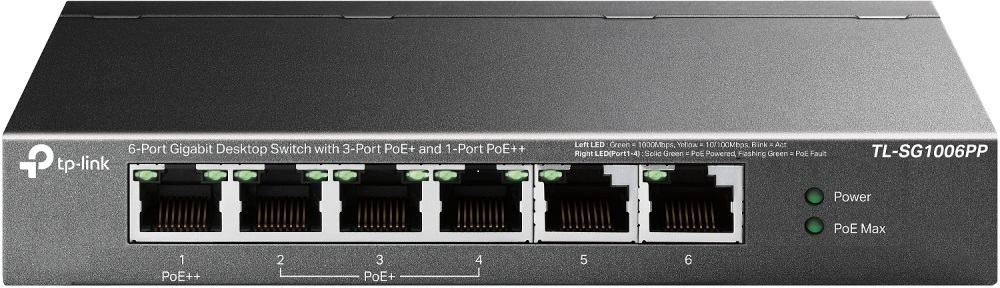

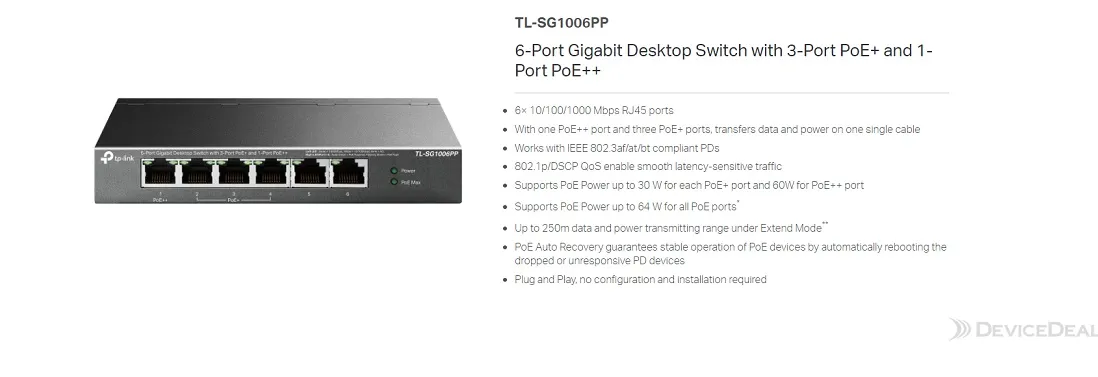

TP-Link TL-SG1006PP 6-Port Gigabit Desktop Switch with 3-Port PoE+ and 1-Port PoE++

  • 6× 10/100/1000 Mbps RJ45 ports
  • With one PoE++ port and three PoE+ ports, transfers data and power on one single cable
  • Works with IEEE 802.3af/at/bt compliant PDs
  • 802.1p/DSCP QoS enable smooth latency-sensitive traffic
  • Supports PoE Power up to 30 W for each PoE+ port and 60W for PoE++ port
  • Supports PoE Power up to 64 W for all PoE ports*
  • Up to 250m data and power transmitting range under Extend Mode**
  • PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
  • Plug and Play, no configuration and installation required

(TL-SG1006PP)

HARDWARE FEATURES
Interface • 6× 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
External Power Supply External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate 8.928 Mpps
PoE Ports (RJ45) • Port 1 compliances with 802.3af/at/bt; Ports 2-4 compliance with 802.3af/at
• Power Supply: 64 W
Mac Address Table 4K
Switching Capacity 12 Gbps
Dimensions ( W x D x H ) 6.2x4.0x1.0 in (158x101x25 mm)
Max Power Consumption • 4.75 W (220/50 Hz. no PD connected)
• 71.46 W (220/50 Hz. with 64 W PD connected)
Max Heat Dissipation • 16.20 BTU/h (220/50 Hz. no PD connected)
• 243.68 BTU/h (220/50 Hz. with 64 W PD connected)
SOFTWARE FEATURES
Advanced Features • Compatible With IEEE 802.3af/at/bt Compliant PDs
• Mac Address Auto-Learning And Auto-Aging
• IEEE 802.3x Flow Control
• 802.1p/DSCP QoS
• IGMP Snooping
• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-4)
Transfer Method Store-And-Forward
OTHERS
Certification FCC, CE, RoHS

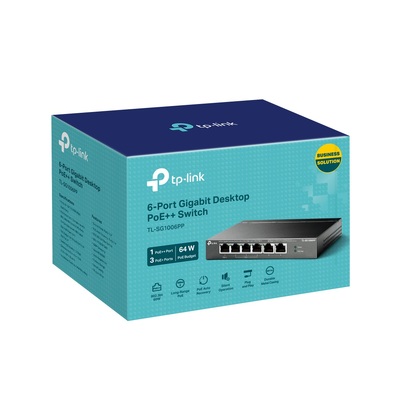

Package Contents • TL-SG1006PP
• Power Adapter
• Installation Guide
Environment • Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing

SKU TL-SG1006PP
Barcode # 4895252500325
Brand TP-LINK
Shipping Weight 1.1600kg
Shipping Width 0.100m
Shipping Height 0.050m
Shipping Length 0.280m
Shipping Cubic 0.001400000m3
Manufacturer Warranty
5 Years Limited Warranty
Manufacturer Contact Info
http://www.tp-link.com.au
1300 875 465
