Mixed-use enterprise storage
The supplied product information positions the Kingston DC600ME for mixed-use server workloads in data-centre environments.
KINGSTON 480G DC600ME TCG Opal 2.5" Enterprise SATA SSD - SEDC600ME-480G
Model # SEDC600ME/480G
-
SKU: SEDC600ME-480G
- Pick Up Available
- Australian Warranty
- Checkout Securely
Kingston enterprise 2.5-inch SATA solid-state drive

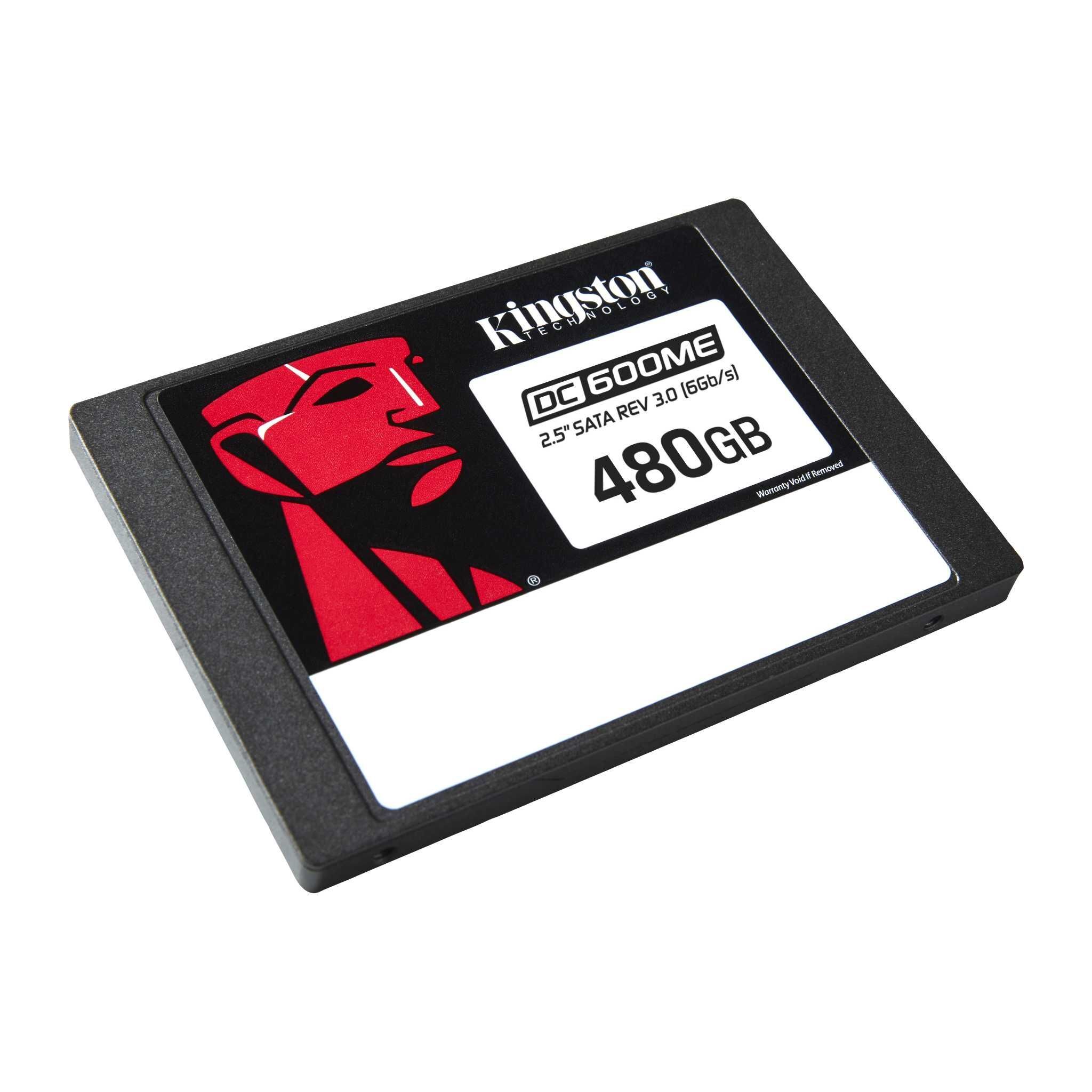

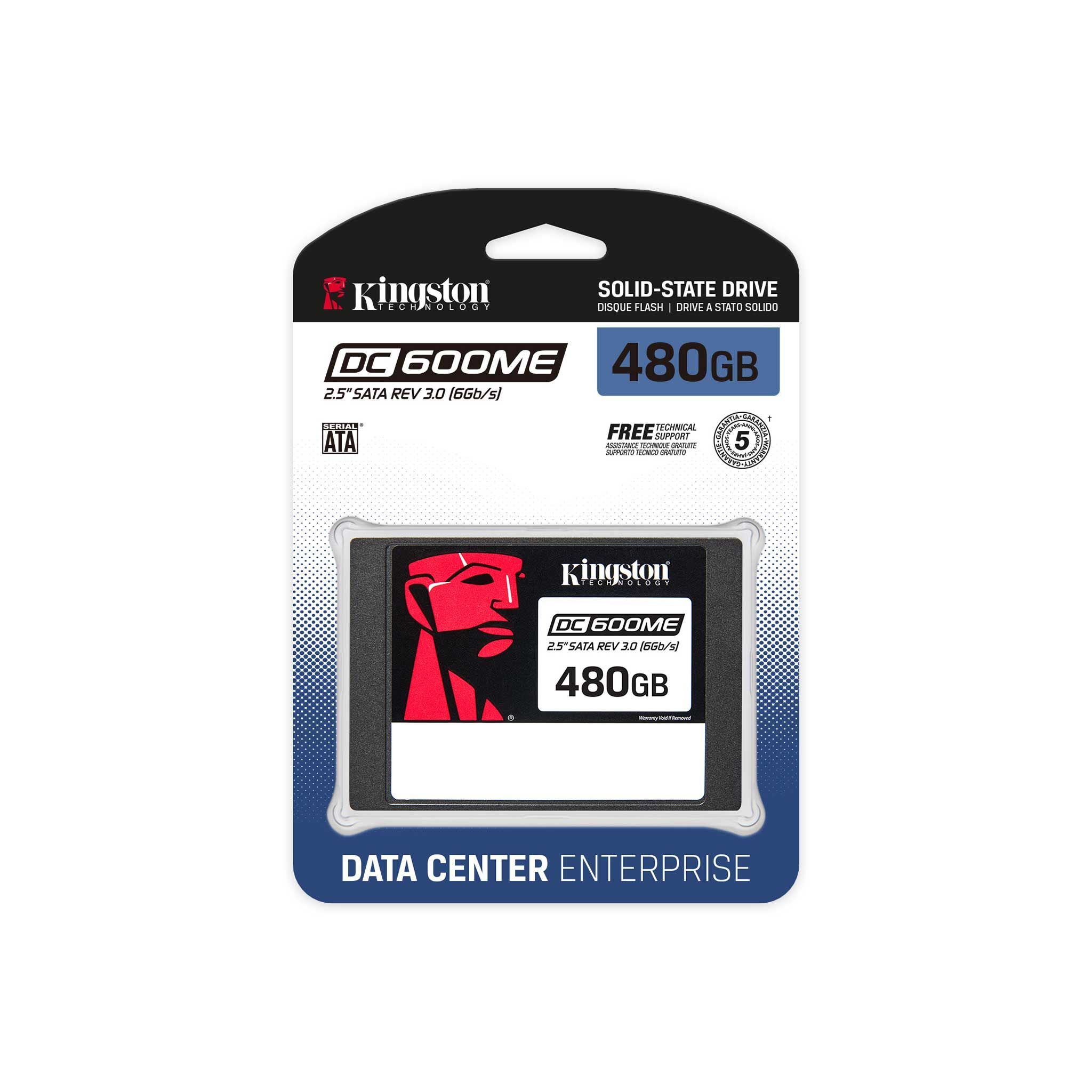

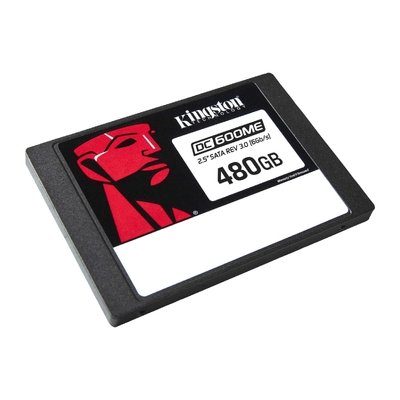

Kingston DC600ME 480GB 2.5-inch SATA Enterprise SSD
A 480GB Kingston DC600ME mixed-use data-centre SSD with a 2.5-inch SATA 6Gb/s interface, 3D TLC NAND, hardware power-loss protection, up to 560MB/s read and 470MB/s write, and 876TBW endurance, plus TCG Opal 2.0 and AES 256-bit encryption.
- 480GB capacity
- 2.5-inch SATA 6Gb/s
- Up to 560MB/s / 470MB/s
- PLP and 876TBW AES 256-bit
Product highlights
Capacity-specific performance
This exact capacity is specified at up to 560MB/s sequential read, 470MB/s sequential write and 94,000/41,000 IOPS steady-state 4K IOPS.
Hardware power-loss protection
On-board hold-up capacitors are identified to protect data during an unexpected power interruption and support successful reinitialisation.
TCG Opal 2.0 and AES 256-bit
The supplied description and specifications identify TCG Opal 2.0 support and AES 256-bit encryption for DC600ME.
Frequently asked questions
What is the Kingston SEDC600ME-480G?
It is a 480GB Kingston DC600ME 2.5-inch SATA enterprise SSD for mixed-use server workloads.
What sequential performance is stated?
This exact capacity is specified at up to 560MB/s read and 470MB/s write.
What steady-state 4K performance is stated?
The supplied capacity table states 94,000 read IOPS and 41,000 IOPS write IOPS.
What is the endurance rating?
876TBW and 1 DWPD over five years are supplied for this capacity.
Which interface does it use?
SATA Rev. 3.0 at 6Gb/s is specified, with backward compatibility to SATA Rev. 2.0 at 3Gb/s.
Does it have power-loss protection?
Yes. Hardware-based on-board power-loss protection via hold-up capacitors is identified.
Does this model support hardware encryption?
Yes. The supplied DC600ME information identifies TCG Opal 2.0 support and AES 256-bit encryption.
Which monitoring features are identified?
Enterprise SMART tools cover reliability, usage, life remaining, wear levelling and temperature.
Will it work in every server?
No. Confirm 2.5-inch SATA, capacity, power, thermal, hot-plug and server-platform requirements before ordering.
What warranty applies?
DeviceDeal is an authorised Kingston reseller, and the supplied specifications state a limited five-year Kingston manufacturer warranty with free technical support.
(SEDC600ME-480G)
Features and highlights
Mixed-use enterprise storage
The supplied product information positions the Kingston DC600ME for mixed-use server workloads in data-centre environments.
Capacity-specific performance
This exact capacity is specified at up to 560MB/s sequential read, 470MB/s sequential write and 94,000/41,000 IOPS steady-state 4K IOPS.
Hardware power-loss protection
On-board hold-up capacitors are identified to protect data during an unexpected power interruption and support successful reinitialisation.
TCG Opal 2.0 and AES 256-bit
The supplied description and specifications identify TCG Opal 2.0 support and AES 256-bit encryption for DC600ME.
3D TLC with DRAM cache
The supplied specifications identify 3D TLC NAND and a DRAM cache.
Latency and IOPS consistency
The supplied 99.999% quality-of-service read/write latency figure for this exact model and capacity is 500/130 µs.
Enterprise SMART tools
Reliability tracking, usage statistics, life remaining, wear levelling and temperature monitoring are identified.
Endurance and reliability
This exact capacity is specified at 876TBW, 1 DWPD over five years and a 2 million-hour MTBF.
Five-year warranty
The supplied specifications state a limited five-year Kingston manufacturer warranty with free technical support.
Key points
- 480GB capacity
- 2.5-inch SATA 6Gb/s
- Up to 560MB/s / 470MB/s
- PLP and 876TBW AES 256-bit
Technical specifications
Kingston DC600ME 480GB 2.5-inch SATA Enterprise SSD
Specifications are organised from the information supplied for SKU SEDC600ME-480G.
| Product details | |
| Brand | Kingston |
|---|---|
| Series | DC600ME |
| Model | SEDC600ME-480G |
| Capacity | 480GB |
| Form factor | 2.5-inch |
| Interface | SATA Rev. 3.0, 6Gb/s; backward compatible with SATA Rev. 2.0, 3Gb/s |
| NAND | 3D TLC |
| DRAM cache | Yes |
| Capacity-specific performance | |
| Sequential read | Up to 560MB/s |
| Sequential write | Up to 470MB/s |
| Steady-state 4K read | 94,000 IOPS |
| Steady-state 4K write | 41,000 IOPS |
| 99.999% QoS read/write latency | 500/130 µs |
| Protection and management | |
| Hardware power-loss protection | Yes |
| Encryption | TCG Opal 2.0 and AES 256-bit |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling and temperature |
| Wear levelling | Static and dynamic |
| Endurance and physical | |
| Endurance | 876TBW; 1 DWPD over 5 years; 1.66 DWPD over 3 years |
| Power consumption | Idle 1.30W; average 1.45W; max read 1.6W; max write 3.6W |
| Storage temperature | -40°C to 85°C |
| Operating temperature | 0°C to 70°C |
| Dimensions | 69.9 × 100 × 7 mm |
| Weight | 92.34 g |
| Operating vibration | 2.17G peak, 7800Hz |
| Non-operating vibration | 20G peak, 102,000Hz |
| MTBF | 2 million hours |
| Warranty | |
| Manufacturer warranty / support | Limited 5 years with free technical support |
| SKU | SEDC600ME-480G |
| Brand | KINGSTON |
| Shipping Weight | 0.3000kg |
Manufacturer warranty
Kingston warranty information
DeviceDeal is an authorised Kingston reseller. This product is supplied with the applicable Kingston manufacturer warranty in Australia, subject to the manufacturer's warranty terms, eligibility requirements and product assessment. The supplied product specification states a limited five-year warranty with free technical support.
Please retain your DeviceDeal tax invoice or order record as proof of purchase for any eligible warranty claim.
