Mixed-use enterprise storage
The supplied product information positions the Kingston DC600ME for mixed-use server workloads in data-centre environments.
Kingston DC600ME 7.68TB 2.5-inch SATA 6Gb/s Data Center SSD with TCG Opal 2.0 and AES 256-bit Encryption - Up to 560MB/s Read, 530MB/s Write - SEDC600
Model # SEDC600ME/7680G
-
SKU: SEDC600ME-7680G
- Pick Up Available
- Australian Warranty
- Checkout Securely

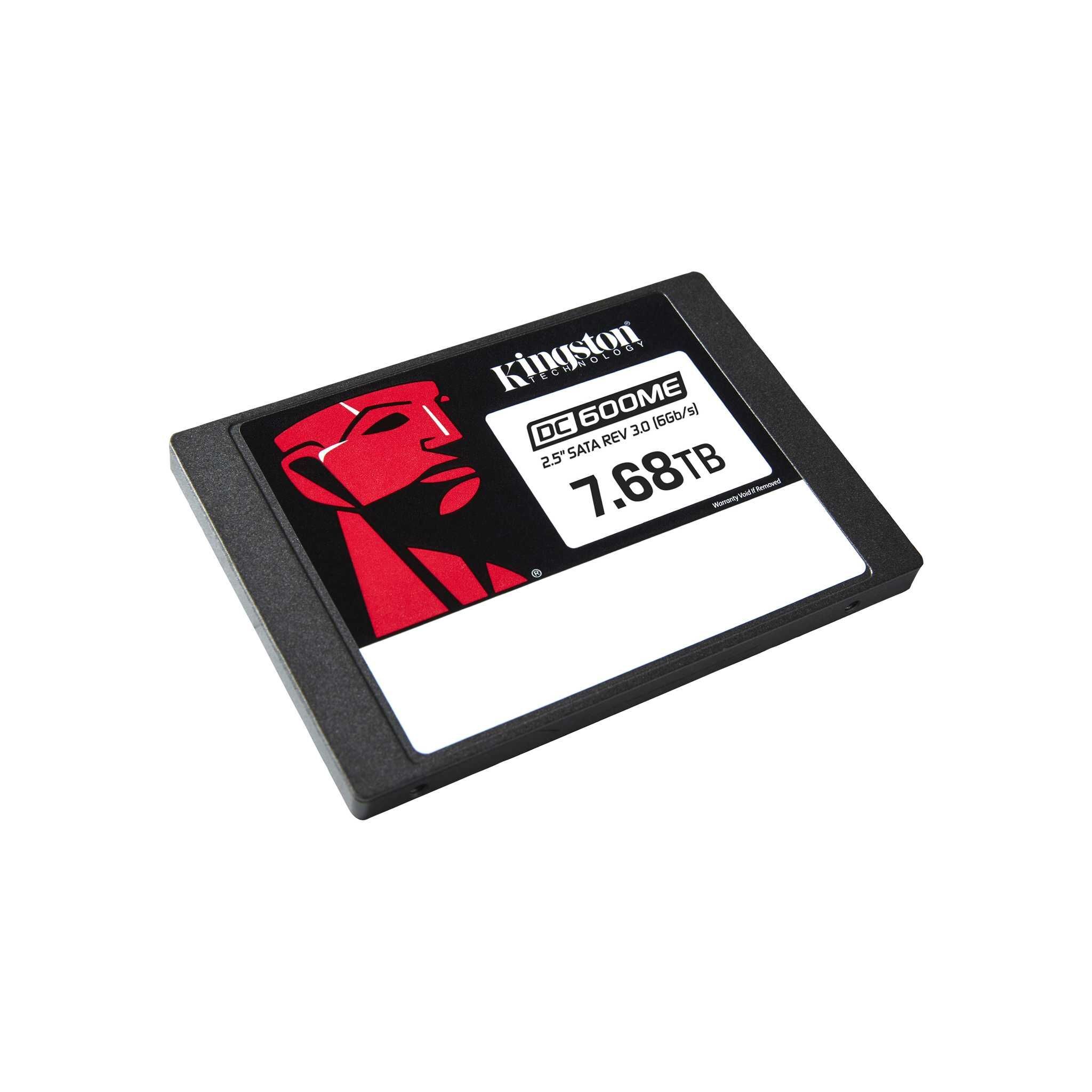

Kingston enterprise 2.5-inch SATA solid-state drive
Kingston DC600ME 7.68TB 2.5-inch SATA Enterprise SSD
A 7.68TB Kingston DC600ME mixed-use data-centre SSD with a 2.5-inch SATA 6Gb/s interface, 3D TLC NAND, hardware power-loss protection, up to 560MB/s read and 530MB/s write, and 14,016TBW endurance, plus TCG Opal 2.0 and AES 256-bit encryption.
- 7.68TB capacity
- 2.5-inch SATA 6Gb/s
- Up to 560MB/s / 530MB/s
- PLP and 14,016TBW AES 256-bit
Product highlights
Capacity-specific performance
This exact capacity is specified at up to 560MB/s sequential read, 530MB/s sequential write and 94,000/34,000 IOPS steady-state 4K IOPS.
Hardware power-loss protection
On-board hold-up capacitors are identified to protect data during an unexpected power interruption and support successful reinitialisation.
TCG Opal 2.0 and AES 256-bit
The supplied description and specifications identify TCG Opal 2.0 support and AES 256-bit encryption for DC600ME.
Frequently asked questions
What is the Kingston SEDC600ME-7680G?
It is a 7.68TB Kingston DC600ME 2.5-inch SATA enterprise SSD for mixed-use server workloads.
What sequential performance is stated?
This exact capacity is specified at up to 560MB/s read and 530MB/s write.
What steady-state 4K performance is stated?
The supplied capacity table states 94,000 read IOPS and 34,000 IOPS write IOPS.
What is the endurance rating?
14,016TBW and 1 DWPD over five years are supplied for this capacity.
Which interface does it use?
SATA Rev. 3.0 at 6Gb/s is specified, with backward compatibility to SATA Rev. 2.0 at 3Gb/s.
Does it have power-loss protection?
Yes. Hardware-based on-board power-loss protection via hold-up capacitors is identified.
Does this model support hardware encryption?
Yes. The supplied DC600ME information identifies TCG Opal 2.0 support and AES 256-bit encryption.
Which monitoring features are identified?
Enterprise SMART tools cover reliability, usage, life remaining, wear levelling and temperature.
Will it work in every server?
No. Confirm 2.5-inch SATA, capacity, power, thermal, hot-plug and server-platform requirements before ordering.
What warranty applies?
DeviceDeal is an authorised Kingston reseller, and the supplied specifications state a limited five-year Kingston manufacturer warranty with free technical support.
(SEDC600ME-7680G)
Features and highlights
Mixed-use enterprise storage
The supplied product information positions the Kingston DC600ME for mixed-use server workloads in data-centre environments.
Capacity-specific performance
This exact capacity is specified at up to 560MB/s sequential read, 530MB/s sequential write and 94,000/34,000 IOPS steady-state 4K IOPS.
Hardware power-loss protection
On-board hold-up capacitors are identified to protect data during an unexpected power interruption and support successful reinitialisation.
TCG Opal 2.0 and AES 256-bit
The supplied description and specifications identify TCG Opal 2.0 support and AES 256-bit encryption for DC600ME.
3D TLC with DRAM cache
The supplied specifications identify 3D TLC NAND and a DRAM cache.
Latency and IOPS consistency
The supplied 99.999% quality-of-service read/write latency figure for this exact model and capacity is 200/100 µs.
Enterprise SMART tools
Reliability tracking, usage statistics, life remaining, wear levelling and temperature monitoring are identified.
Endurance and reliability
This exact capacity is specified at 14,016TBW, 1 DWPD over five years and a 2 million-hour MTBF.
Five-year warranty
The supplied specifications state a limited five-year Kingston manufacturer warranty with free technical support.
Key points
- 7.68TB capacity
- 2.5-inch SATA 6Gb/s
- Up to 560MB/s / 530MB/s
- PLP and 14,016TBW AES 256-bit
Technical specifications
Kingston DC600ME 7.68TB 2.5-inch SATA Enterprise SSD
Specifications are organised from the information supplied for SKU SEDC600ME-7680G.
| Product details | |
| Brand | Kingston |
|---|---|
| Series | DC600ME |
| Model | SEDC600ME-7680G |
| Capacity | 7.68TB |
| Form factor | 2.5-inch |
| Interface | SATA Rev. 3.0, 6Gb/s; backward compatible with SATA Rev. 2.0, 3Gb/s |
| NAND | 3D TLC |
| DRAM cache | Yes |
| Capacity-specific performance | |
| Sequential read | Up to 560MB/s |
| Sequential write | Up to 530MB/s |
| Steady-state 4K read | 94,000 IOPS |
| Steady-state 4K write | 34,000 IOPS |
| 99.999% QoS read/write latency | 200/100 µs |
| Protection and management | |
| Hardware power-loss protection | Yes |
| Encryption | TCG Opal 2.0 and AES 256-bit |
| Enterprise SMART tools | Reliability tracking, usage statistics, life remaining, wear levelling and temperature |
| Wear levelling | Static and dynamic |
| Endurance and physical | |
| Endurance | 14,016TBW; 1 DWPD over 5 years; 1.66 DWPD over 3 years |
| Power consumption | Idle 1.30W; average 1.45W; max read 1.6W; max write 3.6W |
| Storage temperature | -40°C to 85°C |
| Operating temperature | 0°C to 70°C |
| Dimensions | 69.9 × 100 × 7 mm |
| Weight | 92.34 g |
| Operating vibration | 2.17G peak, 7800Hz |
| Non-operating vibration | 20G peak, 102,000Hz |
| MTBF | 2 million hours |
| Warranty | |
| Manufacturer warranty / support | Limited 5 years with free technical support |
| SKU | SEDC600ME-7680G |
| Brand | KINGSTON |
| Shipping Weight | 0.3000kg |
